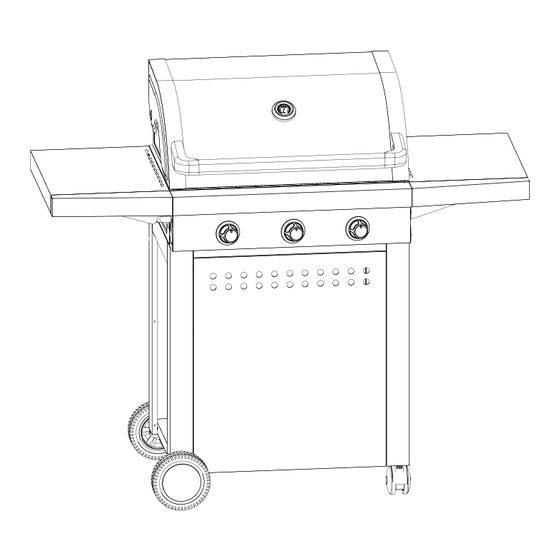

LG OUTDOOR LGSGM45BL Operating Manual

3 burner roaster

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY

Please read these instructions carefully and ensure that your barbecue is properly installed, assembled,

maintained and serviced in accordance with these instructions.

Failure to follow these instructions may result in serious injury and/or damage to property.

If you have any questions concerning the assembly or operation of this barbecue, please contact your local

John Lewis store.

Necessary Tools

Please check the pack contents before attempting to assemble this product. A full checklist of components is

given in this lea et. If any components are missing, please contact the retailer from whom you bought this

product.

This product takes approximately 40 MINUTES

The ttings pack contains SMALL ITEMS

Read this lea et in full before commencing assembly

3 Burner Roaster

LGCL30SSBL

to assemble with 2 PEOPLE

which should be KEPT AWAY FROM YOUNG CHILDREN

Table of Contents

Need help?

Do you have a question about the LGSGM45BL and is the answer not in the manual?

Questions and answers

Summary of Contents for LG OUTDOOR LGSGM45BL

Page 1 3 Burner Roaster LGCL30SSBL WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY Please read these instructions carefully and ensure that your barbecue is properly installed, assembled, maintained and serviced in accordance with these instructions. Failure to follow these instructions may result in serious injury and/or damage to property. If you have any questions concerning the assembly or operation of this barbecue, please contact your local John Lewis store.
Page 2: Table Of Contents
LGCL30SSBL Contents Warning Information Page 3 Location of your BBQ Page 3 Connecting to the gas cylinder Page 3 The hose and regulator assembly Page 3-4 Testing for leaks Page 4 Gas cylinder safety Page 4 What is Butane/Propane Page 4 Are all gas bottle gases the same Page 4 How is it different from natural gas...
Page 3: Warning Information
LGCL30SSBL - Do not store or use petrol or other ﬂammable vapours and liquids WARNING INFORMATION near the bbq - Read this Operating Manual before use - Do not store empty or full spare gas cylinders under or near the bbq - Ensure there is adequate clearance away from ﬂammable materials - Keep the gas hose and any electrical cord away from hot surfaces - This bbq is only to be used outdoors...
Page 4: Testing For Leaks
LGCL30SSBL SECURING THE HOSE AND REGULATOR ASSEMBLY TESTING FOR LEAKS - DO THIS BEFORE USING YOUR BBQ Type A) Screw on hose connection (Fig. 4) NOTE - DO NOT test for gas leaks with an open ﬂame. If - The bbq’s manifold connection is 1/4” Male Thread BSP you smell gas, turn off at the source.
Page 5: Using Your Bbq
LGCL30SSBL FIRST TIME USE OF BBQ PREHEATING - Before using the bbq for the rst time, it should be rst wiped with a Light the burners as previously directed, turn to low and allow the bbq mild soap and water solution to remove any dust to preheat for 2-5 minutes.
Page 6 LGCL30SSBL REMOVING BURNERS - Necessary care to be undertaken - Make sure the bbq has been switched off and has completely cooled down off position and the gas - Ensure all gas control knobs are set to the cylinder has been turned off - Lift the grills off the bbq as shown in (Fig.14) (Fig.
Page 7: Troubleshooting
LGCL30SSBL TROUBLESHOOTING IF BBQ FAILS TO OPERATE PROPERLY IF THERE IS A LEAK - Stop, turn off gas at its source and turn all burner controls to - Turn the gas cylinder off - Do not smoke - Ventilate the area to disperse any accumulated gas - Check gas supply connections - Check all connections - Repeat lighting procedure after waiting for ﬁve minutes for...
Page 8: Exploded Diagram
LGCL30SSBL Page 8...
Page 9: Parts List
LGCL30SSBL Part Number Part Name Quantity Supplier Code Hood SP-010-CL35SS-HOOD Hood Handle Bar SP-011-CL3-HHB Hood Handle Left Casing SP-011-CL-HHLC Hood Handle Right Casing SP-011-CL-HHRC f l e f l e Warming Cross Fire Assembly SP-060-CL3-XF Inner Control Panel SP-100-CL3-ICP 30-FSP SP-030-AGSUN-KNOB Trolley Front Panel SP-100-CL30BL-FP...
Page 10: Fittings List
LGCL30SSBL Fittings NOTE: ALL HARDWARE IS DRAWN IN FULL SCALE TO HELP IDENTIFY EACH PART X 14 X 18 M4x8 Screw M4x12 Screw M6x12 Screw Silver M6 Washer Tools required (not supplied) Cross Head Screwdriver (Philips) Spanner Prepare frame for assembly Lift hood, remove &...
Page 11: Assembly Instructions
LGCL30SSBL Fittings for this step STEP 1 M4x12 Screw Page 11...
Page 12 LGCL30SSBL Fittings for this step STEP 2 M4x12 Screw Page 12...
Page 13 LGCL30SSBL Fittings for this step STEP 3 M4x12 Screw Page 13...
Page 14 LGCL30SSBL STEP 4 Page 14...
Page 15 LGCL30SSBL STEP 5 Page 15...
Page 16 LGCL30SSBL Fittings for this step STEP 6 M6x12 Screw Page 16...
Page 17 LGCL30SSBL Fittings for this step STEP 7 Step 7A Step 7B Page 17...
Page 18 LGCL30SSBL Fittings for this step STEP 8 M4X12 Screw Page 18...
Page 19 LGCL30SSBL Fittings for this step STEP 9 X 10 M6 Washer M6X12 Screw Page 19...
Page 20 LGCL30SSBL STEP 10 Page 20...
Page 21 LGCL30SSBL Fittings for this step STEP 11 M4x8 Screw Silver Page 21...
Page 22 LGCL30SSBL STEP 12 Page 22...
Page 23 LGCL30SSBL Fittings for this step STEP 13 M4x8 Screw Silver Page 23...
Page 24 LGCL30SSBL STEP 14 Page 24...
Page 25 LGCL30SSBL STEP 15 1. On this model the Gas bottle should always be positioned to the left of the BBQ, NEVER on the Base Shelf 2. Side Gas hose should be connected using a spanner - see hose regulator instructions with this item For optimum performance please ensure that the barbecue is on a ﬂat and level surface before starting to cook.
Page 26: Leak Test
LGCL30SSBL Page 26...
Page 27 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Leisuregrow Products Ltd Dewmead Farm, New Inn Road, Hinxworth, Hertfordshire SG7 5HG, United Kingdom. Tel: +44 (0)1462 744500 E-mail:consumerservice@leisuregrow.com...
