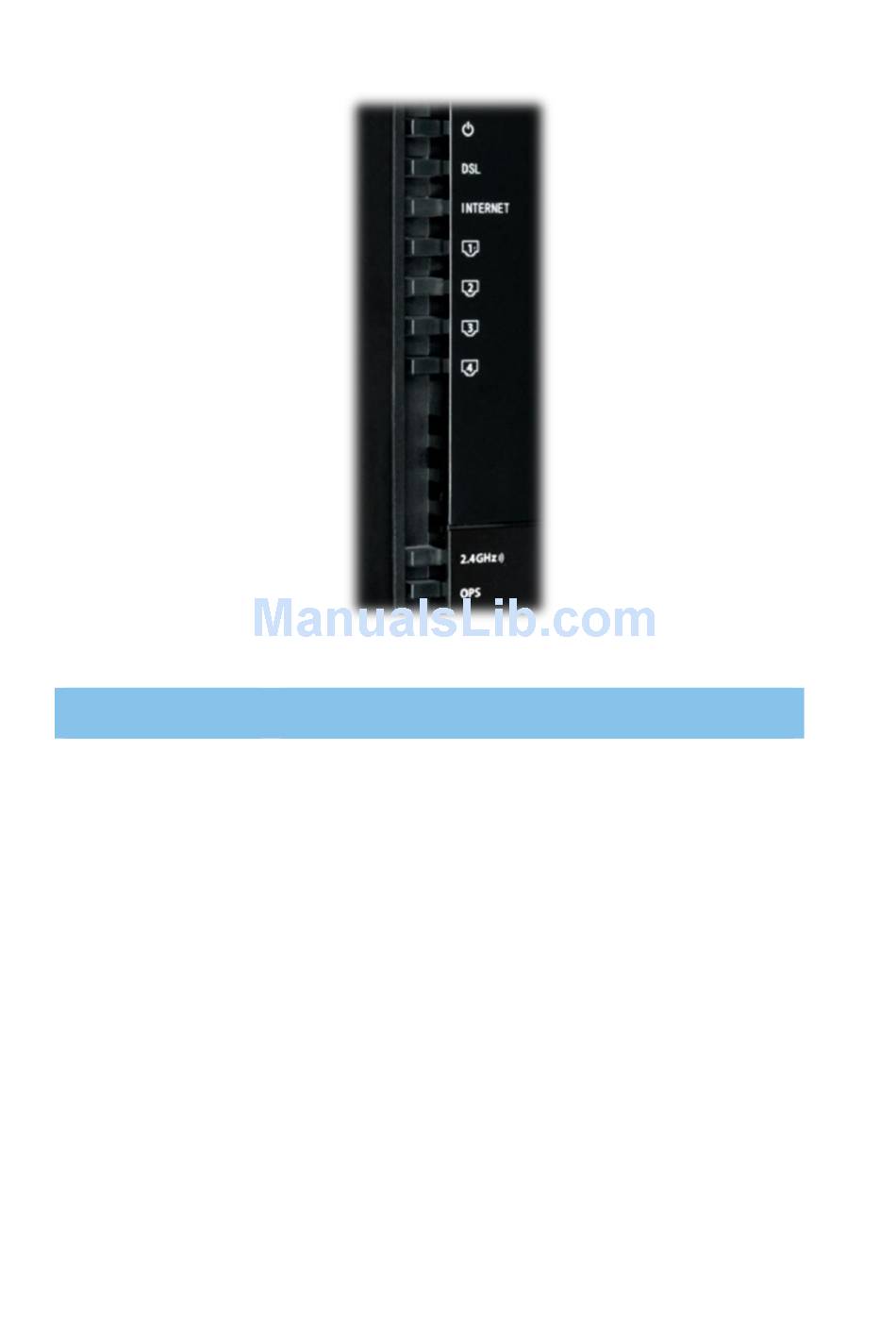

LED Definition
As shown from the top to the bottom.
Port
Power (Red)
DSL (Green)
Internet (Blue)
LAN (Blue)
LAN (Blue)
LAN (Blue)
LAN (Blue)
2.4GHz (Blue)
OPS (White)
Description
Shows the device is turned on.
Shows the DSL signal is synchronized.
Shows the Internet connection is active.
Shows the cable is connected.
Shows the cable is connected.
Shows the cable is connected.
Shows the cable is connected.
Shows 2.4GHz WiFi activity.
Shows OPS activity.
