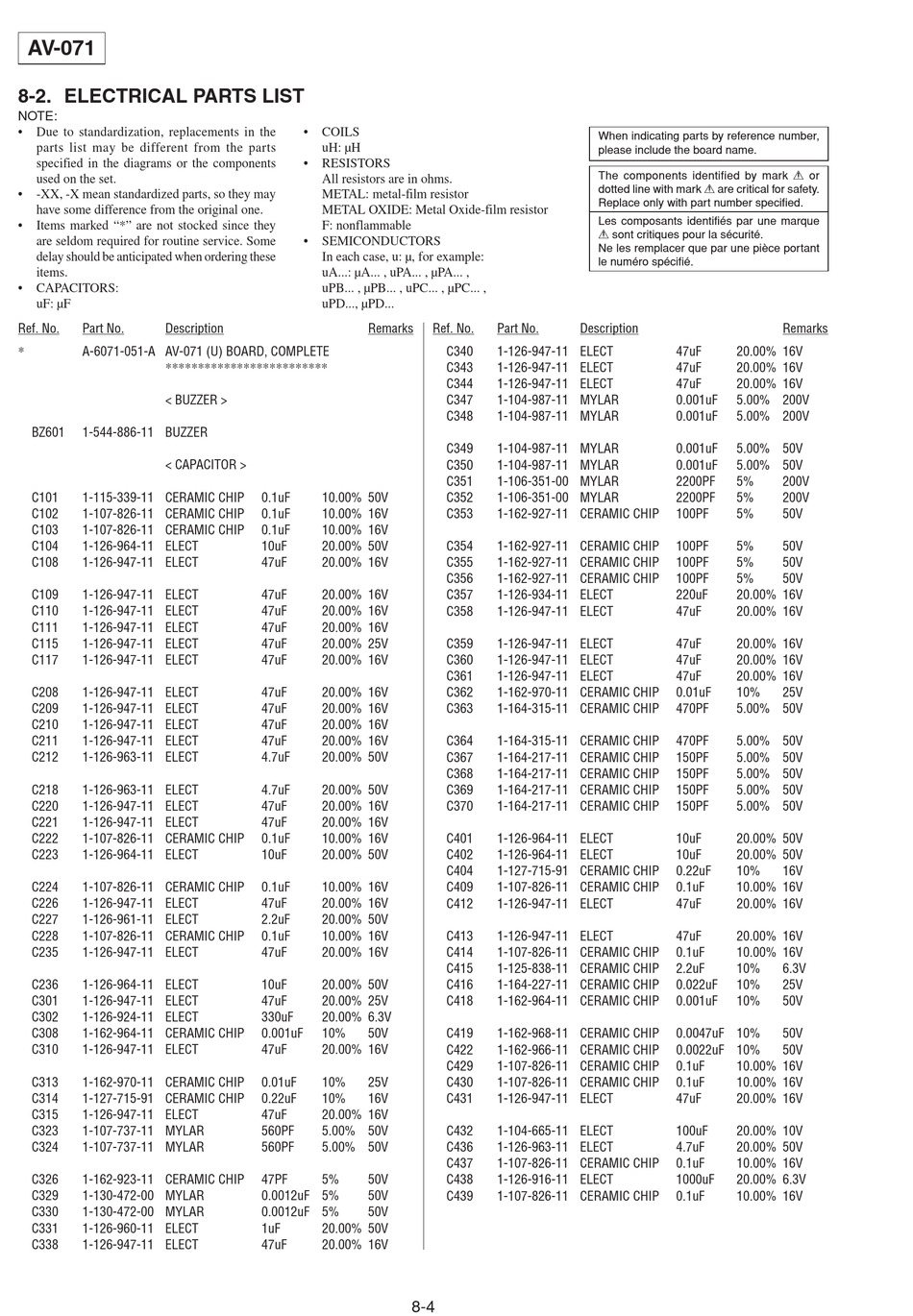

8-2. ELECTRICAL PARTS LIST

NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked "*" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• CAPACITORS:
uF: µF
Ref. No. Part No. Description
A-6071-051-A AV-071 (U) BOARD, COMPLETE
*
*************************
< BUZZER >
BZ601 1-544-886-11 BUZZER
< CAPACITOR >
C101 1-115-339-11 CERAMIC CHIP
C102 1-107-826-11 CERAMIC CHIP
C103 1-107-826-11 CERAMIC CHIP
C104 1-126-964-11 ELECT
C108 1-126-947-11 ELECT
C109 1-126-947-11 ELECT
C110 1-126-947-11 ELECT
C111 1-126-947-11 ELECT
C115 1-126-947-11 ELECT
C117 1-126-947-11 ELECT
C208 1-126-947-11 ELECT
C209 1-126-947-11 ELECT
C210 1-126-947-11 ELECT
C211 1-126-947-11 ELECT
C212 1-126-963-11 ELECT
C218 1-126-963-11 ELECT
C220 1-126-947-11 ELECT
C221 1-126-947-11 ELECT
C222 1-107-826-11 CERAMIC CHIP
C223 1-126-964-11 ELECT
C224 1-107-826-11 CERAMIC CHIP
C226 1-126-947-11 ELECT
C227 1-126-961-11 ELECT
C228 1-107-826-11 CERAMIC CHIP
C235 1-126-947-11 ELECT
C236 1-126-964-11 ELECT
C301 1-126-947-11 ELECT
C302 1-126-924-11 ELECT
C308 1-162-964-11 CERAMIC CHIP
C310 1-126-947-11 ELECT
C313 1-162-970-11 CERAMIC CHIP
C314 1-127-715-91 CERAMIC CHIP
C315 1-126-947-11 ELECT
C323 1-107-737-11 MYLAR
C324 1-107-737-11 MYLAR
C326 1-162-923-11 CERAMIC CHIP
C329 1-130-472-00 MYLAR
C330 1-130-472-00 MYLAR
C331 1-126-960-11 ELECT
C338 1-126-947-11 ELECT
• COILS
uH: µH
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
Remarks Ref. No.
0.1uF 10.00% 50V
0.1uF 10.00% 16V
0.1uF 10.00% 16V
10uF 20.00% 50V
47uF 20.00% 16V
47uF 20.00% 16V
47uF 20.00% 16V
47uF 20.00% 16V
47uF 20.00% 25V
47uF 20.00% 16V
47uF 20.00% 16V
47uF 20.00% 16V
47uF 20.00% 16V
47uF 20.00% 16V
4.7uF 20.00% 50V
4.7uF 20.00% 50V
47uF 20.00% 16V
47uF 20.00% 16V
0.1uF 10.00% 16V
10uF 20.00% 50V
0.1uF 10.00% 16V
47uF 20.00% 16V
2.2uF 20.00% 50V
0.1uF 10.00% 16V
47uF 20.00% 16V
10uF 20.00% 50V
47uF 20.00% 25V
330uF 20.00% 6.3V
0.001uF 10% 50V
47uF 20.00% 16V
0.01uF 10% 25V
0.22uF 10% 16V
47uF 20.00% 16V
560PF 5.00% 50V
560PF 5.00% 50V
47PF 5% 50V
0.0012uF 5% 50V
0.0012uF 5% 50V
1uF 20.00% 50V
47uF 20.00% 16V
8-4
When indicating parts by reference number,
please include the board name.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Part No. Description
C340 1-126-947-11 ELECT
C343 1-126-947-11 ELECT
C344 1-126-947-11 ELECT
C347 1-104-987-11 MYLAR
C348 1-104-987-11 MYLAR
C349 1-104-987-11 MYLAR
C350 1-104-987-11 MYLAR
C351 1-106-351-00 MYLAR
C352 1-106-351-00 MYLAR
C353 1-162-927-11 CERAMIC CHIP
C354 1-162-927-11 CERAMIC CHIP
C355 1-162-927-11 CERAMIC CHIP
C356 1-162-927-11 CERAMIC CHIP
C357 1-126-934-11 ELECT
C358 1-126-947-11 ELECT
C359 1-126-947-11 ELECT
C360 1-126-947-11 ELECT
C361 1-126-947-11 ELECT
C362 1-162-970-11 CERAMIC CHIP
C363 1-164-315-11 CERAMIC CHIP
C364 1-164-315-11 CERAMIC CHIP
C367 1-164-217-11 CERAMIC CHIP
C368 1-164-217-11 CERAMIC CHIP
C369 1-164-217-11 CERAMIC CHIP
C370 1-164-217-11 CERAMIC CHIP
C401 1-126-964-11 ELECT
C402 1-126-964-11 ELECT
C404 1-127-715-91 CERAMIC CHIP
C409 1-107-826-11 CERAMIC CHIP
C412 1-126-947-11 ELECT
C413 1-126-947-11 ELECT
C414 1-107-826-11 CERAMIC CHIP
C415 1-125-838-11 CERAMIC CHIP
C416 1-164-227-11 CERAMIC CHIP
C418 1-162-964-11 CERAMIC CHIP
C419 1-162-968-11 CERAMIC CHIP
C422 1-162-966-11 CERAMIC CHIP
C429 1-107-826-11 CERAMIC CHIP
C430 1-107-826-11 CERAMIC CHIP
C431 1-126-947-11 ELECT
C432 1-104-665-11 ELECT
C436 1-126-963-11 ELECT
C437 1-107-826-11 CERAMIC CHIP
C438 1-126-916-11 ELECT
C439 1-107-826-11 CERAMIC CHIP
Remarks
47uF 20.00% 16V
47uF 20.00% 16V
47uF 20.00% 16V
0.001uF 5.00% 200V
0.001uF 5.00% 200V
0.001uF 5.00% 50V
0.001uF 5.00% 50V
2200PF 5% 200V
2200PF 5% 200V
100PF 5% 50V
100PF 5% 50V
100PF 5% 50V
100PF 5% 50V
220uF 20.00% 16V
47uF 20.00% 16V
47uF 20.00% 16V
47uF 20.00% 16V
47uF 20.00% 16V
0.01uF 10% 25V
470PF 5.00% 50V
470PF 5.00% 50V
150PF 5.00% 50V
150PF 5.00% 50V
150PF 5.00% 50V
150PF 5.00% 50V
10uF 20.00% 50V
10uF 20.00% 50V
0.22uF 10% 16V
0.1uF 10.00% 16V
47uF 20.00% 16V
47uF 20.00% 16V
0.1uF 10.00% 16V
2.2uF 10% 6.3V
0.022uF 10% 25V
0.001uF 10% 50V
0.0047uF 10% 50V
0.0022uF 10% 50V
0.1uF 10.00% 16V
0.1uF 10.00% 16V
47uF 20.00% 16V
100uF 20.00% 10V
4.7uF 20.00% 50V
0.1uF 10.00% 16V
1000uF 20.00% 6.3V
0.1uF 10.00% 16V
