Summary of Contents for Goldline GOLDLINE-50

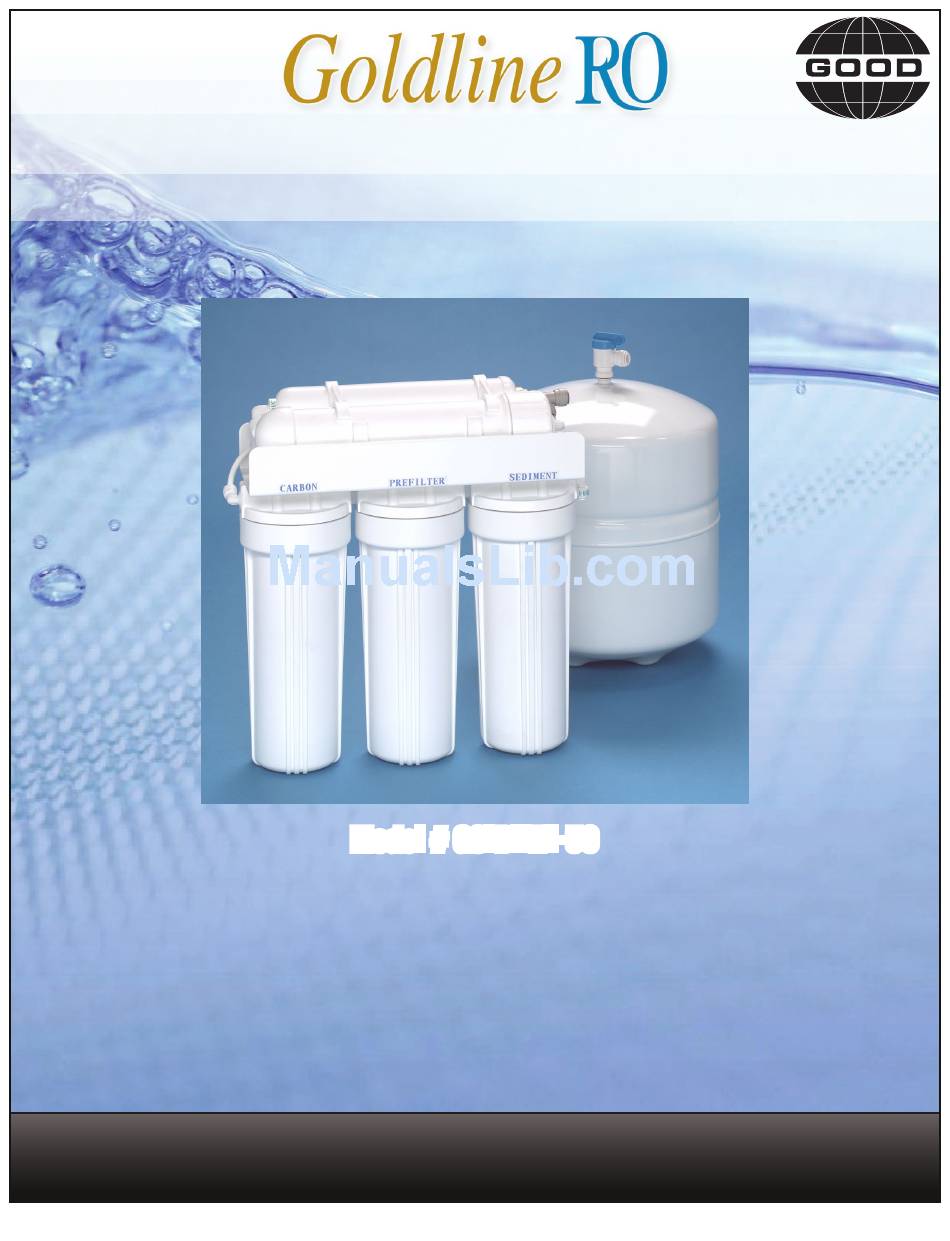

- Page 1 Good Water Warehouse Inc. 1700 E Walnut Ave Fullerton CA 92831 (714) 441-2893 (714) 441-0525 FAX Reverse Osmosis System Installation & Service Guide Model # GOLDLINE-50 Please read this manual carefully before attempting installation.

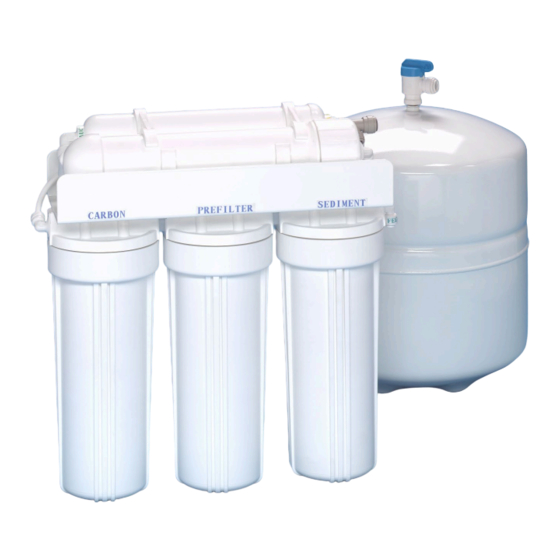

- Page 2 GoldLine Manual Introduction The Goldline reverse osmosis drinking water system is designed for easy installation and maintenance. You will insure a successful installation as well as reliable operation by carefully reading this manual and following the operational guidelines. Please note that routine maintenance is essential to the longevity and performance of the system.
- Page 3 Starting Your Installation Starting Your Installation Preparation Fittings and Tubing Preparation Fittings and Tubing Check the following list of components to ensure that all Easy Fit fittings are used throughout the system with the Check the following list of components to ensure that all Easy Fit fittings are used throughout the system with the parts are packed with your system.
- Page 4 Installation Installation Supply Feed Installation Supply Feed Installation (A) Flex Line: Loosen nut and separate cold water riser Using the opening in the drain outlet saddle as a guide, (A) Flex Line: Loosen nut and separate cold water riser Using the opening in the drain outlet saddle as a guide, tube from faucet shank.
- Page 5 Installation - Product Water Faucet Installation - Product Water Faucet Drilling the Faucet Hole Stainless Steel Sink Drilling the Faucet Hole Stainless Steel Sink The product water faucet may be installed on any flat Make a small indent to mark the desired drilling location The product water faucet may be installed on any flat Make a small indent to mark the desired drilling location surface at least 2”...
- Page 6 Installation Diagram & Tubing Guidelines Goldline Installation Diagram Long Reach Drinking Faucet 3/8” Black tubing from Air Gap to Drain TDS Monitor (optional) Cold water feed supply Drain Connector 3/8” Blue tubing to faucet 3/8” White Stage 5: Carbon 1/4” Orange tubing...
- Page 7 Good Water Warehouse Inc. 1700 E. Walnut Ave. Fullerton, CA, 92831 Phone: 714-441-2893 Fax: 714-441-0525 Goldline-50 WHITE 1/4" WHITE WHITE BLACK ORANGE BLACK TDS Monitor (optional) Please Call Your Local Water Professional or Good Water Warehouse For Parts Replacement Please Call Your Local Water Professional For Parts Replacement Please Call Your Local Water Professional or Good Water Warehouse For Parts Replacement 14.
-
Page 8: Troubleshooting
Activation, Care, & Troubleshooting Activating the System For the First Time Make sure all water supply/drain lines are secure and free from leakage. Slowly turn the saddle valve counterclockwise until fully open. Check stem seal for leakage. If necessary tighten stem nut lightly. Turn storage tank valve one quarter turn counterclockwise to open the valve (the handle should be in line with the tubing as it enters the connection). -
Page 9: Conditions Of Warranty
Good Water Warehouse assumes no warranty liability in connection with this reverse osmosis system other than as specified herein. Good Water Warehouse shall not be liable for consequential damages of any kind or nature due to the use of Goldline-50 product. Good Water Warehouse Inc. will provide warranty service under the following conditions: 1) Contact your local dealer who will obtain return authorization instructions.
