Sirus CDXM-3000 User Manual

Hide thumbs

Advertisement

Table of Contents

User manual
CDXM-3000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDXM-3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sirus CDXM-3000

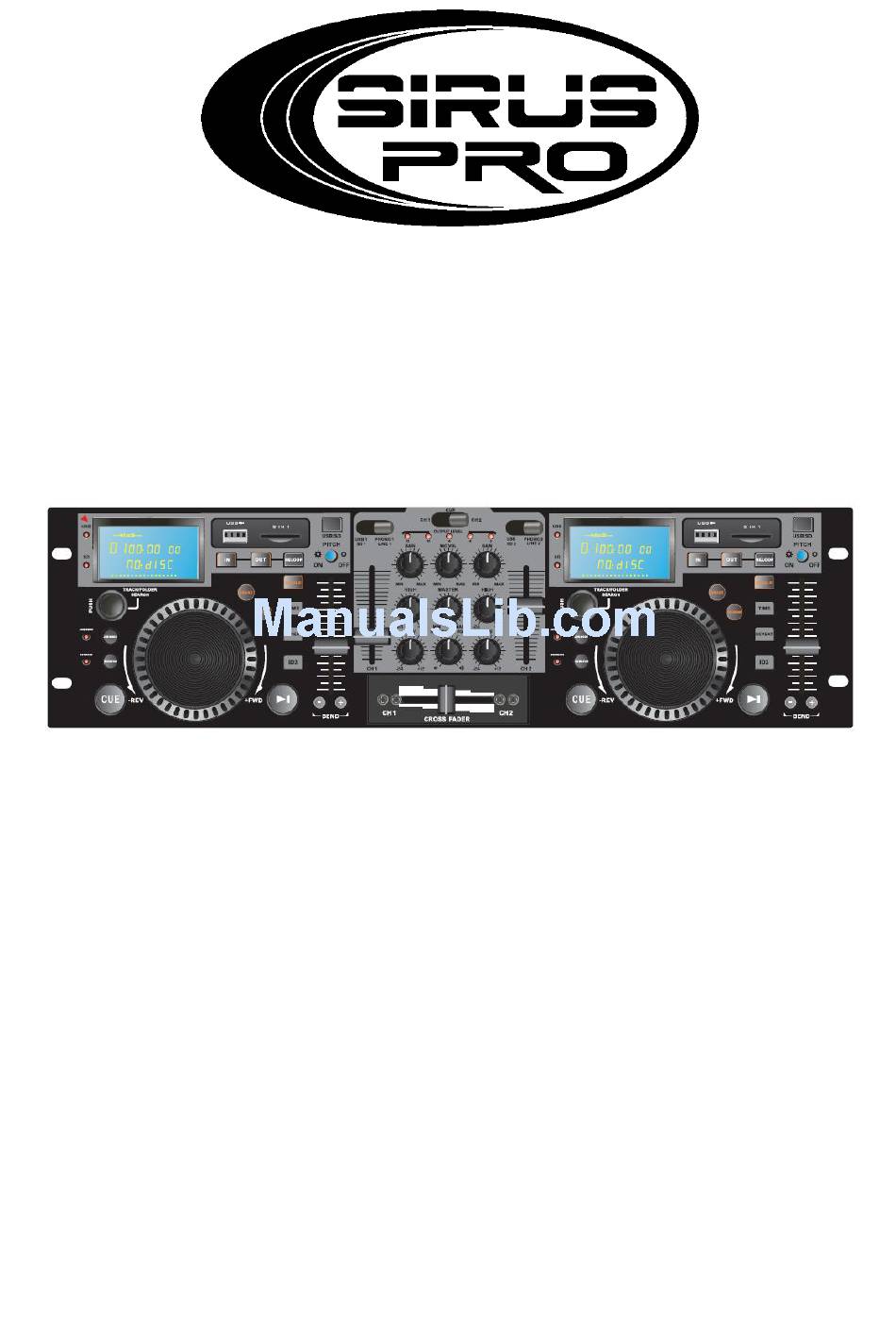

  • Page 1 User manual CDXM-3000...

  • Page 2: Table Of Contents

    Table of content Safety instructions ........................... 3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Technical data ..........................4 Controller function ........................... 5 Mixing Console Function ......................... 8 Connection............................9 2 / 10...

  • Page 3: Safety Instructions

    1. Safety instructions This device is suitable for indoor use only. All modifications to the device will void the warranty. Repairs are to carry out by skilled personnel only. Use only fuses of the same type and original parts as spare parts. Protect the unit from rain and humidity to avoid fire and electric shocks.

  • Page 4: Technical Data

    Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. Make sure the electrical connection is carried out by qualified personnel. All electrical and mechanical connections have to be carried out according to the European safety standards.

  • Page 5: Controller Function

    3. Controller function 1. JOG & SHUTTLE WHEELS Search: Touch the dial and rotate it to navigate through the track. Press the jog mode button and the light is illuminated first. Pitch: While playing, rotate the dial to adjust the pitch bend. Cue point: In pause state, rotate the dial to navigate through the track and once you enter a desired point press the Play/Pause button.
  • Page 6 9. SCRATCH MODE When the (10) is illuminated the wheel is in SCRATCH mode, you may press the SCRATCH button to exit SCRATCH mode 10. When you enter the JOG work mode the lamp lights up. 11. FOLDER/TRACK SEARCH Allows you to navigate through folders or tracks similarly in either USB or CD mode. When navigating through a standard CD, turn the rotary to the right to advance the selection or turn the rotary to the left to decrease the selection.
  • Page 7 26. DSP/BRAKE In play mode push the brake button at first and then push Play/Pause button, the operation changes slowly from play to pause. Push the Play/Pause button again to cancel this feature. 27. SINGLE Press this button to switch between the SINGLE and CONTINUE play mode. The selected mode is indicated on the LCD.

  • Page 8: Mixing Console Function

    4. Mixing Console Function 32. LED METER Indicates the master output level 33./41. CH1&CH2 GAIN CONTROL Adjusts CH1&CH2 level 34./40. HIGH FADER 1-2 Adjust CH1&CH2 equalization of high 35./39. LOW FADER 1-2 Adjust CH1&CH2 equalization of low 36./38. INPUT FADER Controls individual source levels for CH1-2 in the mix 37.

  • Page 9: Connection

    44. HEADPHONE JACKS This is used to connect headphones for audio monitoring. 45. DJ MIC For plugging in a XLR type microphone. 5. Connection 46. AC CORD Use this cable to connect the AC mains power to the unit 47. POWER BUTTON Press the power switch to turn on the unit.
  • Page 10 Importer: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 10 / 10...
