SOCCER WATCH

INSTRUCTION MANUAL

FEATURES:-

Fig.1

• hour, minute, second, month, date, weekday, and alarm (user option day alarm)

• auto calendar

• soccer timer and stoppage timer to keep track of stoppage time

• presettable timer with range 99minutes

• electro-luminescent backlighted LCD

• 12/24 hour display and month/day reversal by user option

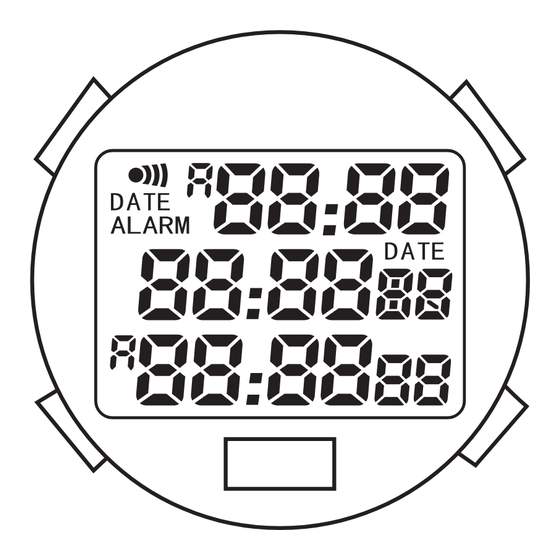

The normal display is as shown in Fig. 1. In this display, the hour, minute and second are

shown on the lower row. The month, date and weekday are shown on the middle row and

the alarm hour and minute are shown on the top row.

When the watch is in the NORMAL display, pressing and holding B for 2 seconds allow us

to go into the TIME SETTING mode with the SEC digits flashing. Pressing A will reset the

SEC to 00 and start again right away. Press C to select sequentially HOUR, MINUTE,

YEAR, MONTH, DATE, and 12/24HR. When the digits are selected, they flash, press A to

advance these selected digits. When the setting is completed, press B to complete the

TIME SETTING and the display will return to the NORMAL DISPLAY. (When the 12/24HR

is set to 12 hr, the time will be displayed in 12 hour system with the middle row displayed in

MONTH, DATE and WEEKDAY. When it is set to 24hr, the time will be displayed in 24 hour

system with the middle row displayed in DATE, MONTH and WEEKDAY, as shown in

Fig.2)

Table of Contents

Do you have a question about the ULTRAK 510 and is the answer not in the manual?

Page 1 SOCCER WATCH SOCCER WATCH INSTRUCTION MANUAL INSTRUCTION MANUAL FEATURES:- FEATURES:- Fig.1 • hour, minute, second, month, date, weekday, and alarm (user option day alarm) • auto calendar • soccer timer and stoppage timer to keep track of stoppage time • presettable timer with range 99minutes •...
Page 2 Fig. 2. 24hr system ALARM ALARM From NORMAL DISPLAY, press C to display the ALARM time, as shown in Fig.3. Fig.3. Alarm Time Display Press and hold B for 2 seconds to go into the ALARM SETTING mode with the ALARM HOUR digits flashing.
Page 3 In the SOCCER TIMER mode, the hour, minute and second are displayed on the lower row, the SOCCER TIMER on the middle row and the STOPPAGE TIMER on the upper row. The SOCCER TIMER is preset to 45 minutes (can be set to other values by pressing and holding B for 2 seconds when the timer is not counting down.).
Page 4 *TEMPERATURE TEMPERATURE Do not leave your stopwatch under direct sunlight or in very high temperatures for a long time, or the display may become black. Do not leave your stopwatch in very low tempera- ture as this may cause a slight time loss or gain and the change of digits becomes slow. In both cases the above conditions will be corrected when the stopwatch returns to normal temperature.
