Summary of Contents for Curtis DVD7015UK

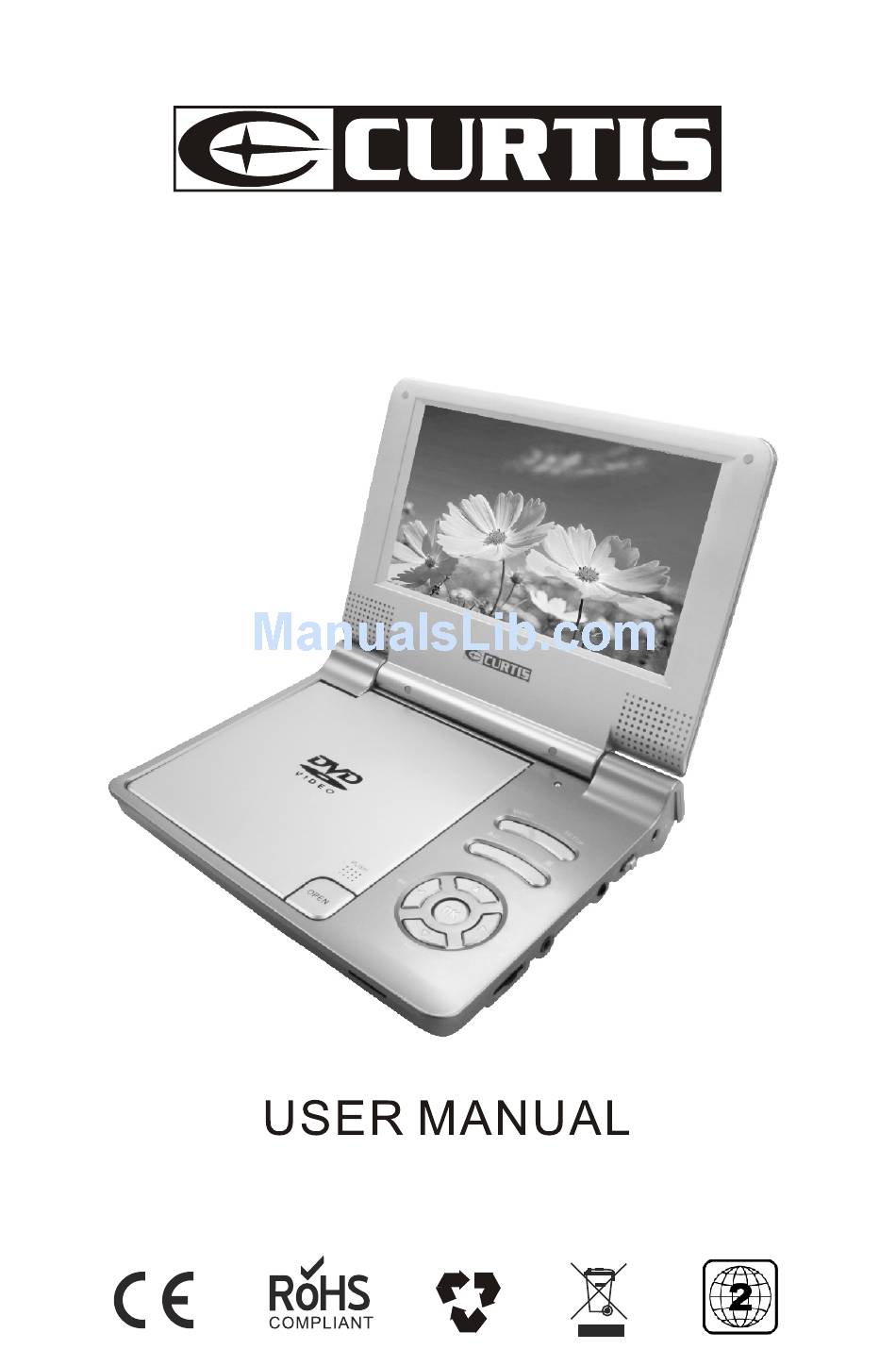

- Page 1 DVD7015UK...
-
Page 2: Table Of Contents
A. Introduction B. Cautions and Warnings C. Important safety instructions D. Contents E. Powering and installation F. Controls,Indicators, and Connectors G. Loading and Playing a Disc H.Setup I. Basic Operation J. Playing Audio CDS K. Playing MP3 Discs L. Playing JPG files M. -
Page 3: Introduction
A. Introduction Thank you for choosing our portable DVD player. The main features include a 7" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a DVD player. The unit applies the latest state of art electronics and is designed for use in hotels, offices or homes. The unit is constructed to provide years of reliable, trouble-free service, and is compact to take it with you anywhere and is designed for quick and easy installation. -
Page 4: Contents
Clean the disc by wiping the disc from the center out with a cleaning cloth. Remove the disc from the unit and store it in its case after playing. Some playback operations of discs may be intentionally fixed by software producers. Since this unit plays discs according to the disc contents the software producers designed, some playback features may not be available. - Page 5 1.LCD Panel Shut Off Switch 9.OPEN 2.SETUP 10.DC IN 9-12V 3.MENU 11.POWER ON/OFF SWITCH 4.STOP 12.AV OUT 5.PLAY/PAUSE 13.HEADPHONE BUTTON 14.VOLUME BUTTON 8.OK BUTTON 2.Controls 1.Number buttons 9.Play/Pause 2.Zoom(To zoom in/out picture) 10.Stop 3.Title 11.Slow 4.Audio 12.Subtitle 5.Setup 13.Menu 6.Enter 14.A-B 7.Previous/Next(when playing) 15.Angle...
-
Page 6: Loading And Playing A Disc
G. Loading and Playing a Disc a. After connecting power to the unit, turn on DVD player with the ON/OFF switch. The power indicator will light. b. Open the disc tray by "OPEN" , and place a disc into the tray with the label side facing c. - Page 7 2) Select Video Quality Setup by using the button, press OK to enter the video quality setup page. -- Video setup page -- -- Video setup page -- Panel Quality Brightness Contrast Saturation Go To Video Setup Page Go To Video Setup Page a).Select 'Contrast' by using the button, then press OK.
- Page 8 Note: The default password is 8888. 4).With no disc inside the player or open operation, select 'Preference Page' using the button, then press OK to enter the preference page. a. Select 'Audio' using the UP/DOWN button, then press to enter the submenu.
- Page 9 d. Select 'Parental' using the button, then press to enter the submenu. -- Preference Page -- 1 KID SAFE Audio Subtitle 3 PG 4 PG-13 Disc Menu 5 PG-R Parental Default 7 NC-17 8 ADULT Set Parental Control Select the parental level you desire using the button for discs with lock-out function or multiple rating levels.
-
Page 10: Basic Operation
I. Basic Operation ON/OFF Turn the unit on/off OPEN Remove/load the disc PLAY Start Play/Execute item or setting PAUSE Still Picture STOP (1 time) Stop at the present playing point / (2 times) Stop playing ON the remote) Go to the next chapter, track or scene during play back(also used for Menu Navigation) ON the remote) - Page 11 SUBTITLE During disc playback press 'SUBTITLE' to select the subtitle language you desire*, with the current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) displayed. If there are multiple languages press 'SUBTITLE' again to select another subtitle language. To turn subtitles OFF, press the 'SUBTITLE' button until 'Subtitle Off' is displayed.
- Page 12 2X.(2)Press "zoom" at the second time ,the picture will be enlarged 3X.(3) Press "zoom" at the 3rd time, the picture will be enlarged 4X.(4)Press "zoom" repeatedly, the picture will zoom out, press “zoom” at the seventh time, the picture will return to the normal size. A-B REPEAT a.
- Page 13 REPEAT a. During playback press 'REPEAT' once to repeatedly play the current chapter. Chapter b. During playback press 'REPEAT' again to repeatedly play the current title. Title c. During playback press 'REPEAT' a 3rd time to repeat all Chapters and Titles. D.
-
Page 14: Playing Audio Cds
J. Playing Audio CDS When playing an audio CD press the OSD button on the remote to view time information. The options below show you what information is available using this function. a. The current track and playing time of that track will be displayed on the screen. Single Elapsed Track 1/24... -
Page 15: Playing Mp3 Discs
USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: Track- repeats the track that is playing. All- repeats the disc that is playing. As you toggle through the options, the repeat option changes. The selected repeat option loops repeatedly until you turn it off. -
Page 16: Playing Jpg Files
L. Playing JPG files 1) Load the JPG Disc into tray. 2) The pictures will be played automatically ,press number buttons to select picture to view. Press “ MENU” or “ STOP”, pictures will be display in thumbnail mode. 3) When you browse the JPG file, press "OSD ", there will be different refresh mode below. -
Page 17: Connecting To Tv Or Another Monitor
M. Connecting to a TV or another monitor You can also connect the DVD player to a TV to enjoy high quality stereo sound and picture on another monitor. DC IN 9-12V N. Rechargeable Battery Use The player utilizes long-life Li polymer battery, built inside the unit, for portable power supply. -
Page 18: Specifications
O. Specifications Compatible DISC: VCD/DVD/CD/MP3 Signal system: PAL/NTSC Panel size: 7 inch Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4Vrms/10kOhm Audio S/N: Better than 80 dB Dynamic range : Better than 85 dB Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9-12V Power consumption: 10 W...
