Summary of Contents for Paslode FN1665

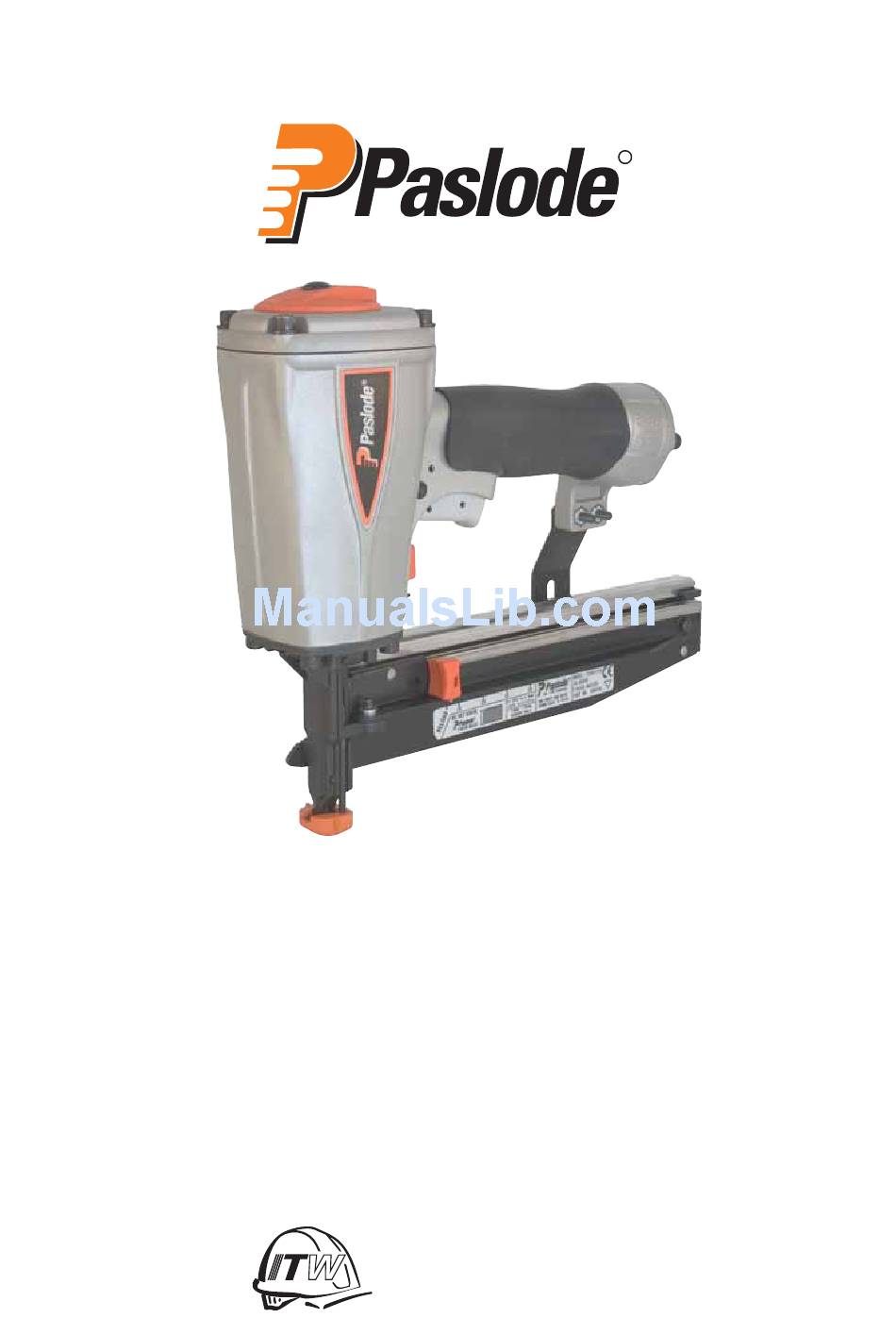

- Page 1 FN1665 Operating Instructions CONSTRUCTION PRODUCTS...
-
Page 2: Daily Maintenance
Unpacking the Nailer Check contents: Finsh Nail Tool Safety Glasses Operating Instructions General Safety Operating Manual Daily Maintenance Check for: 1. Smooth safety yoke movement 2. Trigger movement 3. Excessively worn or cracked handle 4. All screws and bolts are tight 16 –... -
Page 3: Check Contents
Inclui Bradapparaat Máquina para prego “T” Veiligheidsbril Oculos de segurança Gebruikershandleiding Manual de instruções Algemene veiligheidsvoorschriften Paslode Manual Geral de Segurança da Paslode Controllare il contenuto: Check indholdet: Groppinatrice Dykkerverktøl Occhiali antinfortunistici Sikkerheds briller Betjeningsvejledning Libretto di uso e manutenzione... -
Page 4: Prepare For Use
Prepare for use User settings Depth control... - Page 5 Prepare for use User settings Depth control Vor dem Gebrauch Grundeinstellungen vornehmen Tiefeneinstellung mise en service installation réglage de profondeur Preparacion para el uso Ajuste de la maquina Control de profundidad Voorbereiding ingebruikname Gebruikersinstellingen Diepteregeling Gør klar til brug: Personlig indstilling Dybde regulering Före användning: Ställ in verktyget för användning...
-
Page 6: Clearing A Jam
Clearing a jam Always disconnect from compressed air supply before servicing, adjusting the tool, or clearing a jam. Take the tool out of service immediately and have it serviced by an authorised service engineer... - Page 7 Clearing a jam Always disconnect from compressed air supply Take tool out of service immediately and have it before servicing, adjusting the tool, or clearing a jam. serviced by an authorised service engineer. Lösen eines verklemmten Nagels Die Druckluftzufuhr vor Einstellung bzw. Reparatur Gerät sofort aus dem Verkehr ziehen und nur von des Geräts stets unterbrechen.
- Page 8 DECLARATION OF CONFORMITY We declare that this product is in conformity with the following standards or other normative documents. EN 292-1:1991; EN 292-2:1995; EN349:1993; EN 792-13:20001 Following the provision of EEC Directives KONFORMITÄTSERKLÄRUNG Wir erklären, dass dieses Produkt mit den folgenden Normen oder normativen Dokumenten übereinstimmt.
- Page 9 PA, 1s, 1m Vibrations-werte Valeurs de vibration Vibration Value A hwz 2,95m/s² Normative Dokumente / Documents Normatifs / Normative Documents EN 12549: 1999/2, EN ISO 8662-11: 1999 ITW Paslode – van Heemskerckweg 5; 5928 RB Venlo; The Netherlands. Erik Mul – Design...
- Page 10 FN1665 500970 Finish Nailer Cap Assembly #500974 Main Valve Assembly #404188 OPTIONAL: Bump Trigger Assembly #501048 Piston Assembly #501583 82 83...
- Page 11 Ref. No. Part No. Description Ref. No. Part No. Description 501043 T.H.S.C.S. 1/4-20 x 1/2 501143 Intermediate W.C.E. 500956 Cap Diffuser 500766 Guide Block 501299 S.H.C.S. 1/4-20 x 1 071297 Roll Pin 1/8 x 1-1/8 403582 Jam Nut 500840 W.C.E. Assembly 500958 404180 Probe Tip...
- Page 12 EN792-13 European Safety Standard For safe operation of Paslode pneumatic tools, use only those fasteners identifi ed in the operating manual. EN792-13 European Safety Standard...
