Summary of Contents for Quantum QTM-8000

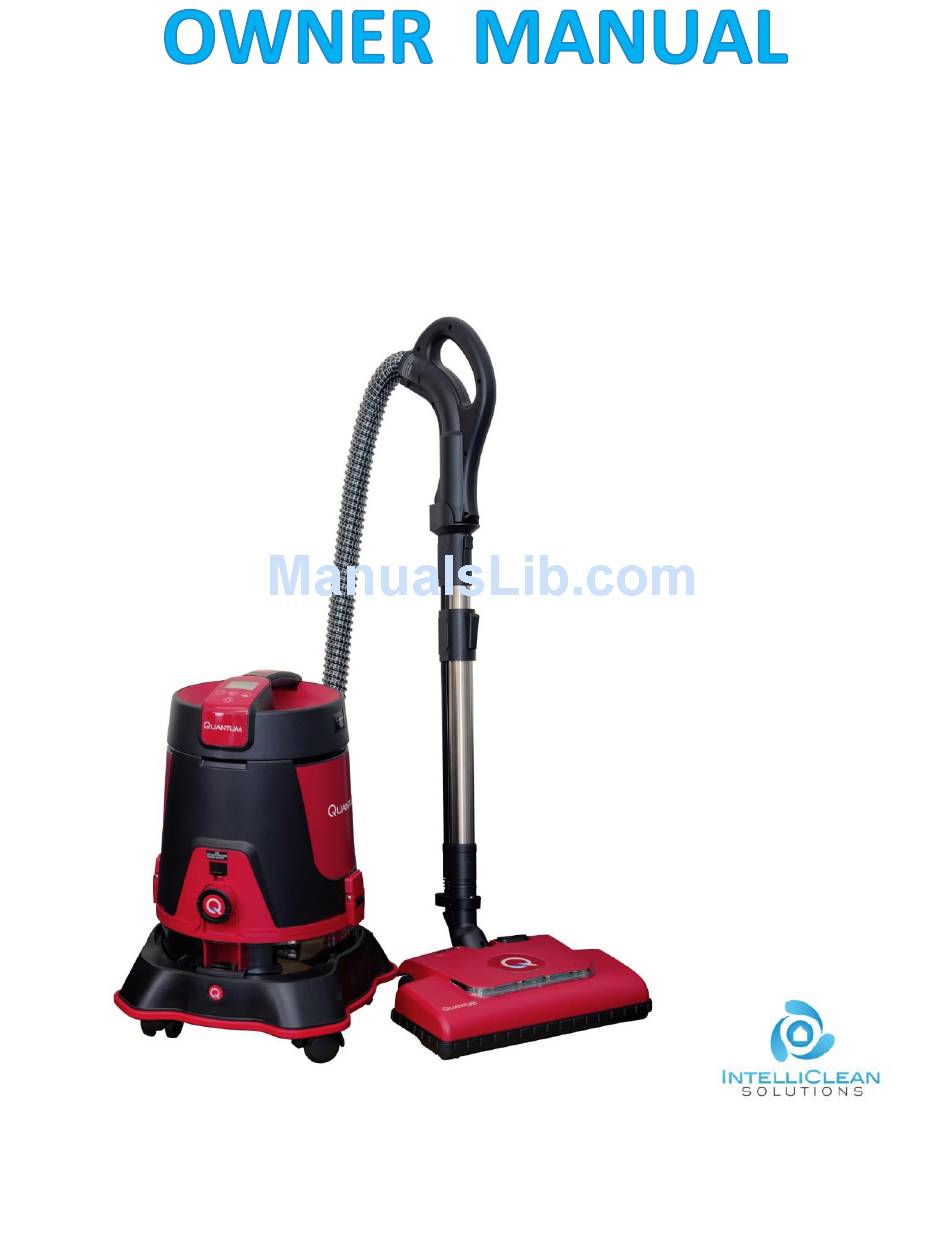

  • Page 1 QUANTUM (QTM-8000) Home Care products...
  • Page 2 (soot or ashes) and powdery substances like (ceramic, drywall, or plaster dust). Do not use the Quantum to pick up or in the vicinity of any volatile or toxic materials.
  • Page 3 Authorized Quantum Service Center for inspection. 5.) Do not clean the unit or unplug the hose until the Quantum is switched off and the plug is removed from the back of the Quantum or wall outlet.
  • Page 4 See instructions for servicing of double-insulation appliances, on-line at: QuantumVac.com 14.) The Quantum is equipped with an interlock switch that prevents the unit from operating if the water basin is not properly latched, DO NOT ATTEMPT TO OVERRIDE THIS SAFETY FEATURE.
  • Page 5 17.) If the cord is damaged, turn off the power switch on the Quantum and unplug the unit. Power cord must be replaced by an Authorized Quantum service technician. 18.) Do not run power cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings.
  • Page 6 WHAT’S IN THE BOX: 1.) Main unit (shown below with water basin and transport dolly already attached) 2.) Water Basin 3.) Transport Dolly P a g e R e v . 1...
  • Page 7 4.) Upholstery Brush 5.) Dusting Brush 6.) Inflator Tool Crevice tool 8.) Water basin cleaning brush 9.) Separator cleaning brush P a g e R e v . 1...
  • Page 8 10.) NON-ELECTRIC Hose 11.) NON-ELECTRIC Curved Stainless Steel Wand, Floor Brush Head and NON-ELECTRIC Telescoping Stainless Steel Wand. (Curved wand and Floor brush may come as 2 separate pcs.) P a g e R e v . 1...
  • Page 9 12.) ELECTRIC Power Hose. DRY USE ONLY. 13.) ELECTRIC Telescoping Wand. DRY USE ONLY. P a g e R e v . 1...
  • Page 10 14.) ELECTRIC Power Head (Motorized) with Rotating brush & Power Steering. DRY USE ONLY. 15.) ELECTRIC Power cord P a g e R e v . 1...
  • Page 11 OPTIONAL - Purchase: d. ELECTRIC Mini-Power Head P/N QTM8000-2. Good for Upholstery and Pet Hair. Go to QuantumVac.com to Order. This ELECTRIC Mini-Power Head is for DRY USE ONLY. 10 | P a g e R e v . 1...
  • Page 12 MAX Water line is printed on the water basin. ** The Quantum must always be operated with a properly filled water basin. Never use dry. 11 | P a g e R e v .
  • Page 13 2.) ATTACHING THE QUANTUM TO THE WATER BASIN: Lift the Quantum, align opening and set the Quantum on top of the water basin nozzle. latch on each side Latch both sides of the main unit to the water basin. NOTE: If latches are hard to latch, take unit back off and realign.
  • Page 14 3.) ATTACHING THE QUANTUM TO THE TRANSPORT DOLLY. Simply place the Quantum into the transport dolly. You can place the Quantum facing in any direction, whatever is good for you. The Quantum can also be removed/lifted from the transport dolly with ease.
  • Page 15 Connect the Quantum Detachable power cord to the back of the unit and push it into the power inlet of the Quantum until it clicks in place. Plug the other end of the power cord into the wall outlet power source.
  • Page 16 “what’s in the box”. a. Attach the electric hose by pressing hose coupling into the air inlet opening of the Quantum until hose end electric connection clicks and locks into place. To remove, squeeze red coupling latch/button and pull hose out of the air/power inlet.
  • Page 17 b. Attach the other end of the electric hose to the electric telescoping wand 16 | P a g e R e v . 1...
  • Page 18 c. Then attach the electric wand to the electric power head. 17 | P a g e R e v . 1...
  • Page 19 6.) POWERING UP THE QUANTUM CONTROL PANEL Power ON/OFF Timer – Aromatize LOW speed HIGH speed 15 minutes – 2 hours. Air Cleaning Vacuum setting and Air Purifying 18 | P a g e R e v . 1...
  • Page 20 Touch/press the QUANTUM power ON switch. Wait for display to be ready b. Select speed to HIGH (vacuum) mode as shown. 19 | P a g e R e v . 1...
  • Page 21 Guide the power head slowly back and forth over carpet with free and easy strokes. Let the power head and Quantum do the work for you. ** If the power head tangles with loose carpeting, it may stop.
  • Page 22 WHEN YOU ARE FINSHED VACUUMING Note: ALWAYS EMPTY & CLEAN THE WATER BASIN Immediately after using the Quantum, remove the water basin and dump out the dirty water through the top opening or the air intake cavity. Always empty after each use as shown.
  • Page 23 OWNER’S MANUAL found on-line at: QuantumVac.com STORAGE Do not store the Quantum on top of the water basin. You can store the Quantum on top of the dolly, and store the water basin aside to dry. Allow air drying. LIMITED WARRANTY...
  • Page 24 beyond the original purchaser who purchases the Product from IntelliClean. This Limited Warranty begins on the original date of purchase and continues through the Limited Warranty Period. This Limited Warranty is valid only on Products purchased and/or received from IntelliClean and used in the fifty (50) United States. What this Limited Warranty Does Not Cover This warranty does not cover belts, brush rolls, use of the product in a commercial operation (such as maid, janitorial and equipment rental services), improper...
  • Page 25 Any legal action to enforce this warranty against IntelliClean must be brought in a court of competent jurisdiction located in Palm Beach County, Florida. THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE. NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY AFTER THE EXPRESS LIMITED WARRANTY PERIOD STATED ABOVE.
  • Page 26 Interaction of Laws with this Limited Warranty Some states, provinces or territories may not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. Some states, provinces or territories may provide for additional warranty rights and remedies, and the provisions contained in this Limited Warranty are not intended to limit, modify, take away from, disclaim or exclude any mandatory warranty requirements provided...
