Summary of Contents for Trynex International SWB-320

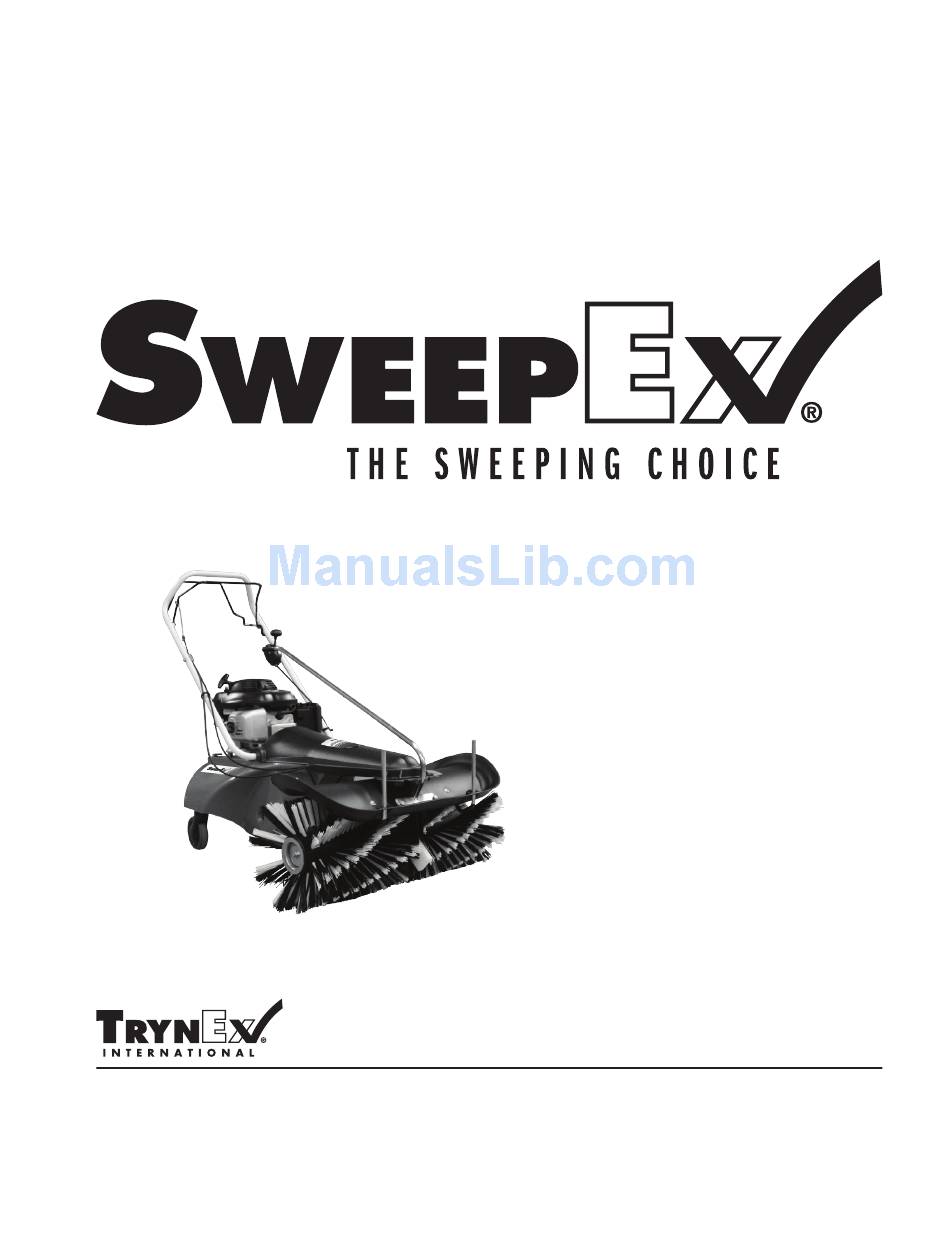

- Page 1 Owner’s Manual This Manual Must Be Read Before Operating The Equipment SWB-320 Serial No. R32-0913830001 and higher CUSTOMER COPY Madison Heights, Michigan 48071 877-SWEEPEX www.sweepexproducts.com © TrynEx International 2013 (REV A) F51225A...
-
Page 2: Table Of Contents
Troubleshooting ......................................22 Notes ..........................................23 Have a question or need assistance? SweepEx Customer Care 877-SWEEPEX or (248) 586-3500 Monday trough Friday 8:00 AM to 4:30 PM EST Fax: (248) 691-8378 E-mail: customercare@trynexfactory.com Website: www.sweepexproducts.com © TrynEx International 2013 (REV A) F51225A... -
Page 3: Introduction
Introduction This operating manual is intended to help you to get to know the SWB-320 and how to operate it safely, correctly and economically. If you observe these instructions, you will prevent hazards, reduce repair costs and breakdown times, and increase the reliability and service life of the machine. -
Page 4: Safety
Safety This page contains safety information to highlight safety hazards and precautions involved with operating your SWB-320. This page must be read and understood by all personnel who have any part with the assembly, use and care of this machine. -
Page 5: Safety
Keep all bystanders away from the machine at least 30 feet (10 meters); out of the danger zone as described in the diagram below. Flying objects; Keep safe distance from the machine when engine is running. © TrynEx International 2013 (REV A) F51225A... -
Page 6: Operating Instructions
Operating Instructions Component Vocabulary Handlebar Brush Lever Movement Lever Throttle Control Brush Angle Adjustment Engine Receiver Drive Wheels Brushes Caster Wheels Drive Wheel © TrynEx International 2013 (REV A) F51225A... -
Page 7: General Safety
Silicone Spray attracts dust and binds it to the machine. It is only a suitable lubricant in wintry and snowy conditions. Do not spray Silicone Spray on hot engine. It could cause a fire. Follow the instructions on the spray can. Remove Foam Pre-Filter. Use SAE 5W-30 Motor Oil. © TrynEx International 2013 (REV A) F51225A... -
Page 8: Operator Controls
The handlebar must be securely engaged at the required height. HANDLEBAR CONTROLS Drive Brushes Throttle Start the machine forward by pressing the drive Engage both levers to operate the drive and the clutch. brushes. © TrynEx International 2013 (REV A) F51225A... -
Page 9: Starting/Stopping Motor
Move throttle lever to the choke Make sure fuel valve is on. position. Pull starter coil. Stand behind the handlebars. Do not press any levers. SHUTTING DOWN Move throttle to the off position. Close Fuel Valve. © TrynEx International 2013 (REV A) F51225A... -
Page 10: Adjusting Handlebar Height
Adjust the handlebar to the desired position. Release the lever. There are four settings for adjusting the handlebar height. Push the adjustment lever with your foot. You can fold the handlebar forward to save space when storing. © TrynEx International 2013 (REV A) F51225A... -
Page 11: Transport
Operating Instructions Transport CARRYING Carrying. Hand Position to hold front. SECURING FOR TRANSPORT Position of Strap at the front. Position of Straps at the rear. To save space when transporting, fold the handlebars forward. © TrynEx International 2013 (REV A) F51225A... -
Page 12: Adjusting Discharge Direction
Collector Box. This will allow sweeping against a wall or curb. Here: Material will be discharged to the left. A sideways setting is recommended if using the optional Debris Shield. This will allow sweeping against a wall or curb. © TrynEx International 2013 (REV A) F51225A... -
Page 13: Sweeping
When using the Debris Collector Box or the Debris Shield, use a medium speed (half-throttle). If the brush pressure is too heavy, the cleaning effect is decreased because the brush fibers are bent too much. © TrynEx International 2013 (REV A) F51225A... -
Page 14: Debris Collector Box (Optional Accessory)
Operating Instructions Debris Collector Box (Optional Accessory) SWB-320 with Debris Collector Box (DCB-320). Mount as shown below, paying attention to the alignment with brush hood. To dump the debris, simply pull the handle from the operating position so the debris can fall out. -
Page 15: Debris Shield (Optional Accessory)
Operating Instructions Debris Shield (Optional Accessory) SWB-320 with Debris Shield (PCA-320). Slide one fender washer over each Slide the Debris Shield over the receiver Finished. receiver bar. bars. © TrynEx International 2013 (REV A) F51225A... -
Page 16: Maintenance Instructions
Use 86 octane or higher unleaded gasoline. 4. If oil level is low, fill up to the upper marking on the dipstick with the recommended oil (see Honda Owner’s Manual). 5. See marking on the dipstick for fill level. © TrynEx International 2013 (REV A) F51225A... -
Page 17: Tire Pressure
Have a second person hold the machine in this position. Turn the wheel counter-clockwise to expose the valve stem. Inflate the tire to 35 psi (2.5 bar)...or if you are going to sweep rough surfaces – 30 psi (2 bar). © TrynEx International 2013 (REV A) F51225A... -
Page 18: Adjusting Control Cables
The levers should move one-third of the total travel without wrench. Pull the cable down. Re-tighten nuts. resistance. The lever should be operating the cable for the other two-thirds. The drive wheel should just turn when the lever is not engaged. © TrynEx International 2013 (REV A) F51225A... -
Page 19: Replacing/Changing Brushes
The the left (looking from the black row of bristles must front). touch the ground before the white row when the Note: Multi-Purpose brush rotates. Bristle shown for clarity. Continued on next page... © TrynEx International 2013 (REV A) F51225A... - Page 20 9. Install the cap and 8. Fit the left-hand brush washer, ensuring the tabs over the axle. and slots are aligned. 10. Tighten the locknut to fasten the brushes. © TrynEx International 2013 (REV A) F51225A...
-
Page 21: Maintenance Plan
CLEANING To keep your SWB-320 in good condition, you should clean it regularly. Remove loose dirt or dust with a car wash brush. Wash plastic surfaces with water and soap. Use car cleaning soap. Rinse off all cleaners thoroughly with clean water. -
Page 22: Troubleshooting
Brushes not suitable for application Contact Customer Care to determine the correct brush Bad brushing results with Debris Collector Box Debris Collector box not fitted correctly, sealing lip Mount swept material container correctly. above brush cover © TrynEx International 2013 (REV A) F51225A... -
Page 23: Notes
Notes © TrynEx International 2013 (REV A) F51225A... - Page 24 131211...
