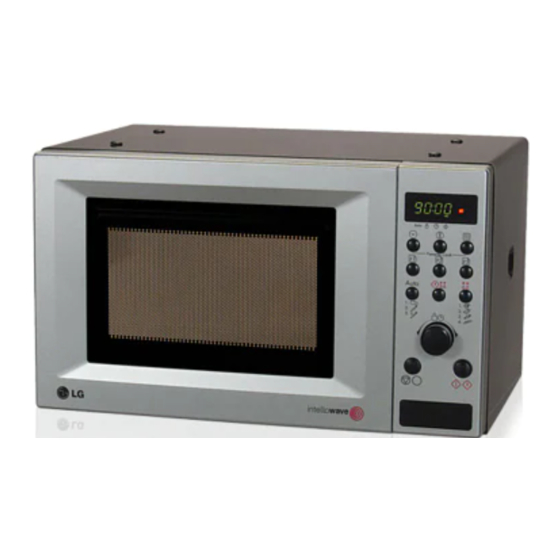

Page 1: Microwave Oven
OWNER'S MANUAL MICROWAVE OVEN PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING. MS-196VUW MS-196VUT MS-196VUS www.lg.com P/No. : MFL06446105 Downloaded From Microwave-Manual.com Manuals... -
Page 2: Precautions
Precautions Precautions to avoid possible exposure to excessive microwave energy. You cannot operate your oven with the door open due to the safety interlocks When heating liquids, e.g. soups, sauces and beverages in your microwave built into the door mechanism. These safety interlocks automatically switch off oven, delayed eruptive boiling can occur without evidence of bubbling. -
Page 3: Table Of Contents
Contents How the Microwave Oven Works Precautions ______________________________________ 2 Contents _________________________________________ 3 Microwaves are a form of energy similar to radio and television waves and Unpacking & Installing _____________________________ 4-5 ordinary daylight. Normally, microwaves spread outwards as they travel Setting the Clock __________________________________ 6 through the atmosphere and disappear without effect. -
Page 4: Unpacking & Installing
Unpacking & By following the basic steps on these two pages you will be able to quickly check that your oven is operating correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your Installing oven make sure you remove all accessories and packing. - Page 5 Plug your oven into a standard household socket. Make Press the STOP button, and press sure your oven is the only appliance connected to the the START button one time to set 30 socket. If your oven does not operate properly, unplug it seconds of cooking time.
-
Page 6: Setting The Clock
Setting the You can set either 12 hour clock or 24 hour clock. Clock In the following example I will show you how to set the time for 14:35 when using the 24 clock. Make sure that you have removed all packaging from your oven. Make sure that you have correctly installed your oven as described earlier in this book. -
Page 7: Child Lock
Favorite Cook Child Lock Press STOP. Your oven has a safety feature that Press and hold STOP until “L” appears on the display and prevents accidental running of the oven. BEEP sounds. Once the child lock is set, you will be The CHILD LOCK is now set. -
Page 8: Micro Power Cooking
Micro Power In the following example I will show you how to cook some food on 640W power for 5 minutes and 30 seconds. Cooking Make sure that you have correctly installed your oven as described earlier in this book. Press STOP. -
Page 9: Micro Power Level
Micro Power Your microwave oven is equipped with 5 power levels to give you maximum flexibility and control over cooking. Level The table below shows the examples of food and their recommended cooking power levels for use with this microwave oven. OUTPUT POWER LEVEL 800W... -
Page 10: Two Stage Cooking
Two stage In the following example I will show you how to cook some food in two stages. The first stage will cook your food Cooking for 11 minutes on HIGH; the second will cook for 35 minutes on 320W. Press STOP . -
Page 11: Quick Start
Favorite Cook Quick In the following example I will show you how to set 2 minutes of cooking on high power. Start Press STOP . The QUICK START feature allows you to Press START four times to select 2 minutes on HIGH power. set 30 seconds intervals of HIGH power Your oven will start before you have finished the fourth press. -
Page 12: Auto Cook
Auto In the following example I will show you how to cook 0.6kg of fresh vegetable. Cook Press STOP . AUTO COOK allows you to cook most of Press AUTO COOK . your favorite food easily by selecting the food type and entering the weight of the food. - Page 13 FOOD CATEGORY UTENSILS INSTRUCTIONS WEIGHT LIMIT FOOD TEMP. Wash, dry and prick potato with a fork several times. 1. JACKET POTATO After Cooking, let stand for 5 minutes. 0.1 kg ~ 1.0 kg Glass tray 20 °c Covered with cooking foil. Place prepared vegetables into a suitable sized container 2.
-
Page 14: Auto Defrost
The temperature and density of food varies, I would recommend that the food is checked before cooking Auto commences. Pay particular attention to large joints of meat and chicken, some foods should not be completely thawed before cooking. The BREAD programme is suitable for defrosting small items such as Defrost rolls or a small loaf. -
Page 15: Auto Weight Defrost Sequence List
AUTO WEIGHT DEFROST SEQUENCE LIST SEQUENCE FOOD MIN./MAX. Minced beef, Fillet steak, Cubes for stew, Sirloin steak, Pot roast, Rump roast, Beef burger. 0.1/4.0 kg 1. MEAT Beef Chops(2.5 cm thick),Rolled roast. Lamb Cutlets(450 g, 1.2 cm thick) Veal Whole(under 2 Kg), Cut up Breasts(boneless), Legs. 0.1/4.0 kg 2. -
Page 16: Quick Defrost
Quick Use this function to thaw only 0.5kg of Minced meat very quickly. This will require a standing time to allow the center to thaw. In the following example will show you how to defrost Defrost 0.5kg of forzen minced meat. Press STOP. - Page 17 QUICK DEFROST SEQUENCE FOOD MIN./MAX. FOOD 0.5 kg Minced meat 1. MEAT Beef Lamb Veal * The benefit of this Quick Defrost feature is automatic setting and control of defrosting, but just like conventional defrosting you must check the food during the defrosting time. * For best results, remove fish, shellfish, meat and poultry from its original paper or plastic package(wrapper).
-
Page 18: Timer
Timer In the following example I will show you how to set the timer for 15 minutes. Press STOP . Press KITCHEN TIMER . Your oven also has a Timer that can be used for noncooking functions. When used as an independent timer,the oven is not running.The Timer is simply counting down in seconds. -
Page 19: Favorite Cook
Favorite This feature allows you to set and execute a frequently used single stage programme. Once the Cook cooking programme is set, you can use it by pressing the favorite cook key. In the following example I will show you how to set the cooking programme for 10 minutes 30 seconds at power level 640W. Press STOP . -
Page 20: Heating Or Reheating Guide
Heating or To heat or reheat successfully in the microwave, it is important to follow several guidelines. Measure the amount of food in order to determine the time needed to reheat. Arrange the food in a circular pattern for best results. Room temperature food will heat faster than refrigerated food. -
Page 21: Fresh Vegetable Chart
Fresh Vegetable Chart Vegetable Amount Cook time Instructions Standing Vegetable Amount Cook time Instructions Standing (at HIGH) Time (at HIGH) Time Artichokes 2 medium 1 /2 Trim. Add 2 tsp water and 2 tsp juice. 2~3 minutes Corn, Fresh 2 ears 4 ~ 8 Husk. -
Page 22: Defrosting Tips
Defrosting Defrosting meats tips & techniques Tips “WARNING: Do not use aluminium foil during cooking cycle." • You can defrost meats in their original wrapping as long as no metal is present. Remove • Whole pieces of meat are ready for standing time as long as a fork can be pushed into the any metal rings, twist ties, wire or foil. -
Page 23: Important Safety Instructions
WARNING Important safety instructions Please ensure cooking times are correctly set as over cooking may result in FIRE and Read carefully and keep for future reference subsequent DAMAGE to the OVEN. 1 Do not attempt to tamper with, or make any adjustments or repairs to the 12 Before cooking, pierce the skin of potatoes, apples or any such fruit or door, control panel, safety interlock switches or any other part of the oven. -
Page 24: Read Carefully And Keep For Future Reference
Important safety instructions Read carefully and keep for future reference 38 Do not use harsh abrasive cleaners or sharp metal scrapers to clean the 24 Only use utensils that are suitable for use in microwave ovens. oven door glass since they can scratch the surface, which may result in 25 When heating food in plastic or paper containers, keep an eye on the shattering of the glass. -
Page 25: Microwave-Safe Utensils
Microwave-safe Utensils Never use metal or metal trimmed utensils in your Paper microwave oven Paper plates and containers are convenient and safe to use in your microwave oven, Microwaves cannot penetrate metal. They will bounce off any metal object in the provided that the cooking time is short and foods to be cooked are low in fat and oven and cause arcing, an alarming phenomenon that resembles lightning. -
Page 26: Food Characteristics & Microwave Cooking
Food characteristics & Microwave cooking Moisture content of food Keeping an eye on things Since the heat generated from microwaves tends to evaporate moisture, relatively dry food The recipes in the book have been formulated with great care, but your success in such as roasts and some vegetables should either be sprinkled with water prior to cooking preparing them depends on how much attention you pay to the food as it cooks. - Page 27 Food characteristics & Microwave cooking Stirring To Clean Your Oven Stirring is one of the most important of all microwaving techniques. In conventional cooking, food is stirred for the purpose of blending. Microwaved food, however, is stirred in order to spread and redistribute heat.
-
Page 28: Questions & Answers
Questions & Answers Q What’s wrong when the oven light will not glow? Q Is it possible to pop corn in a microwave oven? A There may be several reasons why the oven light will not glow. A Yes, if using one of the two methods described Light bulb has blown below Door is not closed... -
Page 29: Plug Wiring Information/Technical Specifications
Plug wiring information/ Technical Specifications Warning Technical Specification This appliance must be earthed MS-196VUW/MS-196VUT/MS-196VUS The wires in this mains lead are colored in accordance with the following codes Power Input 230 V AC / 50Hz BLUE ~ Neutral Output 800 W (IEC60705 rating standard) BROWN ~ Live GREEN &...
