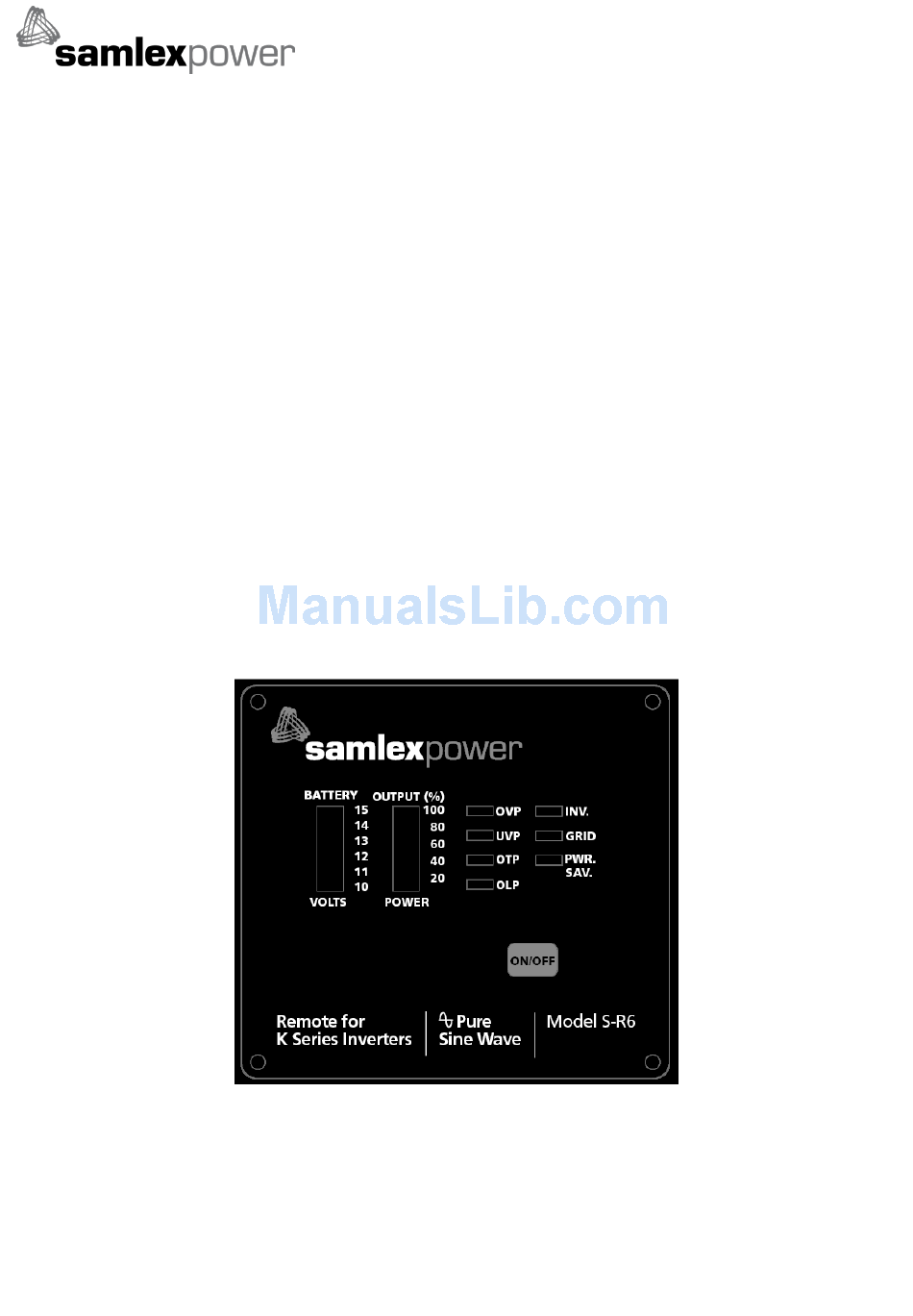

S-R6 Inverter Remote Control User Manual
1. Features
•
Battery bank voltage display
•
Output power display
•
Error condition indicator (High Battery, Low Battery, Over Temperature, Over Load conditions)
•
Indicator for status of operation (INV, GRID, POWER SAVING)
•
Failed connection display
2. Specification
•
Input Voltage : separate versions for 12 V & 24 V inverters
•
Operating Temperature Range : 0 – 40℃
•
Storage Temperature Range : - 30℃ - 70℃
•
Stand-By Current Draw : < 80mA
•
Applicable Models : SA-1000K / 2000K / 3000K Series
3. Introduction
•
Power ON/OFF Switch
Power ON/OFF switch is to turn the inverter on or off. You are supposed to hear one beep sound every time you switch
on or off.
Advertisement
Table of Contents
Summary of Contents for Samlexpower S-R6
- Page 1 S-R6 Inverter Remote Control User Manual 1. Features • Battery bank voltage display • Output power display • Error condition indicator (High Battery, Low Battery, Over Temperature, Over Load conditions) • Indicator for status of operation (INV, GRID, POWER SAVING) •...
- Page 2 • Battery voltage indicator “BATTERY” This bar chart controls a light that will move up and down as the battery voltage changes. Ideally, the voltage should remain in the green area of the bar chart. If the voltage goes into the red area at the top and bottom of the graph, inverter may shut down. •...
- Page 3 • Reverse Over-ride (ROF) and Ignition Lockout Functions The Recreation Vehicle Industries Association (RVIA) of America and some American states require that when a vehicle is in motion, the TV monitor should be switched off if it is in the view of the driver. Sometimes, the TV monitor is used in conjunction with a camera to enable the driver to view the area at the back of the vehicle when the vehicle is being reversed.
- Page 4 Shift, and “+” battery voltage signal is applied. • Installation Procedure Refer to the drawing (see Figure 2) for hole and cutout dimensions. Use the cable between S-R6 remote and the inverter. Switch the inverter to REMO position. PHONE JACK...
