SERVICE MANUAL
Level 1&2

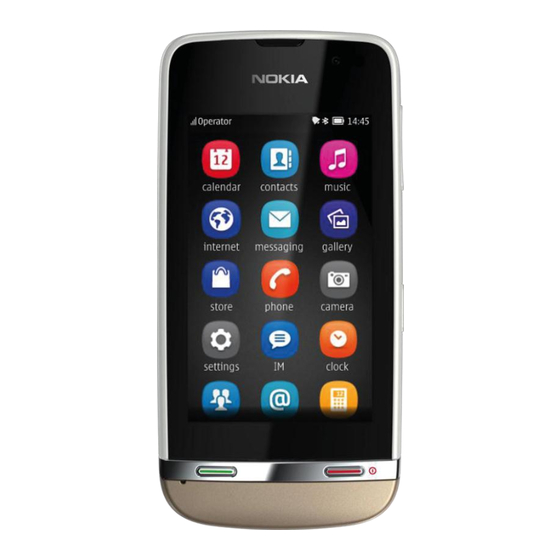

Nokia Asha 311 / 3110
Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved
RM-714
Transceiver characteristics
Band
EGSM 850/900/ 1800/1900 MHz
WCDMA 850/900/1700/1900/2100 MHz
Display
3.0" capacitive full touch, 240 x 400 pixels
Camera
3.2Mpix
Operating System
S40 full touch UI
Connections
GPRS
Bluetooth 2.1 + EDR
FM Radio
IEEE 802.11 b/g/n WLAN
3.5mm AV Jack
2.0mm DC Jack
Micro USB
Micro SD card slot
Transceiver with BL-4U battery pack
Talk time
GSM-A: up to 7.2 h
WCDMA: up to 4.5 h
Note:
Talk times are dependent on network
parameters
and phone settings
Nokia Asha 311 / 3110 (RM-714)
L1L2 Service Manual
Standby
GSM-A: up to 711 h
WCDMA: up to 781 h
Version 1.0
Advertisement
Table of Contents
Related Manuals for Nokia Asha 311
Summary of Contents for Nokia Asha 311
- Page 1 GSM-A: up to 711 h WCDMA: up to 4.5 h WCDMA: up to 781 h Note: Talk times are dependent on network parameters and phone settings Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0...
-
Page 2: Table Of Contents
EXPLODED VIEW ..........................9 SERVICE DEVICES ..........................10 SOFTWARE UPDATE ........................11 DISASSEMBLY INSTRUCTIONS ....................... 12 10. ASSEMBLY HINTS ..........................19 11. SOLDER COMPONENTS ........................21 Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0... - Page 3 The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA provides also other guidance documents (e.g.
-
Page 4: Copyright
Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided “as is”. Except as required by applicable law,... -
Page 5: Warnings And Cautions
3. Use only approved components as specified in the parts list. 4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment. 5. Ensure all cables and wires are repositioned correctly Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0... -
Page 6: Esd Protection
ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local Nokia After Market Services representative. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0... -
Page 7: Care And Maintenance
Unauthorised antennas, modifications or attachments could damage the phone and may violate regulations governing radio devices. All of the above suggestions apply equally to the product, battery, charger or any accessory. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0... -
Page 8: Battery Information
Batteries’ performance is particularly limited in temperatures well below freezing. Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0... -
Page 9: Exploded View
SCREW TORX+ SIZE 4 RF 1.2 X 4.0 I0023 C-COVER Only available Not reuseable Repair/swap v1.0 I0026 as assembly after removal only in level 3 Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0... -
Page 10: Service Devices
Service Bulletin (SB-011) on Nokia Online. Supplier or manufacturer contacts for tool re-order can be found in “Recommended service equipment” document on Nokia Online. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0... -
Page 11: Software Update
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package. Please check always for the latest version of flash software, which is available on Nokia Online. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved... -
Page 12: Disassembly Instructions
6) Release the ANTENNA COVER from the front from the shown places. Be careful not to damage side as shown. Be careful not to damage the A- the A-COVER! COVER! Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0... - Page 13 11) Unscrew the four Torx+ size 6 screws in the 12) Unscrew the four Torx+ size 4 screws in the order shown. The screws are not reusable. Discard order shown. them. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0...
- Page 14 17) Use an AV plug to remove the AV JACK. 18) Push the shown clip with the sharp end of the SS-93 to release the BT ANTENNA MODULE. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0...
- Page 15 ENGINE BOARD from the shown place. 23) Release also the other side of the ENGINE 24) The ENGINE BOARD can now be separated. BOARD with the SS-93. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0...
- Page 16 30) Remove the DIPRO SEPARATOR with the with the dental tool. Peel out and remove the tweezers. Do not use it again. Discard it. DOMESHEET. Discard it. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0...
- Page 17 35) Release the EARPIECE with the dental tool. 36) Remove also the EARPIECE residues from the Remove it with tweezers. Do not use the EARPIECE A-COVER. again. Discard it. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0...
- Page 18 Nokia Asha 311 / 3110 (RM-714) L1L2 Service Manual -END OF DISASSEMBLY- 37) Now the Nokia Asha 311 disassembly procedure is complete. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0...
-
Page 19: Assembly Hints
6) Place the END KEY with tweezers. Push the END check that it is aligned correctly. KEY with finger until it snaps to its place. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0... - Page 20 Nokia Asha 311 / 3110 (RM-714) L1L2 Service Manual 7) Place the SEND KEY with tweezers. Push the SEND KEY with finger until it snaps to its place. Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0...
-
Page 21: Solder Components
F3300 S2551 S2550 G2200 S2553 X2081 X6400 X6405 Volume key Volume key Backup Lock key Antenna Fuse switch switch capacitor switch spring spring spring v1.0 Nokia Internal Use Only | Copyright © 2012 Nokia | All rights reserved Version 1.0... - Page 22 www.s-manuals.com...
