Warning: If your appliance is not properly installed, a house fire may result. For your safety, follow the
installation directions. Contact local building or fire officials about restrictions and installation inspection
requirements in your area.
•
Please read this entire manual before installation and use of this pellet fuel-burning room heater. Failure
to follow these instructions could result in property damage, bodily injury, or even death.
•
Save these instructions.
•
Some surfaces become hot at higher feeding rates. To prevent potential burns, avoid contact with those
areas.
•
This heating appliance must serve as a supplementary heat source. An alternative heat source should be
available in the home if needed. The manufacturer cannot be responsible for additional heating costs
associated with the use of an alternative heat source.
•
It is highly recommended that the user buys this product from a retailer who can provide installation and
maintenance advice.
Professional installation is highly recommended
MODEL FP-45
FREESTANDING
OWNER'S MANUAL
Manufactured by:
Stove Builder International Inc.
Quebec City (Quebec)
CANADA
45259
Advertisement
Table of Contents
Summary of Contents for Flame FP-45
- Page 1 MODEL FP-45 FREESTANDING OWNER’S MANUAL • Warning: If your appliance is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area.
-
Page 2: Introduction
INTRODUCTION Thank you for purchasing the FP-45 pellet stove. You are now prepared to burn wood in the most efficient, convenient way possible. To achieve the safest, most efficient and most enjoyable performance from your stove, you must do three things: 1) Install it properly; 2) Operate it correctly;... -
Page 3: Safety Precautions
• • The stove will not operate during a Do not operate the stove if the flame power outage. If an outage does occur, check becomes dark and sooty or if the burnpot overfills the stove for smoke spillage and open a with pellets. -
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION..............................2 SAFETY PRECAUTIONS............................3 TABLE OF CONTENTS............................4 INSTALLATION ..............................6 FP-45 FREESTANDING PELLET STOVE .......................6 PREPARATION ..............................6 CLEARANCES ..............................6 COMBUSTION AIR SUPPLY ...........................7 WHEN OUTSIDE AIR IS NOT USED ......................7 VENTING ................................7 EQUIVALENT VENT LENGHT (EVL) ......................8 INSTALLATION CONFIGURATIONS ......................8 HORIZONTALLY THROUGH WALL ......................8... - Page 5 SMOKE SMELL COMING BACK INTO THE HOME ..................24 AUGER MOTOR STOPS FEEDING PELLETS AND COMES BACK ON ..........24 GLASS SOOTS UP VERY FAST........................25 FLAME IS LAZY, DARK, AND HAS BLACK TIPS ..................25 AFTER STOVE HAS BEEN ON FOR A WHILE, THE BURNPOT OVERFILLS ........25 WARNING CODES ............................26 SMOKE SMELL OR SOOT BUILD-UP ......................26...
-
Page 6: Installation
2" CLEARANCES 3" The FP-45 has b een tested and listed for installation in regular and mobile homes.(refer figure 1 & 2) FLOOR PROTECTION: minimu m 6” in the front and 6” on each s ide. The stove must be placed on a continuous (grouted joints) non-co mbustible 2"... -
Page 7: Combustion Air Supply
Rear view VENTING The FP-45 is certified for use with a vent certified to UL-103 or ULC S629M and a chimney type vent certified to UL-641 or ULC-S -609-M89 and ULC/ORD C 441-M90, with 3 ” or 4” inne r dia meter. In C anada, we recommend t hat you use a listed pellet vent tha t meets the UL C S-609 - M89 and ULC/ ORD C44 1-M90 Standards. -
Page 8: Equivalent Vent Lenght (Evl)
EQUIVALENT VENT LENGHT (EVL) The longer the run of pipe in your installation, the greather the restriction in the s ystem. Therefore, large r di ameter pipe sho uld be used f or longer runs. 90 DEGREE ELBOW • Use 4” pipe if you have mor e than 15 feet of Equivalent Vent Leng th (EVL). -
Page 9: Vertically With New Chimney System
VERTICALLY WITH NEW CHIMNEY SYSTEM NOTE: Follow Vent chimney manufacturer’s instructions. OPTION: To achieve a centered vertical installation, a 45º elbow an d a clean-out tee ca n be used t o offset the pipe from the exhaust outl et to th e rear center of the stove. -
Page 10: Vertically Into Existing Masonry Fireplace
VERTICALLY INTO EXISTING MASONRY FIREPLACE VERTICAL ROOF VENT NOTE: Follow Vent chimney manufacturer’s instructions. 18" 3" Have the masonr y chimne y inspected b y a qualified chimney swe ep FOLLOW CHIMNEY OR VENT MANUFACTURER'S or installer to determine its structural integrity. TOP PLATE INSTRUCTIONS You must run a pipe from the sto ve outlet to 18 inches above the top... -
Page 11: Optional Log Set Installation
OPTIONAL LOG SET INSTALLATION To install the optional log set, you first need to remove the four screws indicated on figure 14. Keep the screws. Locate the two fixation brackets figure 15 that came with your owner’s manual. Fix the two brackets using the same screws you have removed. Lay the log set inside the firebox as shown on figure 16, 17 &... -
Page 12: Filters Installation And Cleaning
FILTERS INSTALLATION AND CLEANING The two filters for your convection blowers are supplied with the owner’s manual. Although the filters are not mandato ry, they are useful to prevent dust from being dispersed into the room w here the stove is located. If you install the filters, please make sure that they are cleaned on a regular basis as per our r ecommended maintenance s chedule. -
Page 13: Operation
MANUAL” o r ‘THERMOSTAT” If the flame is to o low in burn pot or the unit has difficulty to light, reduce the air Figure 19 supply by turning the air suppl y control knob toward the minimum setting. Th e knob is located on the side of th e unit. -
Page 14: Mode Switch
MODE SWITCH • When the mode switch is pressed, the stove w ill automatically ignite. If the manua l mode is selecte d, the heat level must be selected manually to adjust the stove’s heat output to the desired level. If the thermostat mode is selected, the stove will automatically modulate between the lowest heat level and the heat level sele cted to keep the room temperature at the thermostat’s setting. -
Page 15: If The Stove Runs Out Of Pellets
SHUTDOWN PROCEDURE Turning your Flame stove off is a matter of p ressing the “MODE” control panel s witch, until the “OF F” led goes on. The blowers will continue to operate until internal firebox temperatures have fallen to a preset level. -
Page 16: Operating The Stove Using A Thermostat
FP-45 MF. The thermostat should be mounted 50 Thermostat terminal inch from the floor on a wall located 15 to 20 feet from the stove. You... -
Page 17: Operating Safety Precautions
PLEASE READ THIS! a. If you notice a smoldering fire (burnpot full but no vi sible flame) AND a heavy smoke buildup in firebox, immediately TURN OFF the stove, but DO NOT unplug it. Do not open the door, change the damper setting or tamper with any controls on the stove. -
Page 18: Maintenance
ASH REMOVAL WALL The FP-45 stove has an ash drawer located under the firebox. To remove ashes: Make sure fire is out and the firebox is cool. Open the door and remove the baffle from the firebox. Close the door. -
Page 19: Vaccum Use
CLEANING Heat Exchange Tubes – Your FP-45 stove is de signed with a bui lt-in heat e xchanger tube cleaner. This should be used weekly to remove accumulated ash on the tubes. S lide the cleaning rod back and forth two or three times from front to back (refer to fig ure 36). When finished, push the cleaning rod back in, behind the louvers. -
Page 20: Chimney Cleaning
While wearing leather gloves (or any other gloves suitable for han dling broken gla ss), carefully remove any loose pieces of gla ss from the do orframe. Dispose of all br oken glass prop erly. Return the damaged glass to your FLAME Dealer for replacement. It is critical that you replace the glass with a... -
Page 21: Troubleshooting
TROUBLESHOOTING When your stove acts up, your first reaction may be to call for help This guide may save you time and money by enabling you to resolve simple problems yourself. Problems can be caused by: 1) poor fuel; 2) poor operation or maintenance; 3) poor installation; 4) component failure; 5) factory defect. -
Page 22: Stove Shuts Off And Shows Warning Code "E
STOVE SHUTS OFF AND SHOWS WARNING CODE “E” Possible Remedies: (Unplug stove first when possible) Possible Causes: The hopper is empty. Refill the hopper. The burn pot holes are blocked. Remove the burn pot and clean it thoroughly. The air damper is open too much for the low feed setting. If the stove is on the low setting, you may need t o close the damper all the way. -
Page 23: Stove Feeds Pellets, But Will Not Ignite And Shows Warning Code "L
Adjust the air suppl y to the minimum setting for startup. In some situations, it may be necessary to have the damper completely closed for ignition to take place. Once there is a flame, the damper can be adjusted to the desired feed setting. Blockage in igniter tube or inlet for igniter tube. -
Page 24: Stove Stops Feeding Pellets And Shows Warning Code "H
STOVE STOPS FEEDING PELLETS AND SHOWS WARNING CODE “H” Possible Causes: Possible Remedies: One of the two L-250 automatic high temperatur e switch has The L-25 0 auto matic high temperature s witch is located on th tripped. auger housing t op and bottom It will send a signal to the control board if th e aug er housing ove rheats. -
Page 25: Glass Soots Up Very Fast
GLASS SOOTS UP VERY FAST FLAME IS LAZY, DARK, AND HAS BLACK TIPS AFTER STOVE HAS BEEN ON FOR A WHILE, THE BURNPOT OVERFILLS Possible Causes: Possible Remedies: Stove or vent pipe is clogged, which restricts airflow through the burn pot. -
Page 26: Warning Codes
SMOKE SMELL OR SOOT BUILD-UP Because it is a wood-burning device, your FP-45 may emit a faint wood-burning odor. If this increa ses beyond normal, or if you notice an unusual s oot build-up on w alls or furniture, check y our exhaust sy stem caref ully for leaks. All jo ints should b e properl y seale d. Also clean y our stove, follow ing... -
Page 27: Electrical Diagram
ELECTRICAL DIAGRAM THERMOSTAT HOPPER LID TERMINALS SWITCH N.O. N.O. CONTROL BOARD THERMISTOR L2(LINE COMMON) L1(LINE HOT) L1(LINE NO CONNECTED) FRAME GROUND L-250 RESET N.C. AIR FLOW PRESSURE SWITCH N.O. L-250 AUGER IGNITER N.F. MOTOR L-250 COMBUSTION/EXHAUST N.C. BLOWER F-160 N.O. CONVECTION BLOWER HIGH TEMPERATURE... -
Page 28: Replacement Parts
REPLACEMENT PARTS Contact an Authorized FLAME Dealer to obtain any of these parts. Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards. ITEM PART # Airflow Pressure Switch 44029 Air Switch Hose 49004... -
Page 29: Appendix A - Horizontal And Vertical Vent Chart
APPENDIX A - HORIZONTAL AND VERTICAL VENT CHART If you plot your venting Possible Vertical system configuration on vent length (feet) this chart, your wall or roof termination should be within the grid. Possible Horizontal vent length (feet) Let’s imagine an installation consisting of a horizontal vent coming out at the back of the stove on a total distance of 8 feet. This horizontal run is followed by a Tee and a 6-foot vertical rise. -
Page 30: Appendix B - Inspection And Repair Form
APPENDIX B – INSPECTION AND REPAIR FORM Fabriquant de poêle international inc. INSTALLATION DIAGRAM Stove Builder International Inc. 1700, rue Léon-Harmel, Québec (Québec) G1N 4R9 DRAW YOUR INSTALLATION Phone : (418) 527-3060 Fax : (418) 527-4311 1 SQUARE = 1 F00T E-mail : tech@sbi-international.com Web site : www.drolet.ca Installation int. -
Page 31: Flame Limited Lifetime Warranty
Paint (peeling), ceramic logs, gaskets, and masonry-like panels 1 year *Pictures required Shall your unit or a components be defective, contact immediately your FLAME dealer. Prior to your call make sure you have the following information necessary to your warranty claim treatment: •...
Need help?
Do you have a question about the FP-45 and is the answer not in the manual?
Questions and answers
The hose from the pressure sensor switch came undone causing the P code. Where does the hose from The pressure switch connect to? It appears to have a brass fitting at the end of the rubber hose. Just trying to understand where it could go and get this stove working again. Fp45
The hose from the pressure sensor switch on the Flame FP-45 stove connects to the pressure switch probe located inside the exhaust blower housing.
This answer is automatically generated
@Mr. Anderson the hose does not seem to be able to get inside there ... it seems to have a brass fitting on the end of the hose and came loose or disconnected while removing hose to blow through it. I just am at a loss as to how to get it back or if because the brass on the end is broken?
@Mr. Anderson should it just plug back in then? Sorry just not sure as I've pulled it off the pressure switch many times. It appears from what I thought as it just sat literally on top of the motor directly beside the air pressure switch. It does have a tiny hole in the end of the what looks like brass end.

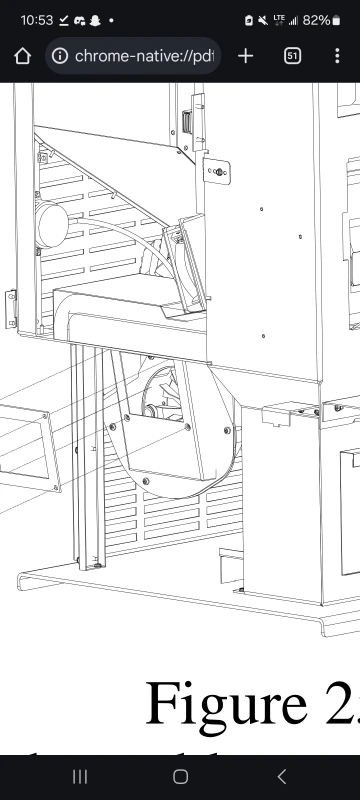

@Mr. Anderson this is the picture basically unable to understand where the hose could attach to. Even in the diagram it looks to dissappear
