Therma-Stor DEH2000 Installation And Operation Instruction Manual

DEH 2000 D
T /H
IMER

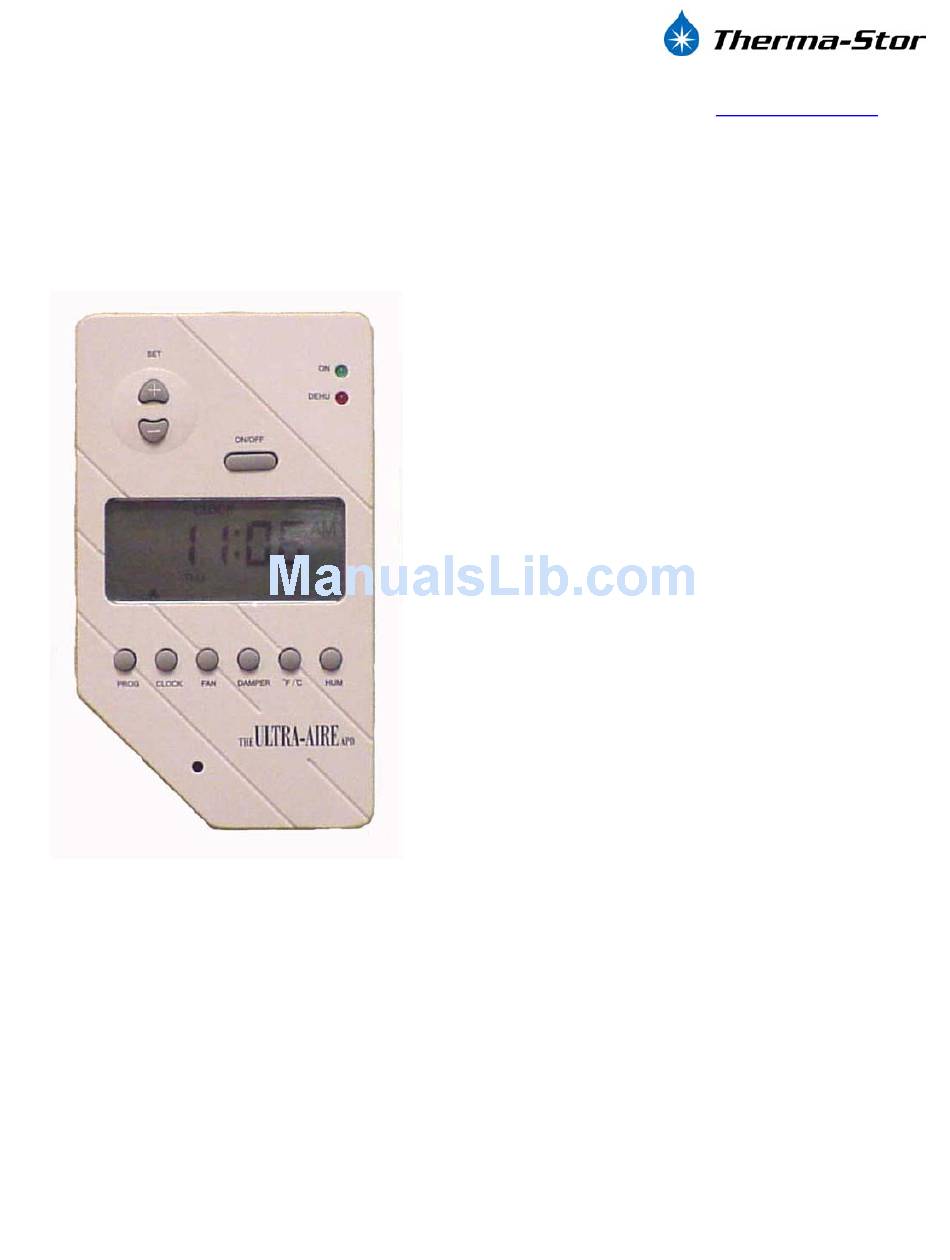

DEH 2000 Digital Ventilation Timer/Humidity/Fan Control
Table of Contents
1.

Specifications ................................................. 1

2. Installation....................................................... 1
2.1 Wiring ............................................................... 1
2.2 Location ............................................................ 1
3. Operation......................................................... 2
3.1 Display.............................................................. 2
3.2 Setting .............................................................. 2
3.3 On/Off Setting................................................... 2
3.4 Setting Clock Time ........................................... 2
3.5 Setting Relative Humidity Setpoint ................... 2
3.6 Fan Setting & Operation................................... 2
3.7 Damper Operation And Setting (Ventilation) .... 3
3.8 Intermittent Or Programmed Ventilation ........... 3
3.9 Programming Notes .......................................... 4
IGITAL
/F
UMIDITY
Installation & Operation Instructions
V
ENTILATION
C
AN ONTROL
1 Specifications
Model:
Electrical:
Humidity Range:
Humidity Accuracy:
Output:

2 Installation

This control panel must be installed in the conditioned
space and in accordance with all applicable codes and
standards. Follow the instructions below when installing
and setting this control.
2.1 Install Instructions
1. Separate the front panel from the back panel by
depressing the tongue located in the bottom of the
control.
2. Gently disconnect the quick connector on the back
panel
3. Remove the battery from the back panel by sliding it
to the left and out from it's retaining clip. To mount in
the black battery holder on the front panel, insert it
from the top, gently pressing downward until it snaps
into place and is held under the top clip of the
holder. The + engraved on the battery should be
visible.
4. Line the back panel up against the wall or flat
surface onto which it is to be mounted and drill in the
appropriate mounting holes
5. Insert the screws so they extend approximately 1/8"
from the wall or flat surface.
6. Align the back panel against these screws, pushing
it forward, allowing it to slide downwards to lock into
position.
7. Make the electrical connections to the terminals on
the back panel as shown in the wiring diagram.
8. Reconnect the quick connector onto the back panel.
9. Reassemble the front to the back panel. Connect at
the top first, then at the bottom.
PO Box 8050, Madison, WI 53708
1-800-533-7533
www.thermastor.com
DEH2000 Digital Control
24 VAC
20 – 90% RH
+/- 4%
3 Amps 24 VAC
TS259B-0502
