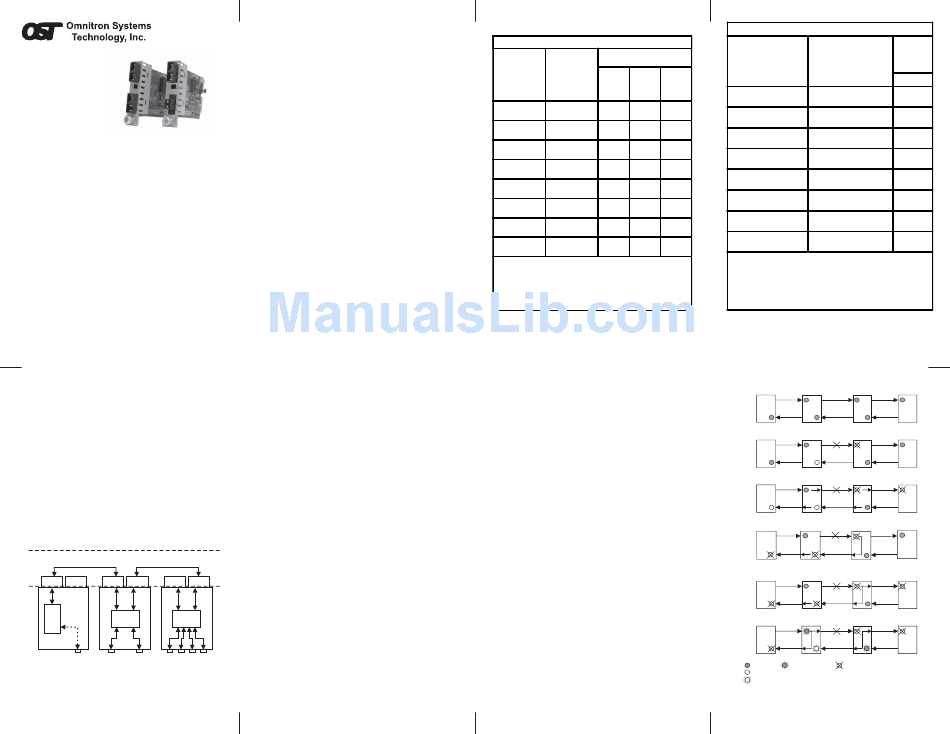

Omnitron Systems Technology iConverter GX/F User Manual

®
iConverter GX/F User Manual
Port 1 (P1), Gigabit
1000X
Port 2 (P2), Fast Ethernet
100FX

ABOUT THIS MANUAL

This document supports revision "xx/10" of the GX/F.
Please refer to the serial number label on the GX/F for
the revision number of your product. This revision
incorporates the following improvements to the GX/F:
1. Product enhancements now prevent unpredictable
behavior under undefined or incompatible DIP-Switch
selections.
2. LINK MODES have been increased to include RFD+LS
and RFD+LP modes. Improvements to LED behavior
have been made to accommodate these new link modes.

OVERVIEW

The iConverter GX/F media converter provides Gigabit
1000X fiber to Fast Ethernet 100FX fiber conversion. It
is a member of the modular iConverter product family
and supports multimode, single-mode and single-fiber
options. The iConverter GX/F repeats, regenerates and
re-times the fiber optic signal, and multiple GX/F repeaters
can be cascaded to extend total network distances.
Page 1

PORT STRUCTURE

Using a 4-port switch design, the GX/F features a front-
plane 1000Mbps Gigabit fiber port (P1), a 100Mbps
Fast Ethernet fiber port (P2) and two 10/100 Ethernet
backplane copper ports ("A" and "B") that can connect
to adjacent modules within the same chassis.
When the GX/F "A" and "B" Ethernet backplane ports are
enabled (using the "BPAEN" and "BPBEN" DIP-Switches),
they connect via the chassis backplane to the slots on
the left and right sides of the GX/F module. When another
switch-based module with backplane ports such as a
second GX/F or an NMM is installed in an adjacent slot, it
can be connected via the backplane to the GX/F to form
a multi-module configuration.

GX/F Application Example

Slot 1 (odd) Slot 2 (even) Slot 3 (odd)
Chassis
"A" Link "B" Link
Backplane
A Port
A Port B Port A Port B Port B Port
NMM
Internal
front / Internal
back 10/100/1000 10/100
select switch chip switch chip
NMM UTP Fiber Fiber 4-port 10/100 UTP
10 port 1000 port 100 port Switch
NMM Module GX/F Module 4Tx Module
Fig. 1 In-Band Managed GX/F Application
Page 5
Using its switch-based architecture, the GX/F can be
used as a two-port fiber converter, or using its two
additional 10/100 Ethernet backplane ports, it can
connect to adjacent modules and accommodate
In-Band management or multi-module configurations
(the different iConverter Chassis models provide
backplane links to connect between adjacent modules).
The GX/F can be used in an unmanaged or managed
fashion. When unmanaged, it can be installed in a chassis
without a management module. To be managed, a
Network Management Module (NMM) or an iConverter
module with built-in management (such as a 10/100M or
GX/TM) must be installed in the same chassis.
Advanced Features
The GX/F features Port VLAN and Tag VLAN, which allow
control of traffic flow between both the fiber ports and the
backplane ports. It also features Port Access Control,
which facilitates enabling and disabling of individual ports.
The GX/F supports reporting of MIB statistics. Statistics
are available for 32 variables per port, reporting a wide
range of real-time packet statistics to provide
performance and operational monitoring.
NOTE: Using the advanced features listed above
requires management via an NMM, or an iConverter
module with built-in management (such as a 10/100M
™
or a GX/TM) and NetOutlook Management Software,
a third-party SNMP management software or Telnet.
For more information on using and configuring these
advanced features, please refer to the NetOutlook
Management Software user manual.
Page 2
Fig. 1 depicts a chassis with three modules plugged
into three of its adjacent backplane slots (beginning
with an odd numbered slot). The adjacent slots are
connected via the backplane using the "A" and "B"
10/100 links. In this example, the GX/F in the center
slot connects to the slot on its left using the "A" link
and to the slot on its right using the "B" link.
The module on the left is a Network Management Module
(NMM) connecting via its "A" backplane port to the GX/F,
facilitating "In-Band" management (via the fiber uplink).
The module on the right is a 4-port 10/100 switch module
(4Tx) connecting to the GX/F via its "B" port. This 3-module
configuration forms an effective managed 4-port 10/100
Ethernet switch with one Gigabit fiber uplink port and one
Fast Ethernet fiber port.
This example shows how the GX/F can be used as a managed
or unmanaged media converter or as a building block in
creating flexible and effective network switch configurations.
For more information about individual chassis "A" and "B"
backplane links, refer to the specific chassis' user manual.

LINK MODES

In order to accommodate different user needs, the GX/F
supports five different linking modes (see Fig. 2).
In "Link Segment" (LS) mode ("Normal" mode), a port transmits
a Link signal independently of any received Link at any port.
For example, P2 transmits a Link regardless of the receiving
of a Link at P1 [Fig. 2(a) & 2(b)].
In "Link Propagate" (LP) mode (sometimes referred
to as "Link-Loss-Carry-Forward"), a port transmits a
Link signal only when receiving a Link on the other
Page 6
GX/F MODEL NUMBER REFERENCE CHARTS
iConverter GX/F Dual Fiber Converters
Connector Types (P1/P2)
Port 1 - 1000X Port 2 - 100FX
(Fiber Type / (Fiber Type /
Distance / Distance /
MT-RJ/
SC/SC LC/LC
Wavelength) Wavelength)
MT-RJ
MM / 220m / MM / 5km /
8562-00 - 8564-00
1
550m / 850nm 1310nm
MM / 220m / SM / 30km /
8562-01 - 8564-01
550m 1 / 850nm 1310nm
MM / 220m / SM / 60km /
8562-02 -
550m 1 / 850nm 1310nm
MM / 220m / SM / 120km /
8562-03 -
550m 1 / 850nm 1550nm
SM / 12km / MM / 5km /
8563-10 - 8565-10
1310nm 1310nm
SM / 12km / SM / 30km /
8563-11 8567-11 8565-11
1310nm 1310nm
SM / 12km / SM / 60km /
8563-12 8567-12
1310nm 1310nm
SM / 12km / SM / 120km /
8563-13 8567-13
1310nm 1550nm
For wide temperature (-40 to 60º C), add a "W" to the end of the model
number. Consult factory for extended temperature (-40 to +75º C ) models.
When using single-fiber (SF) media converter models, the Tx wavelength
on one end has to match the Rx wavelength on the other.
1 62.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm
multimode fiber up to 550m. Refer to the fiber cable manufacturer for
multimode distance specifications.
Page 3
front-plane port, and a loss of a received Link at one
port causes the other front-plane port to drop its link
out. For example, P2 transmits a Link only when
receiving a Link at P1 [Fig. 2(c)].
In Remote Fault Detection + Link Segment (RFD+LS),
the fiber port transmits a Link signal only when receiving
a Link at the fiber port. As a result, fiber faults (no Link
received at the fiber) are looped-back and can be
reported to the network core [Fig. 2(d)].
In "Remote Fault Detection + Link Propagate" (RFD+LP)
mode, the P1 port transmits a Link signal only when both it
and P2 are receiving Link signals. A loss of a received Link
signal at P1 is Looped-back to P1 and propagated to P2,
causing both to stop transmitting the Link signal [Fig. 2(e)].
Also, the loss of a received Link at P2 is propagated to
both P1 and P2, which stop transmitting the Link signal.
NOTE: Connecting two converters both set to RFD is not
supported and will cause a "deadly embrace" lockup (refer
to the Port 1 1000FX Auto-Negotiation DIP-Switch section).
"Symmetrical Fault Detection" (SFD) mode operates
similarly to the Remote Fault Detection (RFD) mode. In
SFD mode, the loss of a received Link at P1 is Looped-
Back to P1 and propagated to P2, causing both to stop
transmitting the Link signal [Fig. 2(f)] and also causing
blinking in a connected GX/F P1 "Link" LED indicator.
Connecting two converters which are both set to SFD is
permitted and facilitates a dual-loop-back feature where
P1 fiber faults can be reported to both ends of the network.
NOTE: Converters in SFD mode must be deployed in pairs,
and the "LS" DIP-Switch position must also be selected.
Page 7
iConverter GX/F Dual/Single-Fiber Converters
Port 1 - 1000x Port 2 - 100Fx
Dual Fiber Single Fiber
(Fiber Type / (Fiber Type /
Distance / Distance /
Wavelength) Wavelength)
1
MM / 220m / 550m / SM / 20km /
850nm Tx 1310nm, Rx 1550nm
MM / 220m / 550m 1 / SM / 40km /
850nm Tx 1310nm, Rx 1550nm
MM / 220m / 550m 1 / SM / 20km /
850nm Tx 1550nm, Rx 1310nm
-
1
MM / 220m / 550m / SM / 40km /
850nm Tx 1550nm, Rx 1310nm
-
SM / 20km /
SM / 12km / 1310nm
Tx 1310nm, Rx 1550nm
SM / 40km /
SM / 12km / 1310nm
Tx 1310nm, Rx 1550nm
SM / 20km /
SM / 12km / 1310nm
Tx 1550nm, Rx 1310nm
-
SM / 40km /
SM / 12km / 1310nm
Tx 1310nm, Rx 1550nm
-
For wide temperature (-40 to 60º C), add a "W" to the end of the model
number. Consult factory for extended temperature (-40 to +75º C) models.
When using single-fiber (SF) media converter models, the Tx wavelength
on one end has to match the Rx wavelength on the other.
1 62.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm
multimode fiber up to 550m. Refer to the fiber cable manufacturer for
multimode distance specifications.
Page 4
100Fx 1000F
LS
Fiber Fiber
P2 P1 P1
(a)
Switch 1 Converter A Converter B
LS
P2 P1 P1
(b)
Switch 1 Converter A Converter B
LP
P2 P1 P1
(c)
Switch 1 Converter A Converter B
LP RFD+LS
P2 P1 P1
(d)
Switch 1 Converter A Converter B
LP RFD + LP
P2 P1 P1
(e)
Switch 1 Converter A Converter B
SFD
(f) P2 P1 P1
Switch 1 Converter A Converter B
LED Lit LED Blinking LED Off
LED Status depends on connected device
LED Status (Blinking/off) depends on connected device
Fig. 2 GX/F Link Modes
Page 8
Connector
Type
(P1/P2)
SC/SC
8562-05
8562-06
8562-07
8562-08
8563-15
8563-16
8563-17
8563-18
100Fx
LS
Fiber
P2
Switch 2
LS
P2
Switch 2
LP
P2
Switch 2
P2
Switch 2
P2
Switch 2
SFD
P2
Switch 2
