Summary of Contents for FIAS GEN52

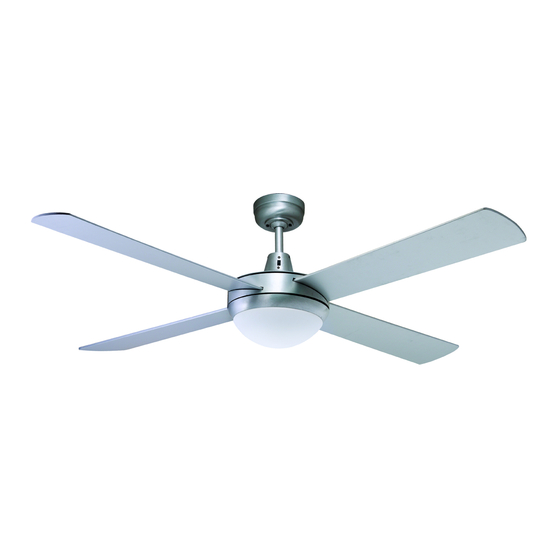

- Page 1 FIAS LIGHTING PTY LTD Model: GEN52 Genesis Series 52 inch ceiling Fan Installation Manual Page 1...
- Page 2 FIAS LIGHTING PTY LTD Thank you for purchasing FIAS Genesis Ceiling fan. Please read all information before use and construction of ceiling fan. Important Warranty is VOID if a non licensed Electrician installs the ceiling fan and performs electrical work.
- Page 3 FIAS LIGHTING PTY LTD Assembly instructions Image 1: 1. Mount the Bracket that is supplied with the Ceiling fan to a solid structure as mentioned before. Use the two long screws that are provided in the packaging to secure the bracket onto the ceiling. (Image 1). A licensed electrician should complete the wiring.
- Page 4 FIAS LIGHTING PTY LTD Image 3 3. Insert the Blades in the slot of the ceiling fan. There are a total of 4 slots and 4 blades. It is easier to mount the blades one at a time rather than slotting all 4 blades into position 4.
- Page 5 FIAS LIGHTING PTY LTD Image 5 5. After putting the fan together, connect the ceiling fan connector to the Mounting bracket connector that is already mounted on the ceiling. Image 5 6. Place the Completed fan into the bracket with the ball Joint. Twist the fan around till the fan locks into place.
- Page 6 FIAS LIGHTING PTY LTD Please make sure the fan is switched off when using this option. This is the summer and winter switch. On summer option, the fan will rotate anti-clockwise which will push the air downwards, This will have the three standard speeds.
- Page 7 FIAS LIGHTING PTY LTD Image 10 Once the bulbs have been installed, you spin the glass clockwise to tighten and anti-clockwise to loosen. Excessive force may damage or break the glass and this is not covered under warranty. Image 10...
- Page 8 FIAS LIGHTING PTY LTD PIECES OF FAN Page 8...
- Page 9 FIAS LIGHTING PTY LTD Noise: The manufacturer warranty covers faults that may develop, but NOT minor complaints of slight noise as all electric motors in operation make noise to some extent, more so at low speeds. Ceiling fans are mounted very securely on the steel brackets with rubber cushioning or...
- Page 10 FIAS LIGHTING PTY LTD WARRANTY: The Purchaser of the FIAS ceiling fan is provided with a 3 year warranty from date of purchase, first 2 years are covered by an in-home warranty on all defective parts, materials and workmanship, these will be replaced free of charge by Fias Lighting.
- Page 11 FIAS LIGHTING PTY LTD Page 11...
- Page 12 Please fill out all necessary warranty details and fax it to: 07 3841 4849 or email it to warranties@fiaslighting.com.au A Fias Lighting representative will contact you once all of the details have been filled and sent back. Kindly be advised that when doing an in-home warranty on a ceiling fan, If the fault is NOT due to Manufacturers fault, all costs incurred by the service agent will be borne by the purchaser of the ceiling fan.
