Summary of Contents for FPV3DCAM BlackBird 1

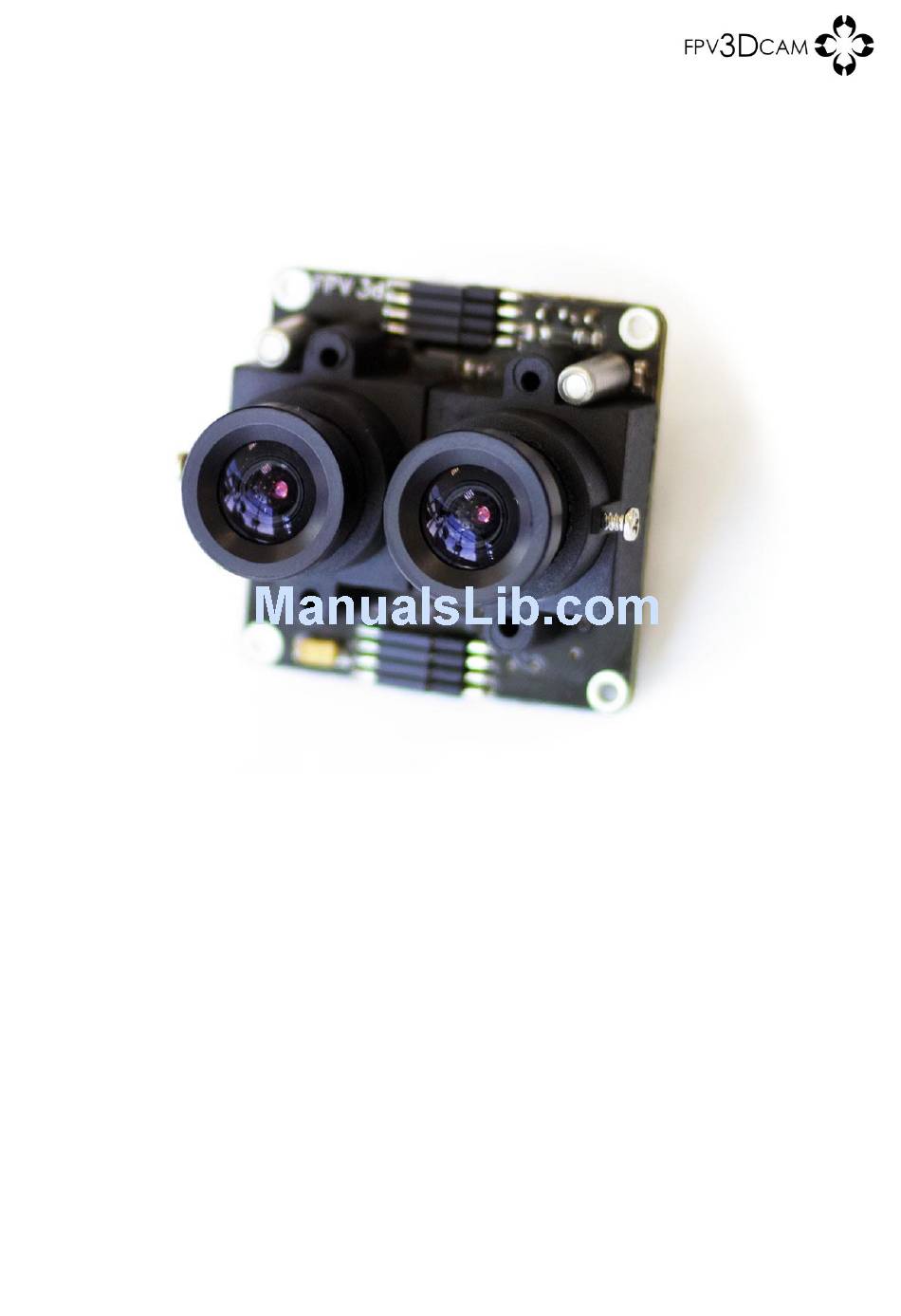

- Page 1 3D FPV camera The BlackBird 1 User manual...
-
Page 2: Table Of Contents
3D FPV camera The BlackBird 1 User manual Table of contents Description and operation ....................2 Product description ......................2 Specifications ........................2 Equipment ......................... 3 Construction ........................4 Device and operation ..................... 5 Adjustment instrument, tools and accessories ............5 Intended use ........................ -
Page 3: Description And Operation
3D video goggles, you can use an analog video transmitter. Recording is done with the help of video capture devices. The main area of use BlackBird 1 - FPV (first person view), as the steering cameras on radio-controlled model quadrocopter, airplane, car, robot platform. -
Page 4: Equipment
Connection cable – application allows you to post board BlackBird 1 at a distance of 20 cm, thereby increasing the stereo base. 1 part Plugs into the lower board-to-board connector of main and additional board of the camera... -
Page 5: Construction
3D FPV camera The BlackBird 1 User manual 1.4 Construction Table 3 front view № name number (parts connected) Picture 1a Printed circuit Board part 1 - main 1 part Printed circuit Board part 2 - additional 1 part Mounting hole... -
Page 6: Device And Operation
3D FPV camera The BlackBird 1 User manual The product consists of the printed-circuit board with the electronic components and lenses which are installed on it. The board of the camera consists of two parts, the main (1) and additional (2). On the main part there are the interface (10) and board-to-board connectors (7). -
Page 7: Intended Use
2.2 Preparing for use Connect video and power Before you begin, you need to connect the BlackBird 1 output to a video playback device or a video transmitter , and also to a power source. To do this, connect the interface cable to the interface connector of the BlackBird 1. - Page 8 3D FPV camera The BlackBird 1 User manual Do not connect the video output jack to the audio input. Usually this RCA red or white jacks. It does not cause damage, but the image on the monitor / stereo video goggles will not show.
-
Page 9: Product Use
3D FPV camera The BlackBird 1 User manual 2.3 Product use Camera that is configured and correctly connected starts immediately after power- up. Led (see Table 3, position 8) indicates that power is supplied. Before long use of the camera, you have to verify the absence of vertical offsets. For... -
Page 10: Configuring Convergence
3D FPV camera The BlackBird 1 User manual 3.3 Configuring convergence Convergence is the angle between the optical axis of the lens and the left and right camera. If the optical axis of the lens intersect on a monitored object, in this place will be missing the horizontal offset of the image.
