Summary of Contents for ICT TS-0698
-

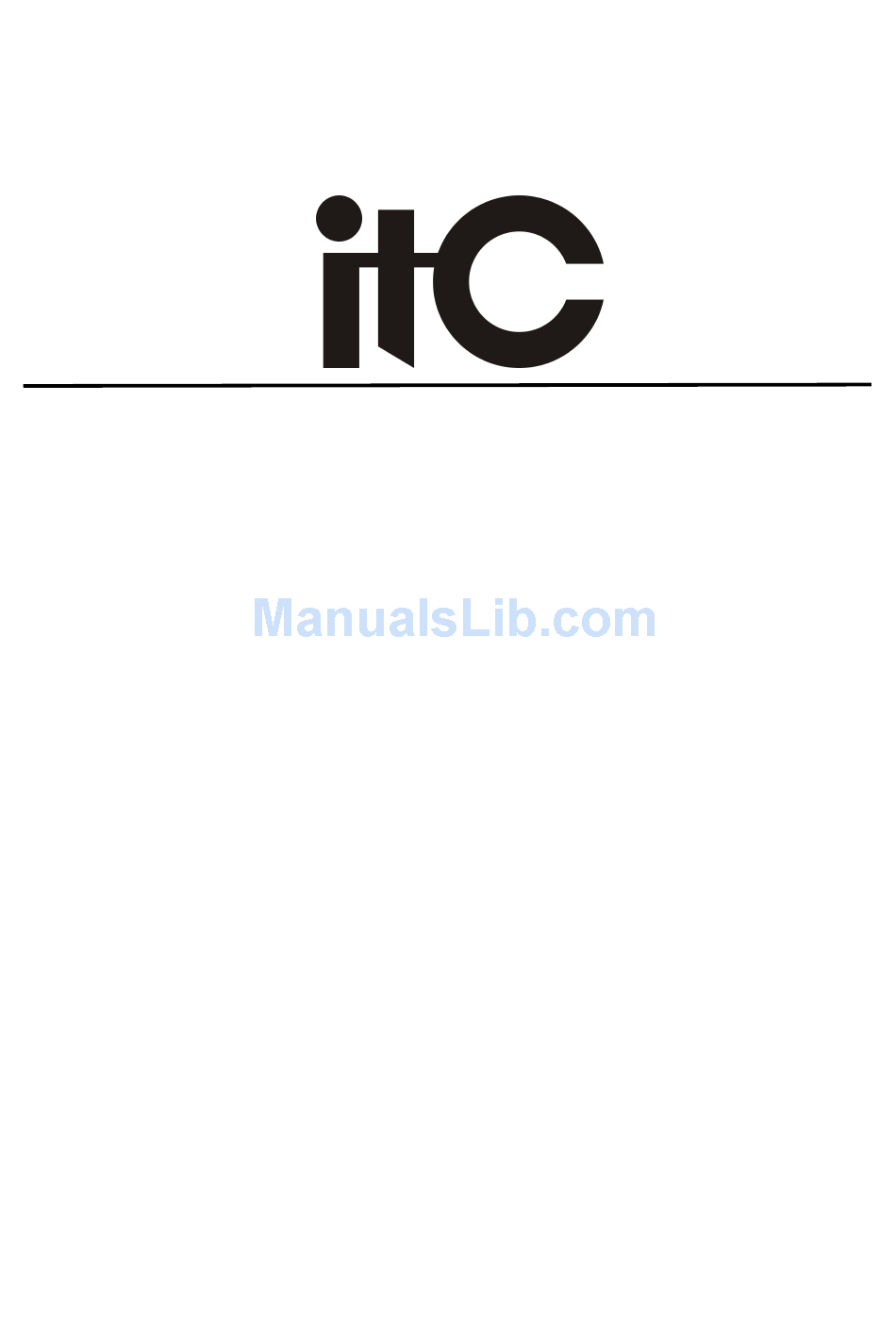

Page 1: User Manual
Intelligent digital conference system User Manual TS-0698 Please Read This Manual Before Operation... - Page 2 NOTE: This manual only as an instructions for user, not for service purposes. From the date of issue, if the function or technical parameters change later, another supply mentary instruction will be added, the details can be inquired to the manufacturers. This manual is a product manufacturer Copyright, unauthorized and any entity or individual shall not take part or all the contents as commercial purposes.
- Page 3 SAFETY OPERATIONAL GUIDANCE In order to make sure the correct operation and safety using, please comply with the following conditions when installation, operating and maintenance. (3) Make sure the connection of the ground wire is well enough when installation. Do not use two-core plug. And make sure the input voltage of power supply is as same as the one marked on the main controller.
- Page 4 1. Overview About ITC digital conference system Intelligent digital conference system is another high-tech professional product series after the control system and multimedia audio and video matrix product including discussion, which including discussion unit, simultaneous interpretation, the infrared voice distribution, long-distance telephone meeting, voting , and camera tracking system.
- Page 5 TS-0698 Mainframe for camera shooting and tracking Product Overview TS-0698 is a high definition mainframe for camera shooting and tracking, working with TS-0604M and TH-0802H conference system in order to achieve automatic camera shooting and tracking. A HDMI 5x1 matrix is built in, which has the function of image -freezing and can support 5 vidicons at most.
- Page 6 Illustration for the introduction of function Front panel 1. HDMI signal input indicator light 2. Power switch 3. Power light Real panel 4. Power input, support AC100-240V input 5. Ground terminal 6. HDMI INPUTS —Connected with five channel HDMI signal input. If video channel to electricity after plug wire first, then the default minimum video output channel number, such as: at the same time input 2, 3, 4 video source output 2 way to OUT.
-
Page 7: Specification
Specification Model TS-0698 Power supply AC100-240V 50/60Hz Max power consumption Video signal bandwidth 1.65GHz Video input signal electronic level 1.2 volts p-p DCC input signal electronic level 5 volts p-p (TTL) Single channel connection signal range 1080p/1920x1200 HDMI Connector Type A needle 19 female head... - Page 8 protocol, baud rate and camera type from the camera tracking controller. Please check if the settings of the protocol, baud rate and camera type are as same as the real connection settings. Dial the 1 bit to select VISCA protocol. Dial the 2 bit to select SAMSUNG protocol.
- Page 9 4. Pre-setting, delect and setting of the ceiling camera Selecting the right camera protocol (setting in the unit), input the camera address and pre-setting position to begin the operation of controlling. 5. Setting the pre-setting of the delegates 1) Selecting the right protocol, camera address, pre-setting position and delegate address, adjusting the camera position through the “UP-DOWN-RIGHT-LEFT”...
- Page 10 5.2 Controlling the different address cameras Changing the phisical address of the cameras and controlling the rotation from the PC software to realize mutiple cameras on-line using. 5.3 System on-line testing Connecting two conference controllers, 9 units of TS series delegates, 9 units of TH series delegates and the PC, then turn on the PC software.
- Page 11 Testing information table of TS-0698 (√ means the testing function is valid; －－ means the testing fuction is invalid. ) TS series TS series Serial port Channel control tracking tracking control switching VISCA protocol √ √ √ √ －－ SAMSUNG －－...
