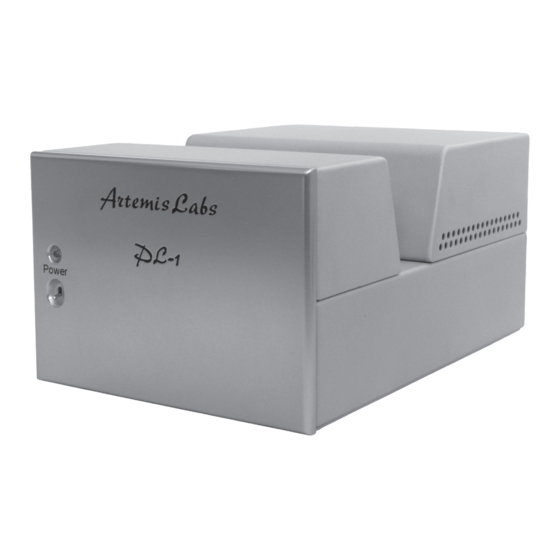

Artemis Labs PL-1 Operating Manual

Phono preamp for low-output cartidges
Hide thumbs

Advertisement

Table of Contents

Artemis Labs PL-1
Phono Preamp for Low-Output Cartidges
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Artemis Labs PL-1

Summary of Contents for Artemis Labs PL-1

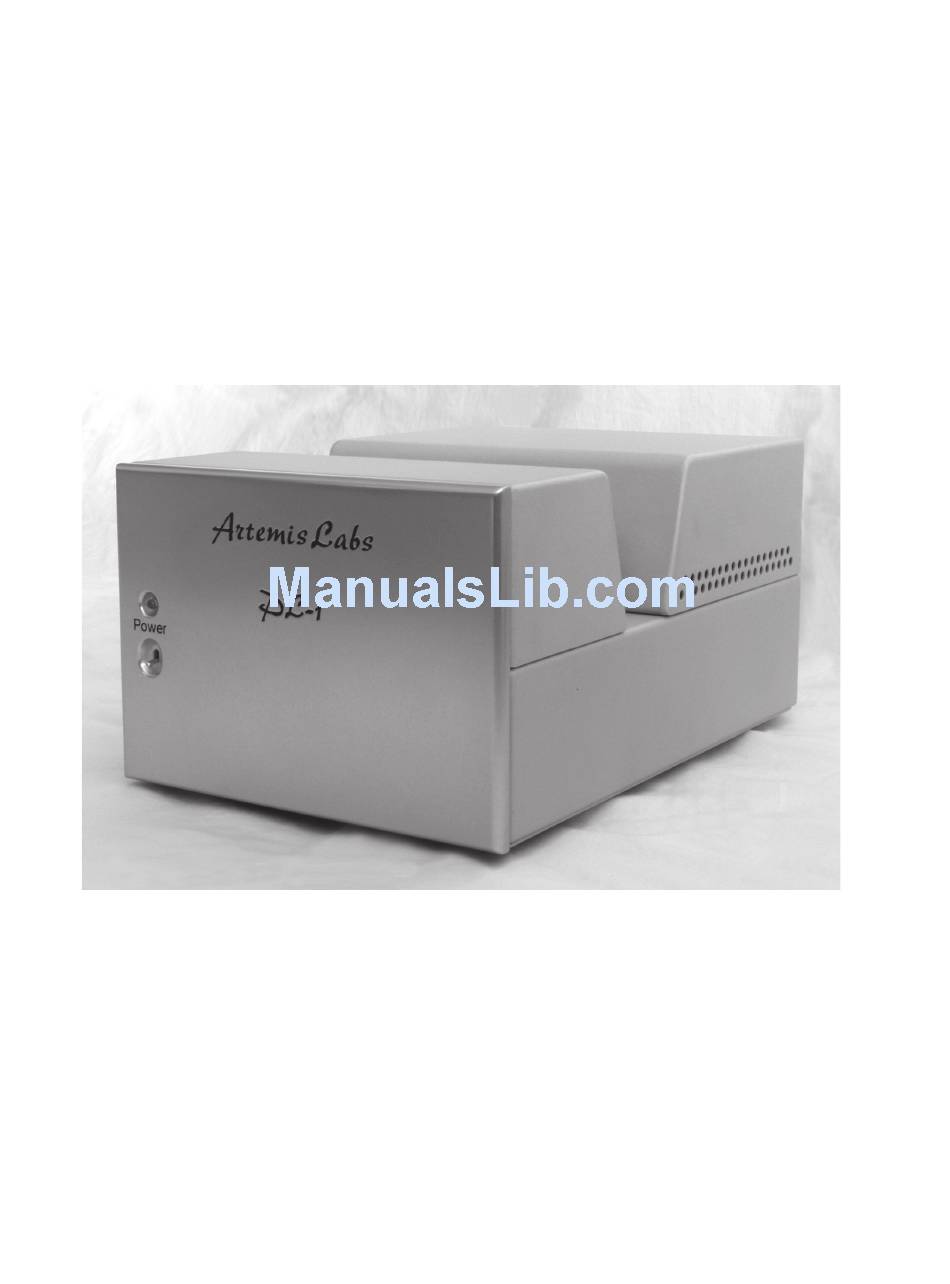

  • Page 1 Artemis Labs PL-1 Phono Preamp for Low-Output Cartidges Operating Manual...

  • Page 2: Important Safety Instructions

    Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instruc- tions.
  • Page 3 Please read this entire user’s manual so that you can understand all the features and get the most from the PL-1. The Warranty is on a separate card. Read it and send it in to get full war- ranty coverage.

  • Page 4: Front Panel

    40 seconds, will glow green. About 4 second after that a faint click will be heard, indi- cating the muting relay turning off. The PL-1 is now ready for use. If the power is removed, even briefly, then restored, the warm-up time delay process will start over again.
  • Page 5 (100 × required value) All moving-coil cartridges require a load resistance, and sometimes a load capacitance. The PL-1 allows the opti- mum load to be selected by inserting the load resistors or capacitors into the ZIF Socket. The 3M TexTool® ZIF (Zero Insertion Force) Socket, originally designed for the semiconductor industry, provides a convenient way to attach additional shunt resistors or capacitors.
  • Page 6 Although not identical in characteristics to the 5687, the fol- lowing tubes can also be used in the PL-1 in place of the 5687: Tube Types: The tube manufacturer and tube type 6900, 7044, 7119, and E182CC. If you try these, listen carefully will have an effect on the sound of audio equipment.

  • Page 7: Technical Features

    Strong triode output driver with choke loading R-C filter using a 15µF polypropylene capacitor. This The output stage in the PL-1 uses the 5687 triode. insures minimum noise without the sonic degrada- This tube has excellent linearity. Its low plate resis- tion of electrolytic capacitors.
  • Page 8 No troublesome integrated circuits Despite the lack of a cathode-follower output stage, All time delay and regulation circuits use time- the PL-1 can drive loads as low as 12K while still proven, simple discrete semiconductor devices. meeting specifications. This is important when...
