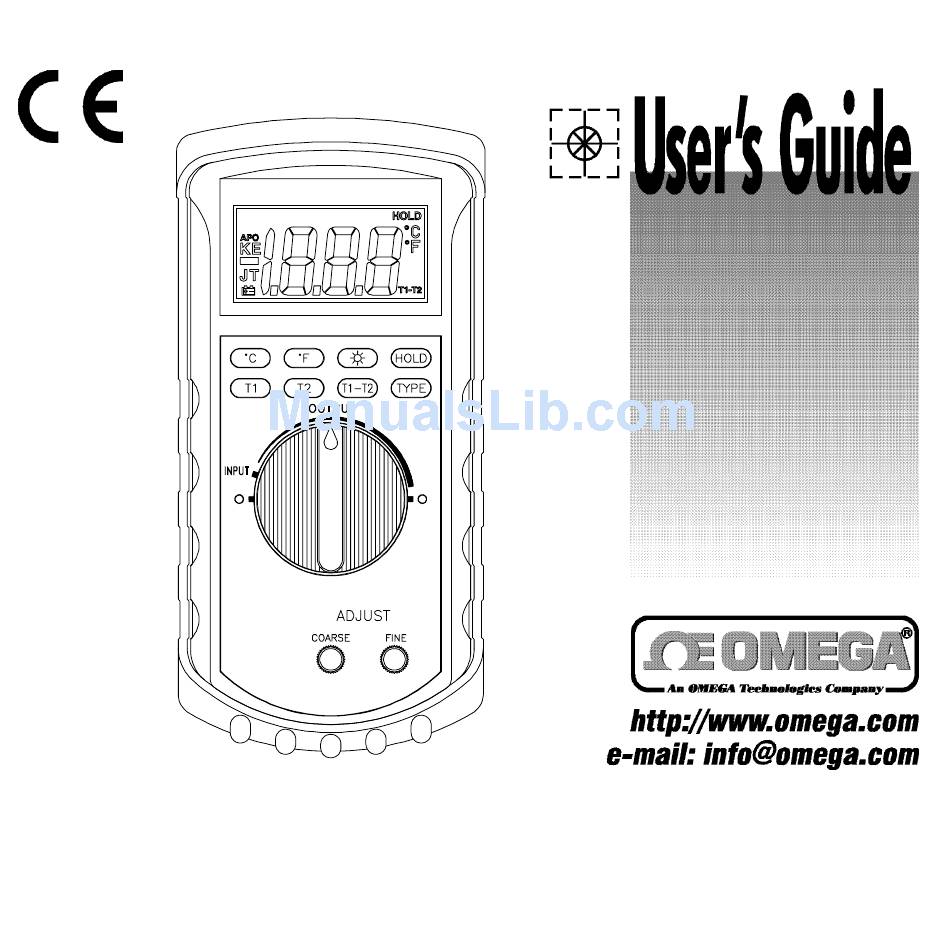

- Page 1 Digital Thermometer & Calibrator Digital Thermometer & Calibrator Digital Thermometer & Calibrator Digital Thermometer & Calibrator Digital Thermometer & Calibrator CL3512A CL3512A CL3512A CL3512A CL3512A...
- Page 2 OMEGAnet http://www.omega.com USA: ISO 9001 Certified One Omega Drive, Box 4047 Stamford, CT 06907-0047 Tel: (203) 359-1660 FAX: (203)359-7700 e-mail: info@omega.com For immediate technical or application assistance: USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA Customer Service: 1-800-622-2378 / 1-800-622-BEST Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA Benelux:...
-
Page 3: Table Of Contents
1.0 Introduction 1.1 Safety Information 1.2 Unpacking 2.0 Operation Procedure 2.1 Unit Drawing 2.2 Description of Buttons and Switches 2.3 Read Mode Procedure 2.4 Source Mode Procedure 3.0 Operator Maintenance 4.0 Specifications 5.0 Calibration Procedure Table of contents... -
Page 4: Introduction
CL3512A calibrator/thermometer is two meters in one. The CL3512A simulates type J/K/T/E thermocouple signals. Each signal is adjustable by using the coarse and fine dials. The CL3512A can also be used as a dual type J/K/T/E thermocouple input thermometer. Features include a large 3½... -
Page 5: Unpacking
After examining and removing contents, save the packing material and carton in the event reshipment is necessary. The following is supplied in the box: • CL3512A • Rubber boot • 2 K beaded wire thermocouples • K calibration cable •... -
Page 6: Operation Procedure
2.0 Operation Proceedure 2.1 Drawing of Unit Actual Dimensions: 195mm(H) x 92mm(W) x 53mm(D) -
Page 7: Description Of Buttons And Switches
Temperature is displayed in either degrees Celsius(°C) or degrees Fahrenheit(°F). When the thermometer is turned on, it is set to the temperature scale that was in use when the thermometer was last turned off. To change the temperature scale, press the °C or °F key. - Page 8 The input selection indicates which input is selected; T1 thermocouple, T2 thermocouple or the difference between the two thermocouples (T1-T2).When the thermometer is turned on, it is set to the temperature input that was in use when the thermometer was last turned off.
-
Page 9: Read Mode Procedure
HOLD again. Note: Unit will display -OL if input is out of range or thermocouple is broken or not connected to proper input. To save battery life, CL3512A will turn off automatically if no is key is pressed for 70 minutes. -
Page 10: Source Mode Procedure
2.4 Source Mode Procedure (Calibration Simulation) 1. Turn CL3512A on by turning selector switch to any one of the output selector positions. 2. Press T1 button. 3. Select thermocouple type (J, K, T or E) using type button. Select °C or °F using °C or °F buttons. - Page 11 Source Mode Diagram...
-
Page 12: Operator Maintenance
3.0 Operator Maintenance WARNING To avoid possible electrical shock, disconnect the thermocouple connectors from the thermometer before removing the cover. Battery Replacement Power is supplied by a 9 volt "transistor" battery. The " " appears on the LCD display when replacement is needed. To replace the battery, remove the two screws from the back of the meter and lift off the battery cover. -
Page 13: Specifications
4.0 Specifications ELECTRICAL Temperature Scale: Celsius or Fahrenheit user-selectable Measurement Range: Thermocouple K-TYPE(0.1°C) J-TYPE(0.1°C) T-TYPE(0.1°C) E-TYPE(0.1°C) Calibration Range: -210°C to 1372°C, (-364°F to 1999°F) Auto range: 0.1°C/1°C , 0.1°F/1°F Accuracy: Accuracy is specified for operating temperatures over the range of 18°C to 28°C (64°F to 82°F), for 1 year, not including thermocouple error. - Page 14 GENERAL Display: digit liquid crystal display (LCD) with a maximum reading of 3½ 1999. Polarity: Automatic,positive implied,negative polarity indication. Overrange: -OL is displayed. Zero: Automatic. Low battery indication: the" drops below the operating level. Measurement rate: 1 times/second. Accuracy: Stated accuracy at 23°C±5°C,<75% relative humidity. Dimensions: 195mm(H) x 92mm(W) x 53mm(D).
-
Page 15: Calibration Procedure
5.0 CL3152A Calibration Procedure Note: The following calibration procedure should be performed only by qualified technicians who have access to the items as following items: Equipment: 1) A very accurate millivolt source. 2) A TRC III ICE Point Reference or ice bath with type Input Funtion "Calibration"... - Page 16 "Simulated Output" Test 1. Turn the knob "COARSE" right to the end, knob of RANGE turn right to the last two position, press "TYPE" key to select "TYPE-E", if display does not show "OL" then adjust VR4 slowly to make display ="OL" (Note: Take care not to adjust VR4 too far).
- Page 17 CL3512A CALIBRATION PROCEDURES Note: The following calibration procedure should perform only by qualified technicians who have access to the items as following. Equipment: The class of calibrator had better 10 times greater than the measured meter. INPUT FUNTION CALIBRATE 1. Before turn on the meter, turn the RANGE knob to position "INPUT" and then move short pin to upper two pin of J5 which is at the left upper of PCB.
- Page 18 OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA Warranty adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time.
