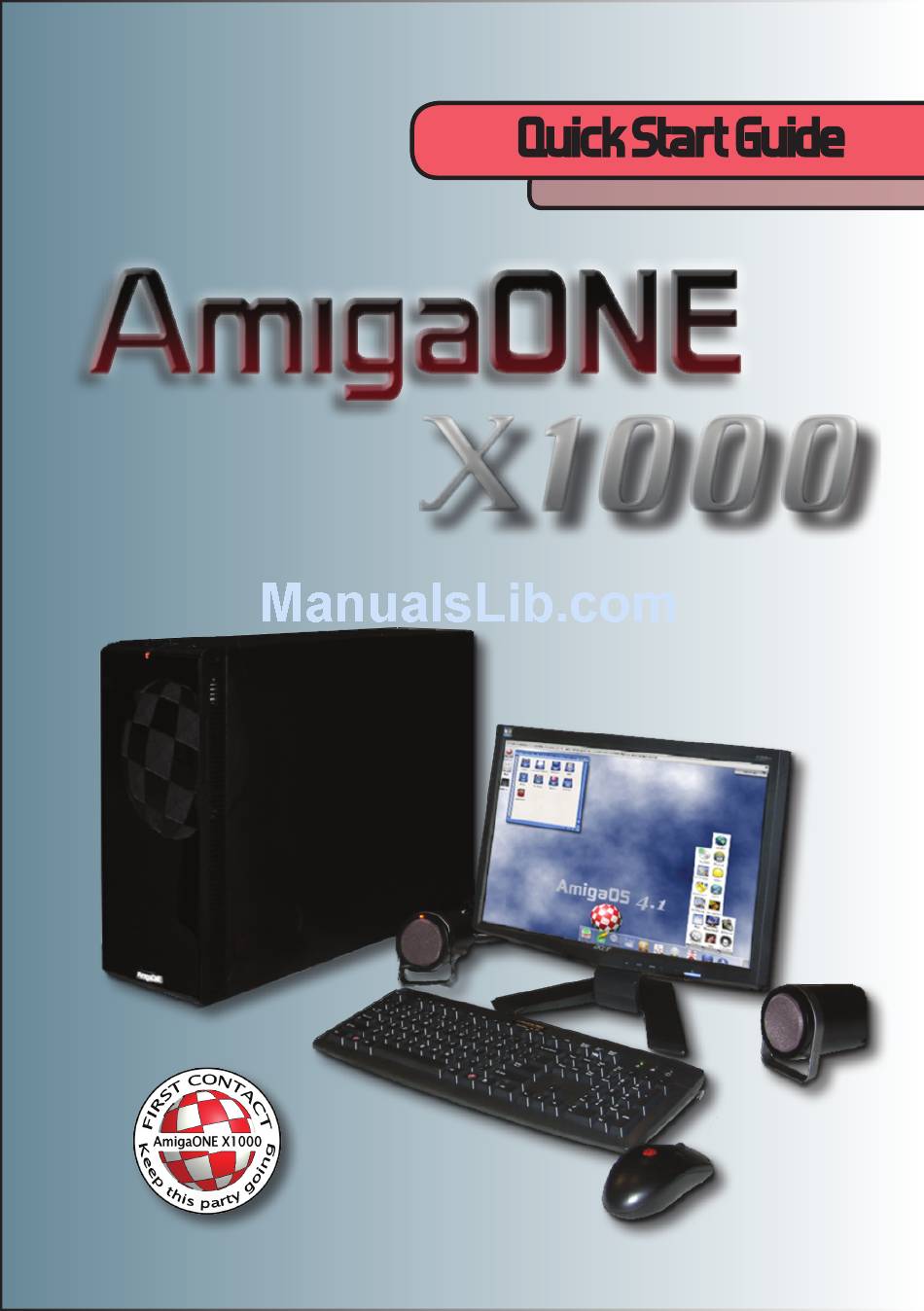

  • Page 1 Quick Start Guide AmigaONE X1000 First Contact System...
  • Page 2 Carl Moppett 1st edition - December 2011 “AmigaONE X1000 Quick start Guide” (c) 2011 A-EON Technology. All of the content contained therein (including all text, graphics and hints) is covered under US and EU copyright and trademark laws by A-EON Technology and other companies, and are property of A-EON Technology or are presented with permission and/or under license.

  • Page 3: Limited Warranty And Disclaimers

    Warranty and Disclaimer Limited Warranty and Disclaimers The AmigaONE X1000 hardware carries a one year limited return-to-base warranty. This covers against product failure due to sub-standard manufacturing of the goods. The warranty does not cover: accidental damage, incorrect product installation, inappropriate product use, electrical surge damage, electrostatic discharge damage, product abuse, cosmetic damage and wear-and-tear.

  • Page 4: Table Of Contents

    Tips and Tricks – Advanced Users ............11 Memory .................11 Peripherals ................11 Hard Drives and Optical Drives ............12 Debugging ................12 Miscellaneous ................13 Troubleshooting ................14 How to get Support ................15 AmigaKit official AmigaONE X1000 distributor ........15 Official Hyperion Support forums ...........15 Official AmigaOS Website ............15...

  • Page 5: Welcome

    Thank you for purchasing the “First Contact” AmigaONE X1000 system, the most powerful “Next Generation Amiga” computer custom designed to run AmigaOS. The AmigaONE X1000 is not like other computers. It is a culmination of efforts by real Amiga enthusiasts and developers to create modern desktop hardware for the Amiga Operating System.

  • Page 6: Introduction

    AmigaOS 4.1. yStem pecificationS The AmigaONE X1000 First Contact system includes as the centre piece the “Nemo” 2.1 X1000 motherboard. This board has been designed specifically to be the fastest next-generation Amiga ever made. The AmigaONE X1000 First Contact system includes as standard: •...

  • Page 7: What Is In The Box

    PCI add-on audio and ethernet cards. Please be aware that drivers for the X1000 system are a work-in-progress and updates will be made available. See the “How to get Support” section for information on obtaining future updates.
  • Page 8 AmigaONE X1000 Quick Start Guide Introduction In addition, the X1000 motherboard has headers for two RS-232 serial ports (mainly used only for debugging), two front USB ports, a front panel Audio connector, a CD audio connector, a PLD JTAG Header, various fan headers and a standard 24-pin ATX 2.3 power connector.

  • Page 9: Getting Ready For First Start

    Connect your monitor’s white DVI connector to the graphics card DVI connector in the expansion slot area at the rear of the X1000 case. Ensure the DVI connector is firmly attached to the X1000 DVI connector. If you are using a 15-pin blue VGA connector, ensure the connector is firmly attached to the back of the X1000 VGA connector.

  • Page 10: Connecting Speakers And Network

    PCI sound card and not the back of the X1000 motherboard. Connect your Network cable to the RJ45 connector to the PCI network card - not to the back of the X1000 motherboard. At a later date, when the motherboard sound and network drivers are ready, you will be able to move the cables to the motherboard ports.

  • Page 11: Starting Amigaos 4.1

    If you selected to start AmigaOS 4.1 from the Boot menu, the AmigaONE X1000 system will boot AmigaOS 4.1 from the hard disk. Before AmigaOS 4.1 loads, you will see a second boot menu which is the OpenFirmware AmigaBoot menu. That will allow you to select different AmigaOS 4.1 boot options or boot from the AmigaOS 4.1 CD.

  • Page 12: Hard Drives And Optical Drives

    Until they are available, please use the Ethernet and Audio PCI cards provided with your AmigaOne X1000. Once the new drivers for the motherboard Ether- net and Audio has been released, then you will be able to remove the provided cards.

  • Page 13: Miscellaneous

    “RS232 #0” and “RS232 #1” on the Amiga- ONE X1000 motherboard. You can buy a cable from Amigakit or make one up easily that will connect to those connectors and provide a standard 9 pin serial connection.

  • Page 14: Troubleshooting

    Q: My keyboard isn’t working in the CFE firmware? A: Ensure it is connected to the proper USB port, which is the bottom port beside the Audio connectors on the rear of the X1000 motherboard. See “Getting Ready for First Start” at the beginning of this guide.

  • Page 15: How To Get Support

    If you need specific AmigaONE X1000 support please contact the AmigaONE X1000 distributor, AmigaKit. They can be reached online at http://www.amigakit.com/sup- port. On the website click on the Support link and login. If you do not have a customer login, please create one.
  • Page 16 AmigaONE X1000 First Contact Quick Start Guide © 2011 A-EON Technology All rights reserved. All trademarks are owned by their respective owners.
