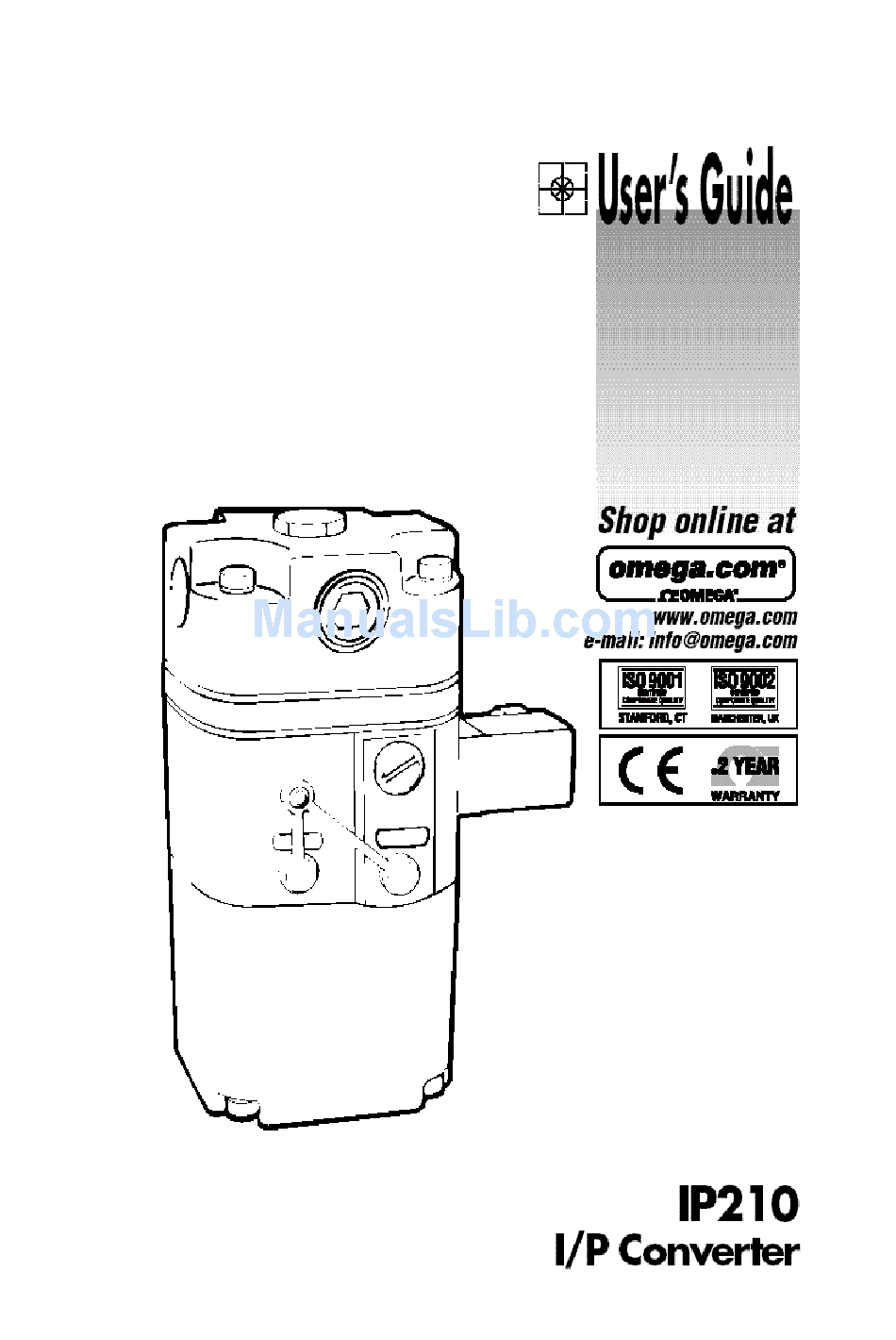

Omega Engineering IP210 User Manual

I/p converter

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP210 and is the answer not in the manual?

Questions and answers

Summary of Contents for Omega Engineering IP210

  • Page 3: Installation

    IMPORTANT INSTALLATION 1. Dimensions in mm 2. Requirements -40ºC +80ºC Protection IP65 in operating conditions To conform with the Health and Safety at Work Act 1974 our product should be installed, used and maintained in accordance with: 1 Normal Safety Procedures 2 The installation and operating instructions provide for each instrument.
  • Page 4: Mounting Dimensions

    INSTALLATION (continued) 3. Fixing 2 screws Mounting Bracket Pipe Mounting Kit (option) Remove screws (ii) Remove bracket (iii) screw in new bracket (iv) clamp to pipe Tighten nuts Ø 50mm nominal 4. Mounting Dimensions...
  • Page 5 5. Make Pneumatic Connections Soft sealing anaerobic hydraulic seal E.g. Loctite hydraulic seal 7. Expose Terminals 8. Insert Cable Cable ø 6 to 8 10. Air Supply BS 6739: 1986 Dust < 5 micron Oil: < 1ppm mass Pressure: 1 bar > P2 Dewpoint at least 10ºC below minimum anticipated ambient temperature...
  • Page 6 11. Calibration When the instrument is first installed , or after a long period of downtime, a moderate zero shift is normal. This is due to the rubber diaphragms which are stretched by the internal springs. After a few operations, the instrument will settle into its normal operating condition.
  • Page 7: Maintenance

    12. Maintenance Care must also be taken to re-align transfer passages correctly during reassembly of the instrument. Routine maintenance consists of replacing the restrictor screw if the internal orifice becomes blocked. Parts Breakdown...
  • Page 8: Troubleshooting Guide

    13. Product Variations 3 Wire Versions These are products designed for electrical control signals which differ from the normal 4-20. 0- 60mA signals. An internal amplifier is fitted to translate the control signal into the required current through the coil. An external 12V-24V DC signal is required to power the amplifier, which should be capable of providing 25mA (low pressure) or 65mA.
  • Page 10 M-1438/09/02...
