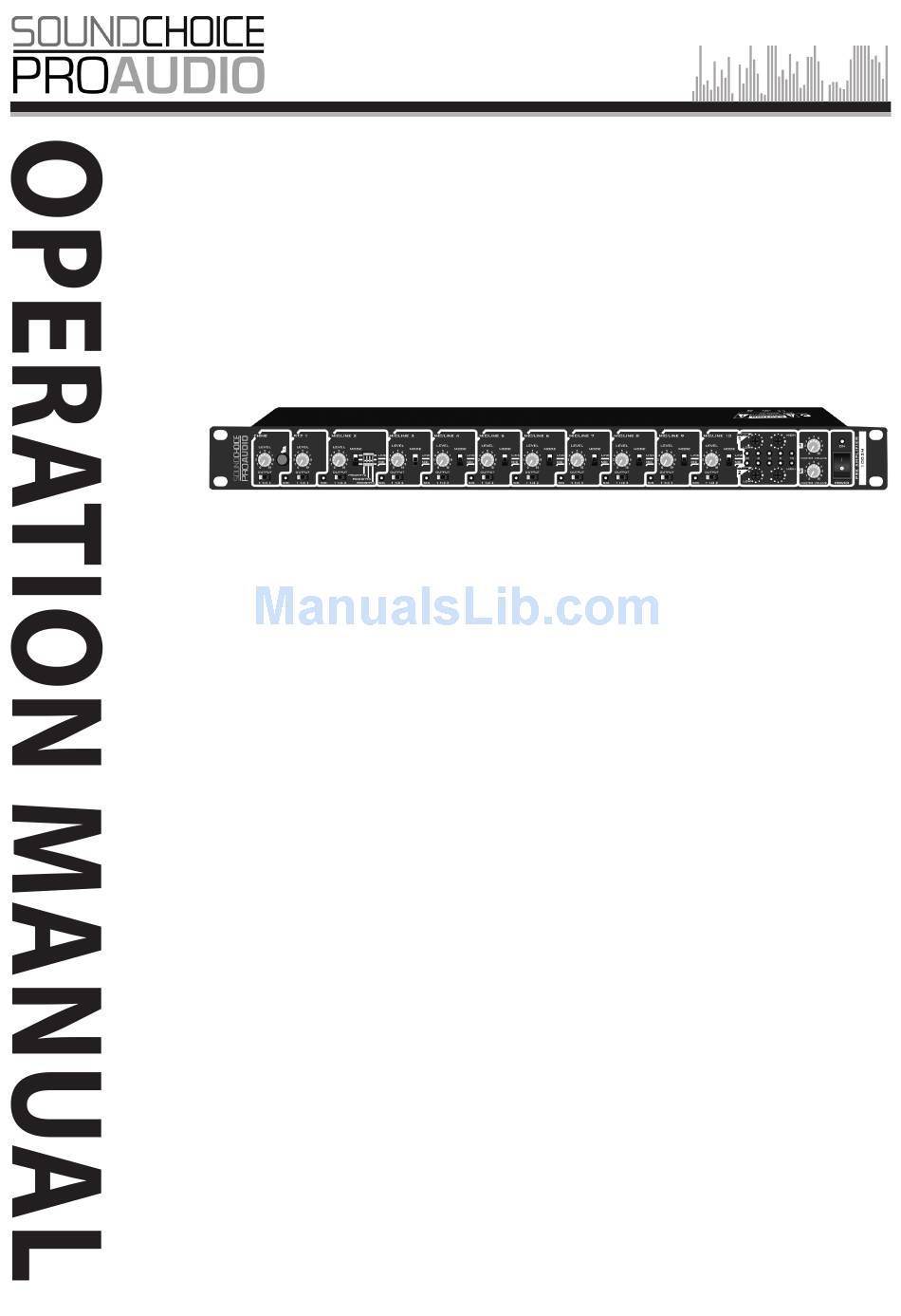

- Page 1 1002M | Pre Amplifier COMMERCIAL SERIES Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Precautions Attention General Description Features Functions - Front Panel - Rear Panel Connection Diagram Block Diagram Specifications Installing Method page 2 1002M Pre-Amplifier www.scpaudio.com Sound Choice Pro Audio... -
Page 3: Safety Precautions
AC outlet and contact your nearest Sound Choice dealer. Make no further • Use the unit only with the voltage specified on the unit. attempt to operate the unit in this condition as this may Using a voltage higher than that which is specified may cause fire or electric shock. -
Page 4: Attention
• Do not block the ventilation slots in the unit’s cover. • Contact your Sound Choice dealer as to the cleaning. Doing so may cause heat to build up inside the unit and If dust is allowed to accumulate in the unit over a long result in fire. -
Page 5: General Description
The 1002M comes in a very convenient 1U rack size making it ideal for small to medium Public Address and Sound Systems. The 1002M is a very functional device catering for a number of different simultaneous inputs:1 remote paging microphone... -
Page 6: Functions
XLR. DIP SWITCH PRIORITY MIC/LINE 2-4 When signal is applied to MIC/LINE 2-4, and the Dip switch is “ON”, input signal to MIC/LINE 5-10 will be closed. page 6 1002M Pre-Amplifier www.scpaudio.com Sound Choice Pro Audio... -
Page 7: Front Panel
13. MIC/LINE 2-6 INPUTS MIC/LINE balanced input can be selected by a mode switch in the front panel. IMPORTANT NOTICE: Please ensure the volume is turned right down before connecting a cable. Sound Choice Pro Audio www.scpaudio.com 1002M -Pre-Amplifier page 7... -
Page 8: Rear Panel
6. CONNECTION DIAGRAM Rear Panel Connections page 8 1002M Pre-Amplifier www.scpaudio.com Sound Choice Pro Audio... -
Page 9: Block Diagram
7. BLOCK DIAGRAM Sound Choice Pro Audio www.scpaudio.com 1002M -Pre-Amplifier page 9... -
Page 10: Specifications
LINE: more than 0.03% Cross-talk MIC: more than 60dBu LINE: more than 75dBu Power Consumption 13W at ~240V/50Hz Dimensions (mm) 484 x 378 x 44 Net Weight 5.52Kg Gross Weight 6.65Kg page 10 1002M Pre-Amplifier www.scpaudio.com Sound Choice Pro Audio... -
Page 11: Installing Method
NOTE: Please ensure that the unit has at least a 10cm gap from any object on all sides, so as not obstruct the air flow and cause the unit to overheat. Sound Choice Pro Audio www.scpaudio.com 1002M -Pre-Amplifier page 11... - Page 12 0.1 www.scpaudio.com page 12 1002M Pre-Amplifier www.scpaudio.com Sound Choice Pro Audio...
