Summary of Contents for Ermator S26
-
Page 1: Operating Instructions

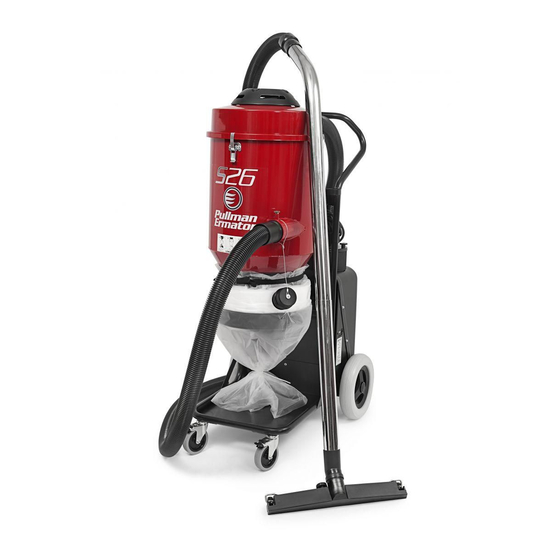

OPERATING INSTRUCTIONS Dust Extractor AMPS 19.6 120 VOLT AMPS 9.8 230 VOLT CFM 258 READ ALL INSTRUCTIONS BEFORE USING... - Page 2 Dear Customer, Thank you for choosing Ermator as your supplier. We hope that the Ermator S26 dust extractor will be to your satisfaction and meet your expectations. Ermator has been manufacturing professional dust extractors since 1967 and has over the years acquired a genuine technical knowledge in this area.
-
Page 3: Safety Instructions
1. UNPACKING When unpacking the machine, please check that the following accessories are included: The hose with end fittings. • Handle. • Floor nozzle. • If any of the above-mentioned parts are missing, please contact your local distributor or our sales representative. - Page 4 Mount the holder on to the machine and strap the upwards end with the belt. Pull down to outside end and close it using a stripe. The machine can be used with original Ermator dust bag for single use. Only change Longopac or bag after jet pulsing the filter 6.
- Page 5 9. PROBLEM SOLVING The S26 is designed and manufactured for a severe environment and tasks, but the user must note that the machine must be protected from knocks and blows. Filter, seals, attachments, and connections are carefully adapted and selected with regard to the operator’s work environment.
- Page 6 Problem Cause Procedure Motor does not start No power Connect the machine Cable defective Change Switch defective Change Motor stops immediately Wrong fuse Connect to correct fuse after starting Motor runs but there is no Hose not connected Connect hose suction Hose blocked Clean hose...
- Page 7 TECHNICAL DATA (S26/120V) VOLTAGE 230 VAC, 1-phase (120VAC, 1-phase) POWER 2x1200 W max (2x1200W) MAX AIRFLOW 400 m³/h 158 cfm MAX VACUUM 22 kPa 26 kPa HOSE 7,5m x ∅ 50mm 25’x ∅ 2” INLET ∅ 63mm ∅ 2,5” MAIN FILTER >99.5%...
- Page 8 OM ÖVERENSSTÄMMELSE DECLARATION OF CONFORMITY DECLARATION DE CONFORMITÉ ERKLÄRUNG DER ÜBERSTIMMUNG SAMSVARSERKLÆRING Pullman Ermator AB Industrivägen 10 S-777 34 SMEDJEBACKEN Försäkrar under eget ansvar att maskinen Declare under our sole responsibility that the machine Certifie sous sa propre responsabilité que le produit ciaprès...
- Page 9 S26 230 V, S26 120V S26 230 V, S26 120V Revision 0...
- Page 10 POS. QTY. NUMBER DESCRIPTION 201000143 TOP COVER ASSEMBLY (ex. S26) 201000118 CLEANING UNIT KIT 200900050 MAIN FILTER (ex. S26) 201000129a TANK COMPLETE (ex. S26 US) 200600799 HOLDER KIT 201000116 FLAP KIT 1371001 BELT ...
- Page 11 ENGINE PACKAGE 230 V Revision 0...
- Page 12 Pos. QTY. NUMBER DESCRIPTION 200700289 LETTER NUT 200700147 COVER 200700070 FILTER 200600080 SEALING 200600084g ENGINE TUBE 230V 201000135 CHASSIS KIT 10423 SWITCH 200700413 MANOMETER, KIT 1361023 CORD SET 1362123 CABLE FIX (PG11) 200600805 ENGINE COVER, KIT 201000133 COUNTER, KIT 1362165 ELECTRICAL FILTER 200700410 SOFT START 230V, KIT...
- Page 13 ! 11 Revision 0...
- Page 14 ENGINE PACKAGE 120 V Pos. QTY. NUMBER DESCRIPTION 200700289 LETTER NUT 200700147 COVER 200700070 FILTER 200600080 SEALING 200600084h ENGINE TUBE 230V 201000135 CHASSIS KIT 10423 SWITCH 200700413 MANOMETER, KIT 1361025 CORD SET 1362184 CABLE FIX (PG13,5) 200600805 ENGINE COVER, KIT 201000133 COUNTER, KIT 200700531...
- Page 15 ACCESSORIES S26 230 V, S26 120 V POS. NUMBER DESCRIPTION 201000061 HOSE 51mm x 7,5m (ex. S26) 1224035 50S STEEL TUBE KIT 1326087 S450 FLOOR TOOL 50mm x 450mm 1340005 AG46A BRUSHES (L=400/445) ! 13...
- Page 16 Notes ______________________ ______________________ ______________________ ______________________ ______________________ ______________________ ______________________ ______________________ ______________________ ______________________ ______________________ ______________________ ______________________ ! 14 Revision 0...
- Page 17 ! 15 Revision 0...
- Page 18 ! 16 Revision 0...
- Page 19 ! 17 Revision 0...
