Summary of Contents for Cablecraft CHT 400

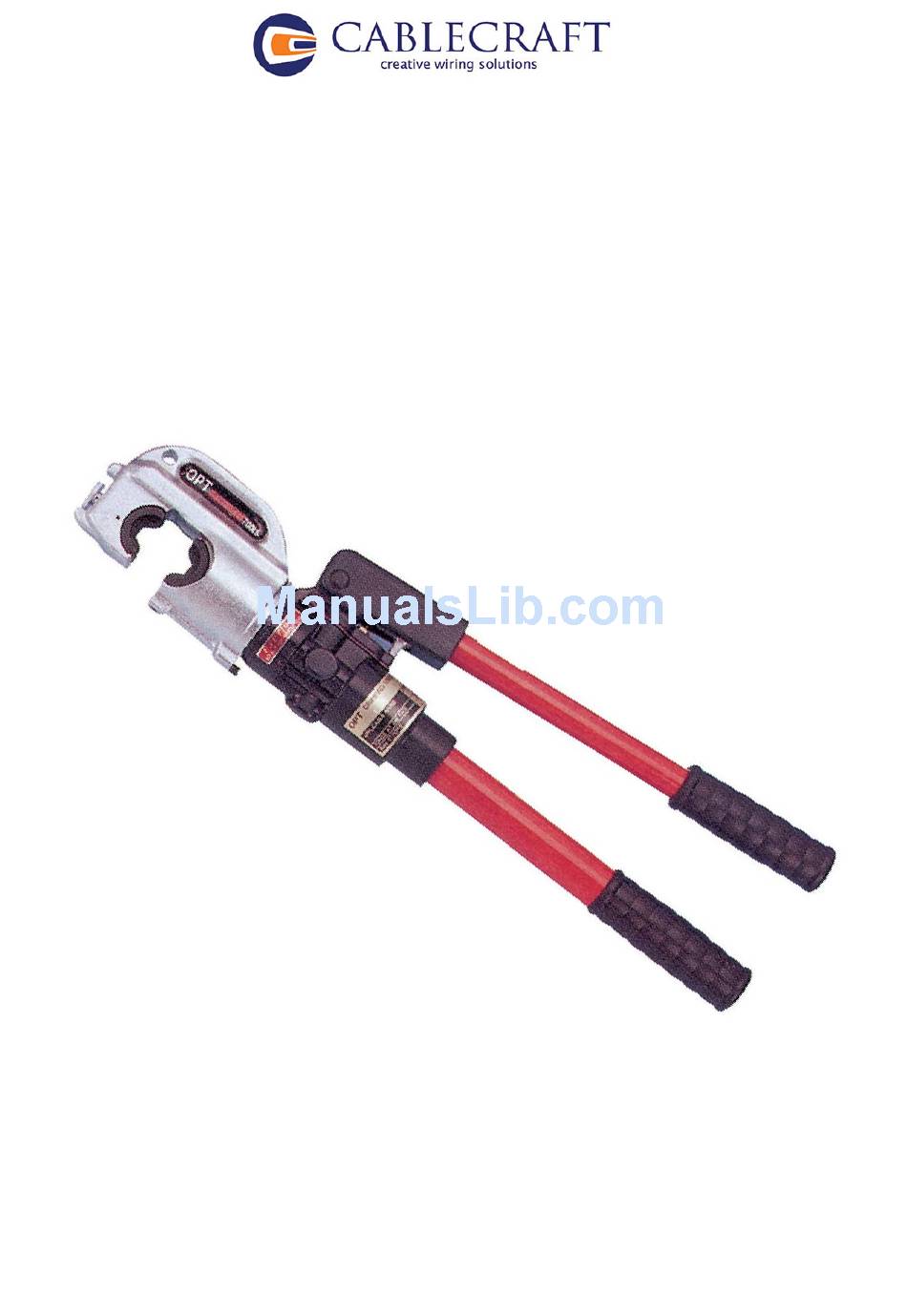

- Page 1 CHT 400 Hydraulic Tool 35 - 400 mm² HYDRAULIC CRIMPING TOOL INSTRUCTION MANUAL...
- Page 2 LENGTH STANDARD: TP-300 TP-400 TP-240 TP-413 OUTPUT 12 Ton 12 Ton 11 Ton 12 Ton PRESSURE 700 kgf 700 kgf 700 kgf 700 kgf WEIGHT 6.5kg 7.7kg 6.3kg LENGTH 610mm 625mm 586mm 602mm WIDTH 68mm 73mm 72mm 76mm HEIGHT 150mm 158mm 158mm 158mm...
- Page 3 CAUTION： l When die is not installed in the tool, please do not operate the tool to avoid damaging the tool. l Please check the ram whether in place or not after using. Avoiding inner spring tired and cannot return. l...
- Page 4 HYDRAULIC CRIMPING TOOL INSTRUCTION MANUAL INSTRUCTION Inset the suitable die as below pictures. ●Attention: Inset suitable die (Please consult P.2) Inset die： Figure 1. Inset / Take out die...
- Page 5 HYDRAULIC CRIMPING TOOL INSTRUCTION MANUAL Inset the die in place, then start pressing. Meanwhile, the die will go forth/ go back for pressing. Please see Figure 2, 3, and 4. ●Attention: ● While pressing, please release the oil as hear sound “Bo”. Go forth Acting the handle for pressing...
- Page 6 HYDRAULIC CRIMPING TOOL INSTRUCTION MANUAL Maintenance & Eliminate breakdown： (1) Maintenance Q & A： 1. Q：Exchange Oil or add Oil. A：Please exchange oil to keep the oil quality that can be prolong its usage age and working well. This tool accepts SHELL TELLUS T-15 hydraulic oil only.
- Page 7 HYDRAULIC CRIMPING TOOL INSTRUCTION MANUAL (2 ) Eliminate breakdown Q & A： 1. Q：How to add oil in the inside of tool when the oil is not full enough? A：What was the cause of shortage of oil inside? <1> It causes the oil evaporated by using for a long period. <2>...
