Summary of Contents for iSport W240

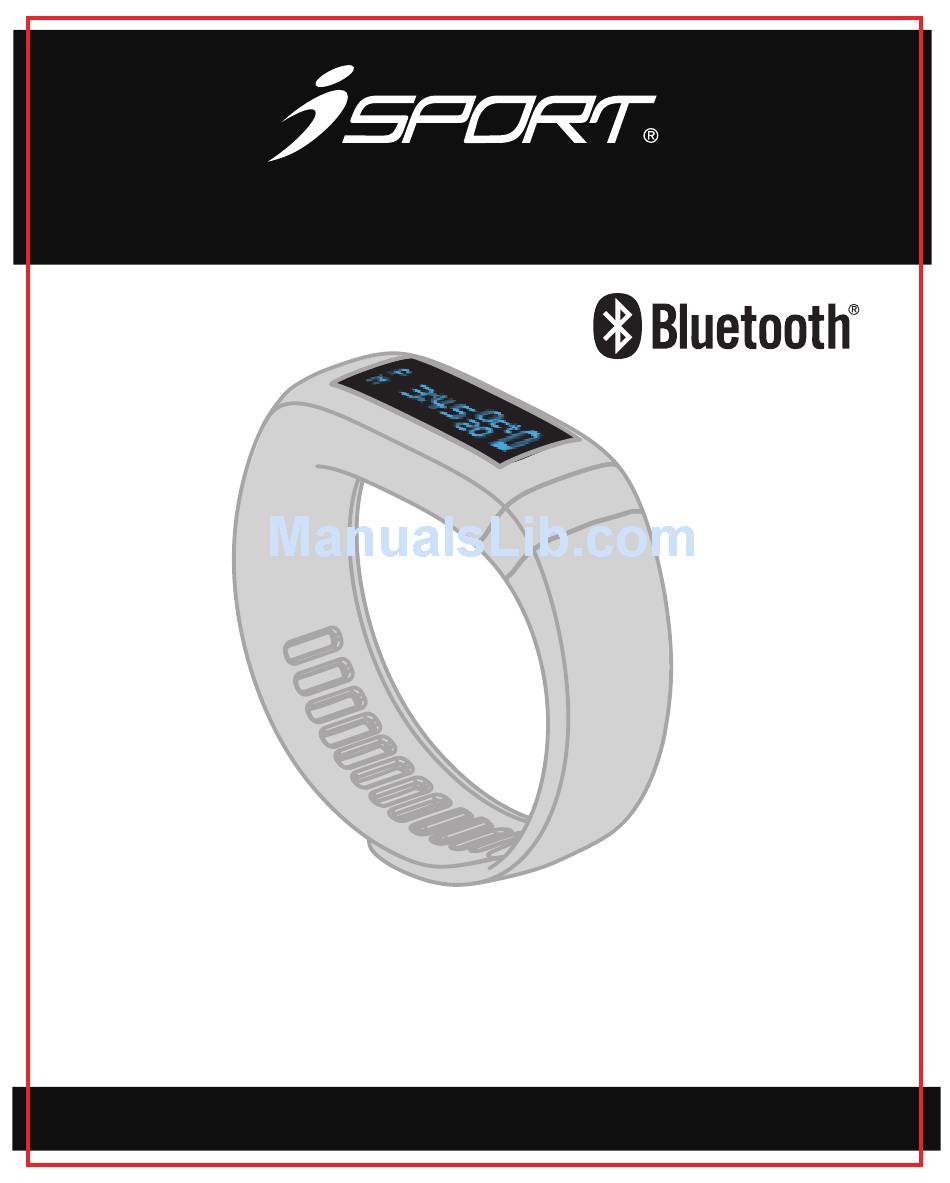

- Page 1 Bluetooth Activity Monitor User’s Manual Model: W240...
-
Page 2: Main Functions
MAIN FUNCTIONS · Transmit data via Bluetooth Low Energy (Bluetooth 4.0). · Time mode: display minute, hour, day, month and power status. · Data display: current steps, calories, distance, exercise time and target completion rate. · Sleep monitoring. · 15 days total work out memory. Function Parameter Range: Steps 0 999999 Steps Calories 0 999999 Kcal... -
Page 3: Basic Functions
BASIC FUNCTIONS BASIC FUNCTION 1. For the first time to use Activity Tracker, press and hold K1 for 5 s to wake up the tracker and go to time mode. Time Display will be 12:00 by default. 2. Press K1 for 1s under time mode, scroll through step mode, calories mode, distance mode, exercise time mode, target goal mode, target status mode and alarm mode. -
Page 4: Mode Change
MODE CHANGE Bluetooth Synchronization Display: First step to ensure the connection and sync between APP and tracker. Operation 1. Download & open APP--SETTING--DEVICE--REFRESH. Press k1 to wake up the Tracker. Choose "activity tracker X" to pair. If paired successfully, the screen displays “ ”... - Page 5 MODE CHANGE Operation Mode change: press K1 for 1s to enter step mode. Step Mode Functions: 1. Display steps of current day. 2. Walking/running icon will switch alternately at 1HZ. Operation Mode change: press K1 to enter calories mode. Calories Mode Functions: 1.
- Page 6 MODE CHANGE Distance Mode Functions: Display current walking distance . The data is showed with two decimal places. Operation Mode change: Press K1 to enter exercise timer mode. Remarks: If APP & tracker are not synchronized, the stride length will be 60cm or 24 inch by default.
- Page 7 MODE CHANGE Operation Mode change: Press K1 to enter target status mode. Target Status Mode Functions: 1.Display the % of the goal finished and the corresponding emotion logo. 2. "Smile" emotion shows when the target completion rate is more than 60% otherwise the “Sad” emotion shows. Operation Mode change: Press K1 to enter alarm mode.
- Page 8 MODE CHANGE Display: 1. 4 alarms can be set. The interface will show the corresponding alarms you set on the APP. Please check the picture above. 2. When 4 alarms are turned off, the interface displays as above. 3. When alarm time arrives, the “ “...
- Page 9 MODE CHANGE Functions: 1. It is default not to display this mode. Only when you sync APP with the tracker and open "Reminder function" will work. 2. Set "No Exercise time", "Start time" and "End time" on "REMINDER" setting interface, SAVE and sync the tracker.
- Page 10 MODE CHANGE 2. At sleep monitor mode, press K1 for 3 s to wake up the tracker and go back to the mode before sleep monitor. When alarm rings under sleep mode, the vibration will also wake up the tracker. Enter sleep Any mode monitor function...
- Page 11 (The battery symbol also exist). Charging mode refresh every 5 s It will show for 2 s Press Key"K1" for 1 s APP Name: iSport Activity Monitor Compatible with Compatibility iPhone 4S iPhone 5/5C/5S Apple IOS 6.0.0 or above...
-
Page 12: Care & Maintainence
CARE & MAINTAINENCE Care & maintainence - Never attempt to disassemble or service your tracker. - Keep it clear when using. Please use a lightly moistened cloth to wipe the dirt on the tracker. Do not expose the device to strong chemicals such as gasoline, clean solvents, acetone, alcohol, insect repellents, as they may damage the unit's seal, case and finish. -
Page 13: Fcc Warning
FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 14 IC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada license-exempt RSS standard(s).
- Page 15 Model:W240 Thanks for ordering a Bluetooth activity tracker ! You can find start up instructions below. Downloading The iSport activity Monitor App Search for “ iSport Activity Monitor” on Google Play or iOS App Store. Download and install the App.
- Page 16 Getting Started With Your Device 1. Mobile Device Requirements For bluetooth compatibility, please check the chart below: Compatibility iPhone 4S iPhone 5/5C/5S Apple IOS 6.0.0 or above iPhone 6/6Plus iPod iPad Galaxy S3 Galaxy S4 Samsung Android 4.3 or above Note II Note III 2.
- Page 18 Please check the data on the APP after sync. 2) SETTING Option, Set your personal info., click “Save”to sync with the Tracker. 3) Alarm - 4 alarms can be setted. When alarm time arrives, the tracker will Vibrate for 30 s.
- Page 19 4) Reminder or detailed instruction, please refer to the user manual. For step 2)3)4), please ensure you have activated the tracker (Press the button on the tracker for 1s) before save or sync.
- Page 20 5) Data Review- Current Step Data Review-Current Calorie...
- Page 21 Data Review-Current Distance 6) Data Review- By Week/Month/Year To switch among step/calorie/distance, swipe the screen up or down.
- Page 22 - The histogram will show exercise trend of 1W/1M/1Y. - Screen can be enlarged or shrunk. Click histogram and the data of current selection will be displayed. - When a tracker(tracker A) syncs with app and a new one (tracker B) syncs, if the recorded days of tracker A is longer than tracker B, exercise data of same days will be covered by that of tracker B, the rest data of tracker A will be kept, vise versa.
- Page 23 7) Sleeping mode - The higher the histogram is, the poorer sleep quality is, vice versa. - Record will be distinguished by 12:00 at noon. After that, data will be recorded in another day. - “During sleep time “of last period will be displayed by default. The display can be switched to current ”During sleep time”...
