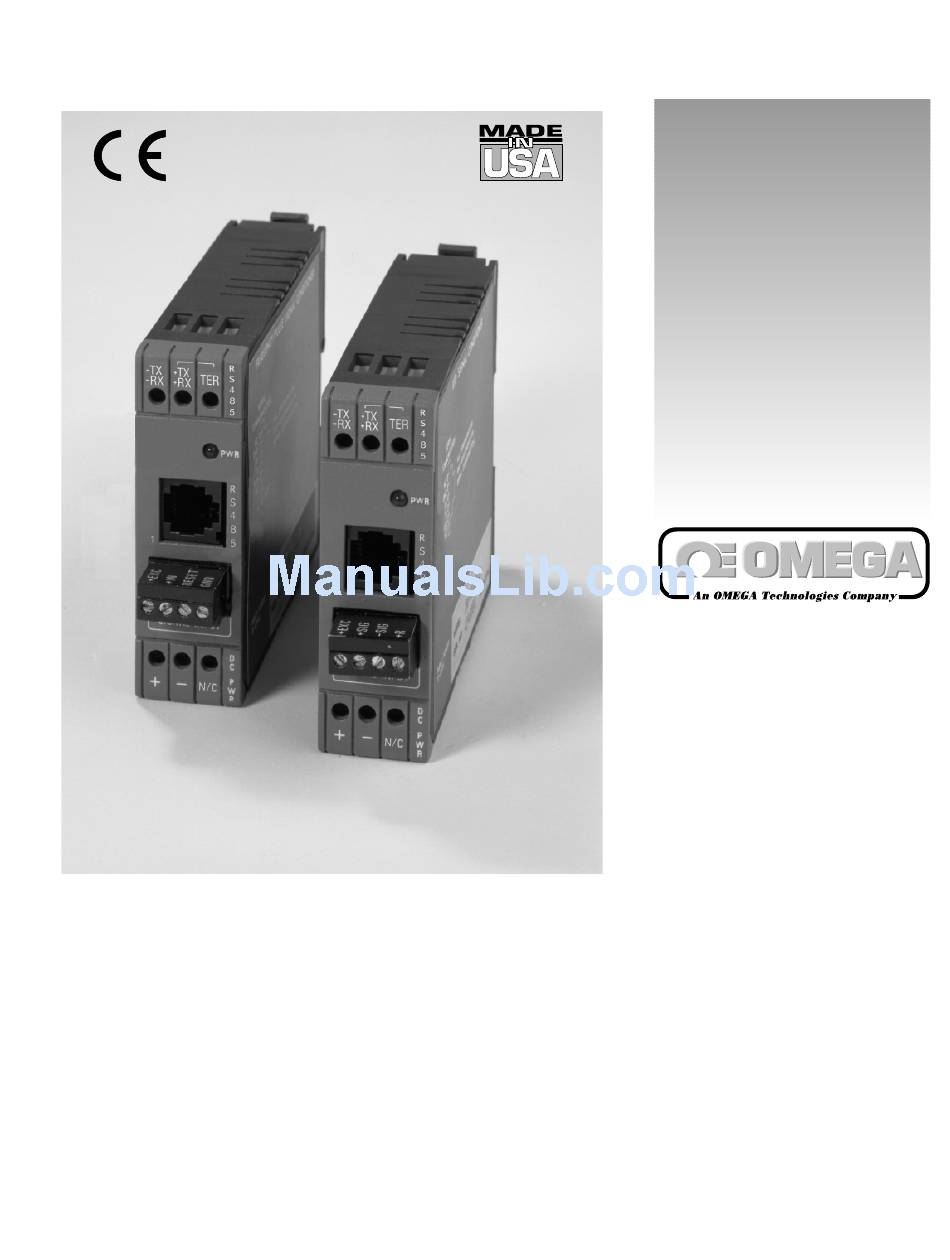

- Page 1 UserÕ s Guide ® http://www.omega.com e-mail: info@omega.com DRX-ACC, DRX-ACV, DRX-FP, DRX-PR, DRX-RTD, DRX-ST, DRX-TC Communication Manual for DRX Signal Conditioner Series...
- Page 2 OMEGAnet On-Line Service ® http://www.omega.com USA: One Omega Drive, P.O. Box 4047 ISO 9001 Certified Stamford CT 06907-0047 TEL: (203) 359-1660 e-mail: info@omega.com Canada: 976 Bergar Laval (Quebec) H7L 5A1 TEL: (514) 856-6928 e-mail: info@omega.ca For immediate technical or application assistance: USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA Customer Service: 1-800-622-2378 / 1-800-622-BEST...
-
Page 3: Table Of Contents
SPECIFICATIONS DRX-ACC ............19 DRX-ACV . - Page 4 NOTES...
-
Page 5: Ii. Model Of Unit
HyperTerminal is a registered trademark of Microsoft Corp. ( DRX-TC ) ( DRX-RTD ) ( DRX-ST ) ( DRX-PR ) ( DRX-FP ) ( DRX-ACV ) ( DRX-ACC ) HyperTerminal , etc, see details below for information). A RS485 signal Page 1... - Page 6 For Procomm: Start the Procomm Program. Press ALT + P (Select the appropriate communication parameters: Baud Rate, Parity, Data Bits, Stop Bits.) The default settings may require modifications. - Factory Default communication settings are as follows: Baud Rate = 9600 Parity = Odd Data Bits = 7 Stop Bits = 1...
- Page 7 SERIAL COMMUNICATION PORT RS485 CONVERTER SYSTEM GND OR SHIELD FIRST UNIT ON BUS Communication Parameter Settings: Communication settings information are very critical during set-up, if any of the parameters are changed, it should be recorded on the label for future reference. If the communication parameters used by the computer does not match the communication parameter of the DRX, then the communication link may not be established.
-
Page 8: Safety Considerations
This device is marked with the international Caution symbol. It is important to read this manual before installing or commissioning this device as it contains important information relating to Safety and EMC (Electromagnetic Compatibility). Unpacking & Inspection Unpack the instrument and inspect for obvious shipping damage. Do not attempt to operate the unit if damage is found. - Page 9 SAFETY NOTE: Disconnect all signal input and outputs before attempting this procedure. Instructions 1) Open the Signal Conditioner Unit—Remove Side Covers from Unit by lifting at the “angled corners” first, using a flat-head screwdriver. Continue detaching remaining edges of the Cover. 2) Short TP6 &...
-
Page 10: Commands For Accessing Eeprom
COMMANDS FOR ACCESSING EEPROM: command letter index NOTE: Data (Number of hex digits) = 2 * number of bytes command letter "W" commands should be followed by "Z01" command for new values to take effect. COMMAND FORMAT (TRANSMITTING): *[nn]Cxx[data][hh]<cr> Note: Data is required if Command Letter is “W” RESPONSE FORMAT (RECEIVING): Correct response : If unit is in echo mode* (see "BUS FORMAT") :... - Page 11 If unit is not in echo mode : i. For the commands which require the data to be transmitted by the DRX Signal Conditioner, data is sent in the following formats: data[hh]<cr> ii. For the commands which do not require the data: NO RESPONSE Error response: 1.
-
Page 12: Description Of Data
Special code indicating an error has occurred as: <cr> Carriage return Note: If Baud rate, Recognition character or address are not correct then the UNIT will not respond. DESCRIPTION OF DATA : For the following Bit Pattern. The LSB is always bit 0. Bit numbers are always counted from right to left, with the rightmost digit being bit 0, and the next to the left would be bit 1. - Page 13 b. INPUT RANGE BIT NO. VALUE Bits: c. INPUT RANGE BIT NO. VALUE (0110 - 1111 not used) not used 100 ohms 500 ohms 1000 ohms 10 ohms COPPER PLATINUM NICKEL DIN STANDARD NIST FOR Pt (SAMA FOR Ni) 2 wire 3 wire 4 wire not used...
-
Page 14: Input/Output Configuration
d. INPUT RANGE BIT NO. VALUE 2. INPUT/OUTPUT CONFIGURATION: This is one byte data (2 characters). Bit pattern is: BIT NO. VALUE TC/RTD Degree C Degree F Degree K Degree K Temp. compensation No temp compensation ---- ---- ---- ---- ---- ---- ----... -
Page 15: Decimal Point
Note 1: Bit 2&3 set the speed of process totalize. The time it would take process totalize to reach the non-totalize reading is shown in the following table: Bit 3 3. DECIMAL POINT : This is one byte (2 characters) as: value meaning XXXXXX. -
Page 16: Communication Parameters
5. READING SCALE: Multiplication factor applied to input to get a higher or lower reading. This is 3 byte data (6 characters) as follows: - Bits 0 to 18 (19 bits) are value of the scale from 0 to 500000 - Bit 19 is sign, 0 for positive and 1 for negative - Bits 20 to 23 are for decimal point value = DP It means as:... - Page 17 PARITY = bits 4,3 and are: DATA BIT = bit 5 and is: STOP BIT = bit 6 and is: Bit 7 : always 0 Note 1: Stop bit is always 1. Unless 7 data, no parity is selected then unit will use 2 stop bits. Note 2: When 8 Data bit is selected, only NO PARITY is allowed.
-
Page 18: Data Format
9. DATA FORMAT: This is one byte and specifies the data which will be transmitted against the "V01" command. Bit pattern: bit 0 = 0/1 Means do not include/include peak & valley status register. bit 1 = 0/1 Means do not include/include reading. For models(TC/RTD/ACV/ACC): bit 2 = 0/1 Means do not include/include peak reading. - Page 19 12. UNIT OF MEASURE: This is 3 bytes. It is ASCII value of unit of measure. 13. GATE TIME(For FP model only): This is 1 byte from 00 to FF. For value = 00 to FA: Each count equals 10ms. If 0 then gate time = 3ms. Example : 1 second gate time = 64 hex.
-
Page 20: Commands For Measurement Values
COMMANDS FOR MEASUREMENT VALUES: Command Receiving value *01X01 (For all models): Note: In order to have continuous update on reading. Customer should send X01 command every time reading is requested. Models(TC/RTD/ACV/ACC): *01X02 Peak reading value. *01X03 Valley reading. Models(PR/ST/FP): *01X03 Peak reading value. -
Page 21: Viii. Reset Commands
VIII. RESET COMMANDS : *01Z01 (For all models): Hard reset (reading data from EEPROM). *01Z02 (For all models): Soft reset (Initialize reading). *01Z03 (For models: TC/RTD/ACV/ACC): Reset peak and valley. (For models: PR/ST): Reset process totalize value. *01Z04 (For models: (PR/ST/FP): Reset peak value. *01Z05 (For models: PR/ST/FP): Reset valley value. - Page 22 COLOR 7, 0 RDG: PRINT #1, "*01X01" DAT1$ = "" DAT$ = "" T$ = TIME$ T1$ = MID$(T$, LEN(T$) - 1, 2) T1 = VAL(T1$) IF LOC(1) > 0 THEN CNT = 0 DAT1$ = INPUT$(LOC(1), #1) DAT$ = DAT$ + DAT1$ ELSE T$ = TIME$ T2$ = MID$(T$, LEN(T$) - 1, 2)
-
Page 23: Drx-Acc
DRX-ACC SPECIFICATIONS INPUT RANGES: 10 mA, 100 mA, 1 Amp, 5 Amp AC current Dedicated input terminals for (10, 100 mA same input), 1 Amp and 5 Amp. Return terminal common to all ranges. FREQUENCY RANGE: 30 Hz to 1KHz INPUT IMPEDANCE: 3.3 Ohms for 10, 100 mA input... -
Page 24: Drx-Acv
DRX-ACV SPECIFICATIONS INPUT RANGES: 400 mV, 4V, 40 Volt, 400 Volt FREQUENCY RANGE: 30 Hz to 1 KHz INPUT IMPEDANCE: 2.1 Meg for all ranges. ISOLATION: Dielectric strength to 1000 Vrms transient per 1 minute test based on EN 61010 for 50 Vdc or Vrms working voltage. -
Page 25: Drx-Fp
DRX-FP SPECIFICATIONS INPUT TYPE: Min. Low level signal input (magnetic pickups) : From 0 mV to 120 mV Open Collector NPN (Use software to set: 3 KΩ pull up to 5V): Max. current source = 1.66 mA Open Collector PNP (Use software to set: 1KΩ pull down to RTN): Max. -
Page 26: Drx-Pr
DRX-PR SPECIFICATIONS INPUT RANGES: ±20mA; ±400mV, ±1V, ±2V, ±5V, and ±10V Ratiometric or nonratiometric EXCITATION: 14V or 10V @ 25mA INPUT IMPEDANCE: Voltage Range: 1MΩ Current Range: 10Ω ISOLATION: Dielectric strength to 1000 Vrms transient per 1 minute test based on EN 61010 for 50 Vdc or Vrms working voltage. -
Page 27: Drx-Rtd
DRX-RTD SPECIFICATIONS SPECIFICATIONS: 100, 500, 1000 Ohm platinum RTD with both European (alpha=0.00385) and American (alpha=0.00392) curves. Input Type: 100 Ohm -328 to 1562 °F 500 Ohm -328 to 1562 °F 1000 Ohm -328 to 1562 °F ISOLATION: Dielectric strength to 1000 Vrms transient per 1 minute test based on EN 61010 for 50 Vdc or Vrms working voltage. -
Page 28: Drx-St
DRX-ST SPECIFICATIONS INPUT RANGE: ±30mV/ ±100mV Ratiometric or nonratiometric EXCITATION: 10V @ 30mA or external INPUT IMPEDANCE: More than 1MΩ ISOLATION: Dielectric strength to 1000 Vrms transient per 1 minute test based on EN 61010 for 50 Vdc or Vrms working voltage. -
Page 29: Drx-Tc
DRX-TC SPECIFICATIONS INPUT TYPE: Type J,K,T,E,R,S,B,N, J DIN Input Type Range °F -346 to 1400°F -454 to 2500°F -454 to 752 °F -454 to 1832 °F -58 to 3214 °F +212 to 3300 °F -454 to 2372°F J DIN -328 to 1652 °F ISOLATION: Dielectric strength to 1000 Vrms transient per 1 minute test based on EN 61010 for 50 Vdc or Vrms... -
Page 30: Dimensions
DIMENSIONS: TYPICAL COMPUTER SETUP: RJ12 CONNECTOR COMPUTER CONNECTION (DB9 OR DB25) COMPUTER POWER CONNECTION Page 26 WITH CABLE RS232 to RS485 Converter Half-Duplex ADAPTER (DB9/25 TO RJ12) - Page 31 WARRANTY/DISCLAIMER OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA Warranty adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.
-
Page 32: Data Acquisition
