Summary of Contents for Navilock NL-6022MP u-blox NEO-6P

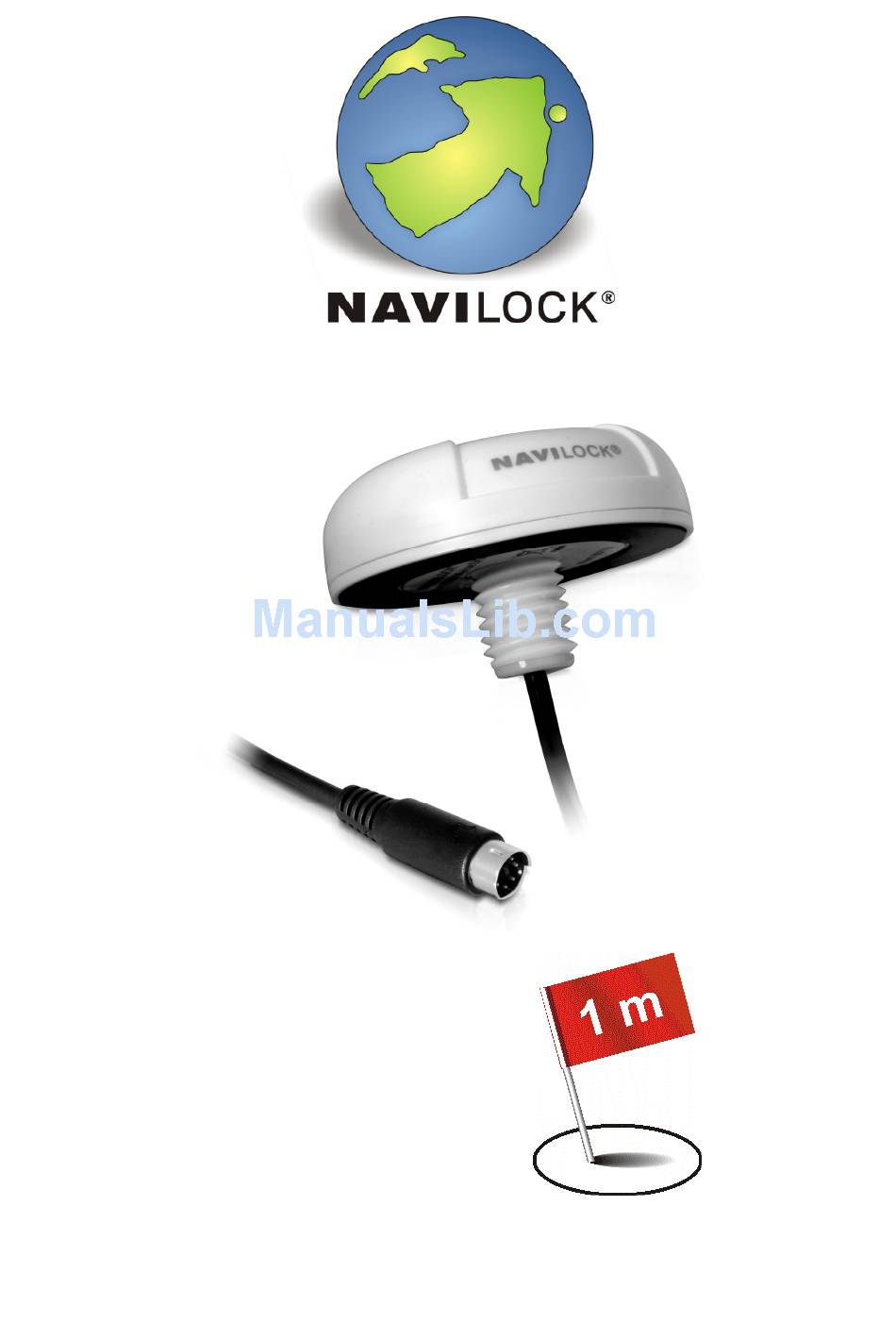

- Page 1 NL-6022MP u-blox NEO-6P MD6/serial receiver roof mount marine version Operation manual (62448)
- Page 2 UV-resistant white housing. Contents* • 1x Navilock NL-6022MP • 1x 8 cm CD ROM including operation manual * Before using the device, please make sure that all the parts are included in the package. If any parts are missing or damaged, please contact your dealer immediately.
- Page 3 5. Functional test with u-center 7.xx Download u-center from: http://www.navilock.de/produkte/G_60095/software.html?setLanguage=en. Install the u-center software on your unit. Select the version suitable for your system. U-center is a pure test program and cannot be used for navigation or orientation. It must always be closed after the test.
- Page 4 If the NMEA protocol is displayed in u-center, but you cannot find a receiver in the application software, the connection problem is not with the receiver, but with the selected software setting. In this case, the software manufacturer support center may be able to help you. After starting the u-center software, check the functionality of your NL-6022MP.
- Page 5 6. EGNOS configuration with u-center 7.xx NL-6022MP use EGNOS as default. In the configuration menu you can check these options. For detailed information please use the documentation from u-blox http://www.u-blox.com. 7. Assist GPS configuration with u-center 7.xx The NL-6022MP supports AssistNow! AssistNow is a standard A- GNSS service, which increases the performance of the GNSS receiver, by calculating a position almost immediately, even under difficult reception conditions.
- Page 6 The Navilock repair center tries to be as obliging as possible, so please tell us the real reason for the defect. During the error analysis, we can generally detect if the cause for the defect was an external cause, water damage, fall, over-voltage or the wrong handling of the unit.
-
Page 7: Specifications
9. Specifications Chip set manufacturer/type: ublox NEO-6P GPS Channels: 50 channels Sensitivity: -160 dBm GPS Frequency: L1, 1,575.42 MHz GPS C/A Code: 1.023 MHz chip rate Target precisions: Position Horizontal: SBAS + PPP < 1 m (2D, R50) SBAS + PPP < 2 m (3D, R50) Demonstrated under following conditions: 24 hours, stationary, first 600 seconds of data discarded. - Page 8 Navilock. The brand Navilock is a registered trademark and may not be used without the written authorization of the trademark owner. In no case may it be altered or completed by additions.
- Page 9 Brands, trade names, product names and logos of third parties mentioned in this documentation may be trademarks or registered trademarks of the respective owners. Conformity declaration Please download the Declaration of Conformity from http://www.navilock.de/support/ in the conformity area. WEEE note The WEEE (Waste Electrical and Electronic Equipment) directive, which came into force on 13 February 2003, lead to a comprehensive change in the disposal of used electric products.
