OTT MXQ User Manual
Hide thumbs Also See for MXQ:

Advertisement

Android 4.4
KitKat

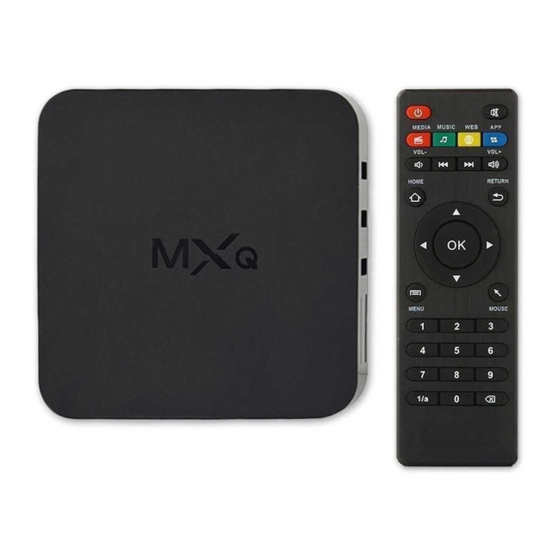

MXQ is the new generation of MX OTT TV BOX
H.264
4X CPU Cortex-A5
1080P Encoder
4X GPU Mali-450
User Manual
TT
TV
BOX

Advertisement

Chapters

loading
Need help?

Need help?

Do you have a question about the MXQ and is the answer not in the manual?

Questions and answers

Summary of Contents for OTT MXQ

  • Page 1 User Manual H.264 4X CPU Cortex-A5 1080P Encoder 4X GPU Mali-450 Android 4.4 KitKat MXQ is the new generation of MX OTT TV BOX...
  • Page 2 Preface Thanks very much for choosing our TV Box. In order to make it more convenient for you to use proficiently, we provide you with a user manual. Please read it carefully before using and properly keep it for reference. Statements We have made every effort to provide the most current information about the product.
  • Page 3: Table Of Contents

    1. 1 Key Features 1. 1 Key Features 1. 2 Environment for System Support many kinds of IPTV and OTT TV programmes. 1. 3 Package Contents Support FHD H.265, VC-1, H.264, MPEG-2 and many other formats such as MPEG-1, Chapter 2 Remote Controller MPEG-2, MPEG-4, DIVX, REALMEDIA and so on.
  • Page 4: Chapter 2 Remote Controller

    TV BOX Chapter 2 Remote Controller Chapter 3 System Connection 2. 1 Introduction of Remote 3. 1 AV Connection 3. 2 HDMI Connection TV CONTROL AREA: Press to learn from the TV IR remote to control TV. SETUP POWER: Press to standby. Amplifier SETUP: Fast key to go to system setup.
  • Page 5: Startup

    TV BOX Chapter 5 My Apps 3.3 Startup Move to “My Apps”, Press OK to enter in. You can see icons referring to different function on the picture. Turn on the TV box while indicator light is blue. Enter into main menu at about 30 seconds. Chapter 4 Home 5.1 PPPoE There are apps which you usually use.
  • Page 6: Browser

    TV BOX 5.2 Browser 5.4 Samba Move to “Samba”. Press OK to enter in. Move to “Browser”. Press OK to enter in. The system will search the share files automatically. It is a convenient way for you to go to your desired website. Notice: Please go to the system setting to set the internet connection before entering into the website.
  • Page 7: Download

    TV BOX 5.6 Download 5.8 Muti-interaction Move to “Downloads”. Press OK to enter in. You can check the status here when Airplay downloading APKs from the internet. Move to “Airplay” icon or “Miracast” icon, Press OK to enter in. Airplay: Download airplay application according to the model of the mobile phone. Enter into Airplay, connect with the same WI-FI hotspot.
  • Page 8: Ota Update

    TV BOX Chapter 6 Settings 5.9 OTA update Optional 6.1 Network Move “OTA update” icon, press OK to enter. Wi-Fi Click “online update” If there is an update in server, you can choose to download it. Select “Wi-Fi”, System will start scanning available Wi-Fi networks around you automatically. After upgrade is finished, system will restart automatically.
  • Page 9: Display

    TV BOX Ethernet: Select “Ethernet” System will start scanning Ethernet automatically. 6.3 Advanced Move to “Advanced” to choose advanced settings. Here you can set Miracast, remote control, CEC control, location, orientation, home screen and digital audio output. When the IP address appears, the Ethernet connected. 6.4 Other 6.2 Display Move to “Other”...
  • Page 10: Chapter 7 Upgrade Steps

    TV BOX Chapter 7 Upgrade Steps 7.3 Insert a stick into AV port. 7.1 Please unzip the upgrade package to the SD card .There will be three 7.4 Insert power adaptor. files in the root of the SD card as follow, There is a reset button inside AV port.
  • Page 11: Chapter 8 Trouble Shotting

    TV BOX Chapter 7 Trouble Shotting " " 7.6 You will see --Install / sdcard... It means the box is updating. Under no circumstances should you try to repair the TV Box by yourself, as this will invalidate the warranty. Do not open the TV Box as there is a risk of electric shock. If a fault occurs, first "...
  • Page 12 TV BOX 序⾔ ⾮常感谢您选择安卓多媒体播放器,为了⽅便您尽快熟悉使⽤,我们为您配备了⽤户使⽤ 说明书,在使⽤前请认真阅读并妥善保存,以备参考。 声明 本产品内含⾃动联⽹功能该功能可帮助⽤户⾃⾏联接指定⽹站服务器并按⽤户选定的内 容进⾏下载播放,本功能旨在简化客户上⽹登陆⽹站使⽤⽹站提供的搜索服务时间,⽤户 所下载播放内容及来源均来⾃互联⽹,本产品不对内容的正确性、合法性及存在的稳定性 负责,希望⽤户遵守国家相关法律法规,不得下载播放任何反动、⾊情及暴⼒等不健康内 容,本产品亦不能因为⽤户在⽹络⽆法联接、联接不稳定及⽹站服务器停机、关闭所造 成的损失⽽负责;同时,安卓作为⼀个开放式的平台,应⽤软件数量庞⼤,来源不同开发团队, 因此存在软件和机器不兼容的问题,⼀些应⽤软件在本机中不能正常安装或使⽤,不属 本机质量问题。当以上情况发⽣时,本产品依然可作为多媒体播放器使⽤。 本公司已经对本说明书进⾏了严格仔细的校勘和核对,我们不能保证完全没有任何错误 和疏漏。同时因为产品更新升级较快,本说明书的内容可能与实际产品存在不相符的情况, 恕不另⾏通知,请访问本公司⽹站查询。 说明书中的图⽚仅供参考,如果有少数图⽚与产品的实际显⽰不符,请以产品实际显⽰为 准。...
  • Page 13: 系统主要特点

    TV BOX 中⽂⽬录 ⼀、系统介绍 ⼀系统介绍 1.1 系统主要特点 1.1 系统主要特点 采⽤Quad-Core Cortex-A5中央处理器,应⽤Android 4.4操作系统。。 1.2 系统适应环境 ⽀持⽹络在线视频(IPTV/OTTTV节⽬),可连接⽤户⾃⼰的后台⽹站。 1.3 基本配件 ⽀持H.265、H.264、MPEG-2等三⼤主流⾼清格式,并同时⽀持MPEG-1、MPEG-2、 ⼆、遥控器 MPEG-4、DIVX、REALMEDIA等其他常⽤格式。 2.1 遥控器说明 ⽀持⽀持hevc、avi、mpg、vob、rmvb、mkv、m2ts、ts等多种视频类型⽂件。 三、系统连接 ⽀持⾼达⼋千万像素的JPG、BMP、PNG图⽚格式。 3.1 AV 连接 ⽀持MP3、WMA、WAV、AC3、ACC等多种⾳频格式播放。 3.2 HDMI 连接 ⽀持SD/SDHC/MMC存储卡的读取。 3.3 系统开机 ⽀持四路2.0⾼速USB接⼝,最⼤输出电源1.5A/5V。 四、主页 ⽀持标准RJ45有线⽹络连接和Wi-Fi⽆线⽹络连接。 五、我的应⽤ ⽀持红外线遥控器操作。 5.1 宽带拨号...
  • Page 14: 遥控器说明

    TV BOX ⼆、遥控器 三、系统连接 2.1 遥控器说明 3.1 AV 连接 3.2 HDMI 连接 学习功能区:通过学习后可控制电视机。 SETUP 待机键:选择按键待机。 功放 设置键:快捷键进⼊设置界⾯。 SETUP 安卓应⽤:快捷键进⼊安卓系统应⽤程序。 ⾳量键:调⾼与调低⾳量。 电视机 电源 主菜单键:快捷键回到主菜单。 网线 返回键:选择返回上⼀个菜单页⾯。 家庭影院 菜单键:播放本地视频⽂件、⾳乐、图⽚的设置选项 菜单键,以及在浏览⽹站时的功能设置键。 路由器 光标键:长按此键变成光标功能,通过导航键进⾏上下左右操作。 导航键:进⾏上下左右操作。 USB-3 OK键:确认操作。 USB-2 USB-1 数字字母键:选择阿拉伯数字或英⽂字母输⼊。 SD/MMC 静⾳键:关闭或打开全部声⾳。 空格键:在输⼊⽂字的时候选择空格键. TV BOX...
  • Page 15: 系统开机

    TV BOX 五、我的应⽤ 3.3 系统开机 点击“我的应⽤”,进⼊我的应⽤界⾯。 插上电源,机器亮蓝⾊指⽰灯,约30秒左右进⼊主页⾯。 5.1 宽带拨号 在应⽤程序中选择“宽带拨号”图标,点击进⼊界⾯。 输⼊帐号密码进⾏拨号。根据喜好选择是否开机⾃动拨号。 四、主页 主页显⽰常⽤应⽤程序。 点击右下⾓“+”号可以根据⾃⼰的喜好,在主页添加或删除应⽤程序。“√”选择所要添加 的应⽤程序,取消“√”删除应⽤程序。 TV BOX...
  • Page 16: 浏览器

    TV BOX 5.2 浏览器 5.4 ⽹上邻居 在多媒体界⾯选择“浏览器”图标进⼊⽹页浏览界⾯。请先确保⽹络连接正常,点击⽹址 在应⽤程序中选择“⽹上邻居”图标,点击进⼊界⾯。 输⼊栏,⽹络键盘会弹出,输⼊⽹址,点击确认键进⼊⽹页。可浏览各种⽹站,在线观看 ⽹络电影。 5.3 媒体中⼼ 5.5⽂件管理 在应⽤程序中选择“⽂件管理”图标,点击进⼊界⾯。进⼊后可以点击选择栏第⼆项,对⽂ 在应⽤程序中选择“媒体中⼼”图标,点击进⼊界⾯。可以播放各种媒体。 件进⾏选择、复制、剪切、粘贴等操作。 TV BOX...
  • Page 17: 下载

    TV BOX 5.6 下载 在应⽤中选择“下载”图标,进⼊下载内容进程界⾯。 选择您想安装的应⽤软件,点击安装该应⽤软件。安装完成后,该软件的图标将会显⽰在应⽤程 序的主界⾯。 5.7 应⽤安装 5.8 媒体互动(Airplay/Miracast) 选择“应⽤安装”图标,进⼊应⽤安装程序界⾯ 您可以通过应⽤安装选项进⾏安装apk应⽤软件。请将事先存有APK⽂件的U盘或SD卡插⼊ 在应⽤程序中选择“Airplay”或者“Miracast”图标,点击进⼊界⾯ 相应接⼝,系统会⾃动扫描设备。 Airplay:按照⼿机型号在⼿机⾥下载并安装适⽤的Airplay,点击设备中的Airplay,连接 同⼀个WI-FI热点。在⼿机⾥播放视频,图⽚,⾳乐下有软件图标,点击即可进⾏多屏互动。 TV BOX...
  • Page 18: Ota升级

    TV BOX 六、系统设置 6.1 ⽹络设置 Miracast:请确保设备与⼿机在同⼀个WiFi环境下,在“应⽤”中选择“Miracast”,然后 打⼿机(能使⽤Miracast的⼿机)“设置”,进⼊“WLAN”,点击⼿机“菜单”键选择 ⽆线⽹络 “WLAN Display”,在可⽤设备中选择您所要的设备,点击检测到设备即可。 “√”“⽆线⽹络”,进⼊⽆线⽹络设置界⾯系统会开始⾃动扫描您周围的可⽤⽆线⽹络。 选择连接到您的⽆线⽹络接⼊点,然后直接输⼊密码。系统显⽰正在获取IP地址,⽹络已经 5.9 OTA升级 连接,⽆线⽹络可⽤。提⽰:有时候⽆线⽹络不稳定,连接失败了,请多试⼏次。 在应⽤程序中选择“OTA升级”图标,点击进⼊界⾯。 点击online update按钮。 如果服务器有更新,就会弹出下载的对话框 提⽰下载更新 TV BOX...
  • Page 19: 显⽰设置

    TV BOX 6.2 显⽰设置 有线⽹络 连接⽹线,“√”“有线⽹络”,系统会⾃动连接以太⽹。 选择“显⽰设置”根据偏好设置显⽰。 6.3 ⾼级设置 选择图标进⾏⾼级设置。 当显⽰IP地址,以太⽹连接成功。 6.4 其他设置 选择“其他设置”图标,进⼊媒体盒版本信息界⾯。这⾥您可以进⾏系统升级和更多的设置。 TV BOX...
  • Page 20 TV BOX 七、升级步骤 7.3 在AV⼝插⼊⼀根⼩⽊棍。 7.1 请把升级包解压到SD卡根⽬录,SD卡⾥⾯会有以下的三种⽂件。 7. 4 插上电源。 (依然按着复位键) factory_update_param.aml (根据升级包不同,有的升级包没有这个⽂件。) (AV⼝⾥⾯有⼀根复位键) xxx.zip (升级包的zip格式⽂件) ⽤⼩⽊棍去按复位键,保持不动。 recovery HDMI ⾼清线 HDMI ⾼清线 7.2 插⼊⾼清线和SD卡。 (⾼清线的另⼀端连接电视,如下图。) 按下去 保持按着 电源 HDMI ⾼清线 SD卡 SD卡 ⼩⽊棍 7.5 看到机器⼈出现在升级界⾯就可以松开⼩⽊棍,⽤遥控选择 “ apply update from EXT ” “...
  • Page 21 TV BOX ⼋、常见问题 7.6 当界⾯出现”--Install / sdcard...”升级正在进⾏中。 如果本机在使⽤过程中出现问题,请对照下表解决问题。如果问题不能解决,请与经销商 或售后服务部门联系。 升级完就会看到界⾯出现“Install from sdcard complete” 友情提⽰:请不要⾃⾏维修机器,这会导致保修失效;请不要擅⾃打开电源适配器外盒, 这会引起触电危险。 问题 解决⽅法 7.7 ⽤遥控器选择“reboot system now”并按OK。 -检查电源适配器是否连接良好,电源线是否连接正确。 没有电源 或者重新上电重启机器. -按下遥控器的开机电源,重新上电。 -检查电视是否开启。 没有画⾯ -重新拔插HDMI线。 7.8 当升级成功了就会进⼊“Welcome”界⾯. -调整⾳量。 没有声⾳或出现噪⾳ -检查功放器是否连接正确。 -检查数字输出是否连接。 没有数字⾳频输出 -检查您的功放器是否设置正确。 提⽰:可以到设置查看build number是否与升级包吻合来确定 -请将遥控器直接对准播放器前端的的遥控接收点。 遥控器操作失灵 -缩短与播放器的距离进⾏遥控。...
