- Page 1 ® CAUTION! – This product is not intended for medical use or use on humans User’ s Guide Shop online at omega.com ® e-mail: info@omega.com For latest product manuals: omegamanual.info OS136 SERIES Miniature Low-Cost Non-Contact Infrared Temperature Sensor/Transmitter...
- Page 2 Toll-Free: 0800-488-488 FAX: +44 (0) 161 777-6622 It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
-
Page 3: Table Of Contents
OS136 Series Miniature Low-Cost Non-Contact Infrared Table of Contents Section Caution and Safety Information ... iii Safety Warnings and IEC Symbols ... iii Section 1 Introduction ... 1 Section 2 Installation ... 1 2.1 Unpacking ... 1 2.2 Electrical Connection ... 2 Section 3 Operation ... -
Page 4: List Of Figures
OS136 Series Miniature Low-Cost Non-Contact Infrared Temperature Sensor/Transmitter List of Figures Figure Description General Wiring Diagram ... 2 Optical Field of View ... 3 Mounting Bracket, OS100-MB ... 4 Air Purge Collar, OS100-AP ... 4 Stainless Steel Housing ... 5 Water/Air Cool Jacket, OS136-WC ... -
Page 5: Caution And Safety Information
OS136 Series Miniature Low-Cost Non-Contact Infrared Temperature Sensor/Transmitter CAUTION & SAFETY INFORMATION If the equipment is used in a manner not specified in this manual, the protection provided by the equipment may be impaired. The Installation category is one (1). -
Page 6: Section 1 - Introduction

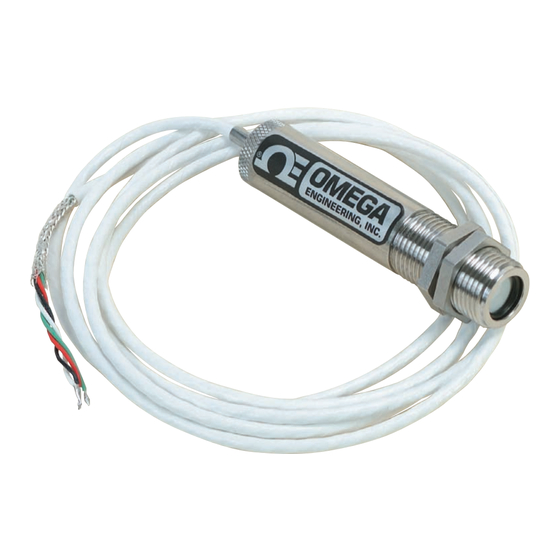

Introduction SECTION 1 - INTRODUCTION The model OS136 series is a very low-cost, super-compact infrared transmitter. It measures temperature via non-contact, and provides an analog output proportional to the measured temperature. The OS136 series is offered in two temperature ranges: -18 to 204ºC (0 to 400ºF) and 149 to 538ºC (300 to 1000ºF). -
Page 7: Electrical Connection
The following describes the ordering information: OS136 – * – ** , where - * means: -1 : -18 to 204ºC (0 to 400ºF) Temperature range -2 : 149 to 538ºC (300 to 1000ºF) Temperature range - ** means: -MA : 4 to 20 mA current output... -
Page 8: Section 3 - Operation
The transmitter can operate in an ambient temperature of 0 to 70°C (32 to 158°F) without any water cool jacket. It can operate from 0 to 200°C (32 to 392°F) with the water cool jacket accessory, OS136-WC (Fig 3-5 & 3-6). It can operate up to 110°C (230°F) with air cooling. -
Page 9: Atmospheric Quality
To keep the surface of the optical lens clean, the air purge collar accessory is recommended, OS136-AP (Fig 3-3). The following figures show the Mounting Bracket (OS136-MB), Air Purge Collar (OS136-AP), Stainless Steel Housing, Water/Air Cool Jacket (OS136-WC), and the Water/Air Cool Jacket Assembly. -
Page 10: Stainless Steel Housing
1.83m (6ft) Figure 3-4. Stainless Steel Housing 1/8 NPT COMPRESSION FITTING, 2 PLCS. INLET 3/4-16 UNF-2B Dimensions mm (in.) Figure 3-5. Water/Air Cool Jacket, OS136-WC OS137 INTLET Figure 3-6. Water/Air Cool Jacket Assembly 3/4-16 UNF 33.27 (1.31) DIMENSIONS mm (in) 7.62... -
Page 11: Section 4 - Laser Sight Accessory
SECTION 4 - LASER SIGHT ACCESSORY 4.1 – Warning and Caution You may receive harmful laser radiation exposure if you do not adhere to the warnings listed below: • USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HERE MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. -
Page 12: Laser Sighting Accessory, Os100-Ls
Laser Sight Accessory BATTERY PACK POWER SUPPLY OS136 ON/OFF SWITCH Figure 4-1. Laser Sighting Accessory, OS100-LS LASER RADIATION DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. CLASS 2 LASER PRODUCT. LASER RADIATION - DO NOT STARE INTO BEAM OUTPUT <1 mW, WAVELENGTH 630-670 nm, CLASS II (2) LASER... -
Page 13: Section 5 - Specifications
Min. Load (10 mV/Deg) Min. Load (K T/C) Operating Ambient Temperature: No Water Cooling With Water Cooling (OS136-WC) 0 to 200ºC (32 to 392ºF) With Air Cooling (OS136-WC) Operating Relative Humidity: Water Flow Rate for OS136-WC: Air Flow Rate for OS136-WC... -
Page 14: Laser Sight Accessory
Specifications 5.2 - Laser Sight Accessory Laser Wavelength (Color): Operating Distance: Max. Laser Power Output: European Classification: FDA Classification: Laser Beam Diameter: Beam Divergence: Operating Temperature: Operating Relative Humidity: Power Switch: Power Indicator: Power: Caution & Certification Label: Identification Label: Aperture Label: Dimensions: 630 - 670 nm (Red) - Page 15 OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.
- Page 16 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies Wire: Thermocouple, RTD & Thermistor Calibrators & Ice Point References Recorders, Controllers & Process Monitors Infrared Pyrometers PRESSURE, STRAIN AND FORCE Transducers &...
