3 - Level Sensor Installation
The Level Sensor may be installed in any attitude.
1. Ensure sufficient clearance space (see fig. 1 and 2) in the container wall.
Installation STD (fig. 1):
• The screw joint comprises a sleeve, a spring and a slotted nut.
• The sleeve must be welded into the container wall.
2. Place the level sensor (without sealing compound) in the sleeve and
tighten the spring and slotted nut.

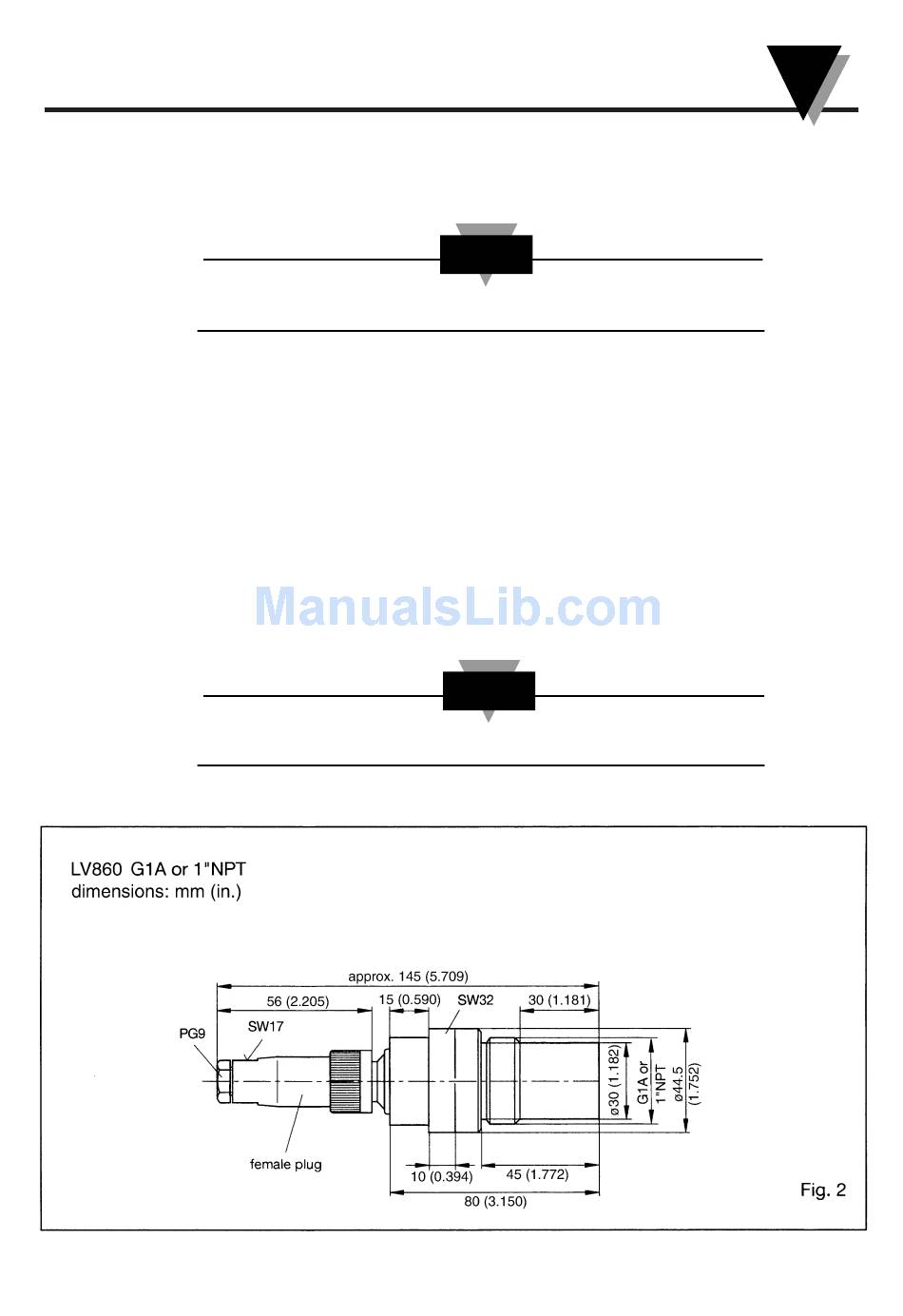

Installation G1A or 1" NPT (fig. 2):
• Ensure a type G1A or 1" NPT thread in the container wall has been provided.
2. When tightening the level sensor please use the flats provided (SW32).
Do not overtighten.
LV860 LEVEL SENSOR
N O T E
CAUTION
3
