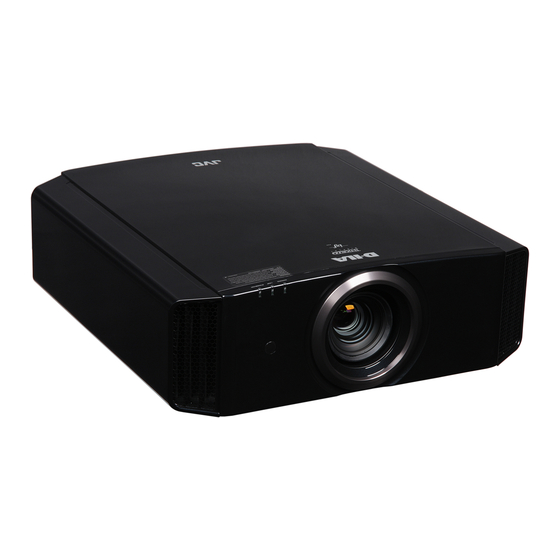

JVC DLA-X95R Instructions Manual
D-ila home theater projector
Hide thumbs
Also See for DLA-X95R:
- Brochure & specs (12 pages) ,
- Setup manual (6 pages) ,
- Instructions manual (86 pages)
Table of Contents
Advertisement
Quick Links
About the marks being used in this manual
refers to as explanations/instructions for DLA-X95R and DLA-X75R.
X95R/X75R
refers to as explanations/instructions for DLA-X900R and DLA-X700R.
X900R/X700R
refers to as explanations/instructions for DLA-X500R.
X500R
Items without markings are for all models.
About "Projector Calibration Software"
"Projector Calibration Software" is a tool that enables you to use the projector in an optimal condition at all times with
the use of a commercially available optical sensor.
Calibration Feature
By performing a precise calibration with easy procedures in optimizing the projected images, which changes
depending on the installation conditions, such as installation position of the main unit, lens shift/zooming position,
you can enjoy high-quality images that are suitable for the installation conditions. You can also maintain the projector
in an optional state by correcting distortions, such as those in the color balance, which are caused by the prolonged
use of the projector.
Environment Settings
Adjusts the video settings according to the installation environment to minimize any influence on the image quality
by objects, such as white walls or indirect illumination.
Import/Export Image Quality Adjustment Data
Enables you to save the image setting data to a PC from the projector, or imported from a PC to the projector via the
LAN terminal.
* "Projector Calibration Software" is designed to adjust gamma and color display by changing the settings of the
projector.
* Please note that setting of the projector is changed by using this software.
Required Equipment
● Projectors that support calibration
Models supported: DLA-X900R, DLA-X700R, DLA-X500R, DLA-X95R, DLA-X75R
● PC (computer)
● LAN cable
● Optical sensor
Models supported: Spyder4
* Spyder4
and Spyder4
ELITE
D-ILA Home Theater Projector
"Projector Calibration Software 5"
INSTRUCTIONS
by Datacolor
ELITE/PRO
are registered trademarks of Datacolor in the United States and other countries.
PRO
1
Advertisement
Table of Contents
Related Manuals for JVC DLA-X95R
Summary of Contents for JVC DLA-X95R
- Page 1 D-ILA Home Theater Projector “Projector Calibration Software 5” INSTRUCTIONS About the marks being used in this manual refers to as explanations/instructions for DLA-X95R and DLA-X75R. X95R/X75R refers to as explanations/instructions for DLA-X900R and DLA-X700R. X900R/X700R refers to as explanations/instructions for DLA-X500R.
- Page 2 System Requirement To make use of this software, your hardware and software must meet the following specifications. PC (Computer) Windows 7 (32-bit, 64-bit) (Recommended) OS supported Windows 8 (32-bit, 64-bit) Windows Vista (32-bit) Memory 256 MB or more (1 GB or more recommended) 256 MB or more Required functions .NET Framework 3.0 / 3.5...
-
Page 3: Installing Software
Preparation for the Calibration Adjustment Installing the Software Pre-installation Check Before starting the installation, ensure that no program is running. During installation or calibration, set the PC to the administrator mode, and disable the screen mode and energy- saving mode of the PC. Do not connect the optical sensor to the PC before installing the driver. - Page 4 Projector and PC Setup Connecting the Projector to a PC directly Projector To [LAN] Terminal Connection Cable (Sold Separately) Laptop, etc. Connect the projector to a PC via LAN cable. Function Set “Communication Terminal” under the “Function” tab in the X95R/X75R Trigger menu to “LAN”.
-
Page 5: Connecting The Projector To A Network
Connecting the Projector to a Network Projector To [LAN] Terminal Connection Cable Network (Sold Separately) Server Laptop, etc. Connect the projector to a network connection device (hub, etc.) via LAN cable. Function Set “Communication Terminal” under the “Function” tab in the X95R/X75R Trigger menu to “LAN”. -
Page 6: Calibration Adjustment
Calibration Adjustment Precautions Prior to Use of Calibration • Calibrated result might be different from the factory default data, depending on the operating environment. • During calibration, set the PC to the administrator mode, and disable the screen mode and energy-saving mode of the PC. -
Page 7: Starting Up The Software
Starting up the Software Double-click the “Projector Calibration software” icon on the Desktop. Double-Click Setting Use this feature to specify the various settings. Click the “Setting” button. Specify the various settings. Network IP Address: Enter the IP address for the projector on the network. -
Page 8: Calibration Procedure
Calibration Procedure Corrects the image quality which changes depending on the installation condition (such as installation position of the main unit, lens shift/zooming position), and distortions (such as those in the color balance), which are caused by the prolonged use of the projector. - Page 9 Calibration in progress While calibration is in progress, make sure that the surrounding light does not fluctuate. Otherwise, it may affect the calibration results. * Noise may appear on the screen when data writing is in progress. The results for each Calibration Type are displayed. Gamma Calibration results are shown in a white line.
- Page 10 Create a Color Profile. Use this feature to create a color profile that contains the color space, color temperature, and gamma information. Click the “Create” button. Click Create a color profile. Select a Color Space and a Color Temp setting from the pull- down menu.
-
Page 11: Export Procedure
Import/Export Procedure Use this feature to save/import picture quality setting data, or to import color profiles. Click the “Import/Export” button. Click - Picture Data Double-Click Export Procedure A Double-click the Picture Mode ( User 1 to 5; X95R/X75R User 1 to 4), and select a Picture X900R/X700R X500R Mode (... - Page 12 C Click the “START” button. To exit, click (to return to the top menu). Click Import Color Profile A Double-Click the Color Profile (Custom 1 to 5), and select a Color Profile (Custom 1 to 5) to import from the pull-down menu. B Click the “IMPORT”...
-
Page 13: Environment Settings
Environment Settings Adjusts the video settings according to the installation environment to minimize any influence on the image quality by objects, such as white walls or indirect illumination. To set the environment settings by using the calibration software, turn off the environment setting of the projector. - Page 14 After installation is complete, click the “>>” button. Click Enter a Screen Size (width across corner, inch) and Viewing Distance, and click the “START” button. Viewing Distance Screen Size Click The recommended settings are displayed. Picture Tone -W Dark Level Recommended Settings Bright Level...
-
Page 15: Exiting The Software
Exiting the Software Return to the top menu, and click the “EXIT” button. Click When the following messages are displayed If you encounter with the following messages, follow the instructions being explained in the following: Message Solution (Details) Error in detecting the model. Go back to the previous screen and check the input signal. - Page 16 Setting up the Projector and PC (for Windows7) Click the “Start” button on the lower left corner of the desktop screen, and select “Control Panel”. Select “Small Icon (S)” from “View by:”, if the screen on the right is displayed. => Proceed to 2). Select “Network and Sharing Center”...
- Page 17 Proceed to 7) in case of the LAN connection via router. Proceed to 12) if the projector and PC are connected by LAN cable. Check the boxes for “Obtain an IP address automatically” and “Obtain DNS server address automatically”. => Click “OK”, and then close all the windows by clicking the “x” button.
- Page 18 Check “Use the following IP address:”. Enter the values in the right screen illustration to “IP address”, “Subnet Mask” and “Default Gateway”. Check “Use the following DNS server addresses:” to enter the values in below illustration to “Preferred DNS server:”. =>...
- Page 19 ● Spyder4 is registered trademark of Datacolor in the United States and other countries. ELITE/PRO ● Other company names and product names mentioned in this instruction manual are trademarks and/or registered trademarks of the respective companies. © 2013 JVC KENWOOD Corporation...
