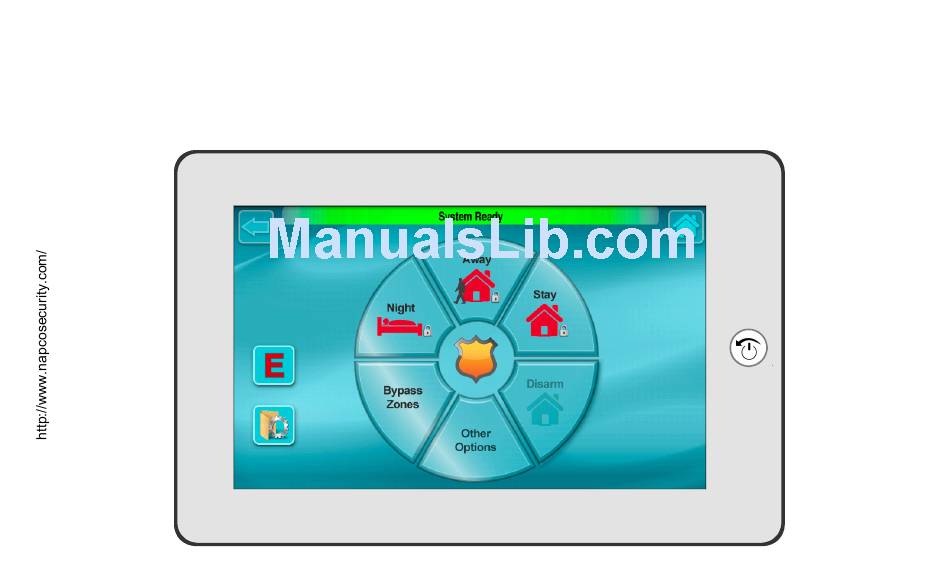

  • Page 1 Using your ® iBridge IBR-ITAB Security System © NAPCO 2013 OI372A 03/13...
  • Page 2 IBR-ITAB keypad; read IMPORTANT - TEST YOUR SYSTEM WEEKLY Test your sounding device and backup battery Test your central station communicator...

  • Page 3: Table Of Contents

    T AB L E O F C O N T E N T S Section Page TO SILENCE AN ALARM, ENTER YOUR IBR-ITAB HARDWARE CONTROLS & INDICATORS ......5 CODE, AND TAP GETTING STARTED ................6 USING THE TOUCH SCREEN (AND BACK / POWER BUTTON) ..7 FOR SERVICE, CALL: ____________________ HOME SCREEN ICONS ................8...

  • Page 4: Important Note

    Caution: The rear of the IBR-ITAB contains a strong magnetic carefully review the terms of service or application. If you use field that can interfere with pacemakers, defibrillators and other any of these non-Napco services or applications, personal infor- electronic devices.

  • Page 5: Ibr-Itab Hardware Controls & Indicators

    Screen Calibration screen (see page 47). Microphone: Integral high sensitivity, voice input. Back / Power Button: Press to turn on your IBR-ITAB. When up and running, press to return to the previous screen. Lights red when Mini-B USB Socket: (Do not use).

  • Page 6: Getting Started

    "Napco RCM Application" to Caution: Use ONLY the charger that came with your continue. IBR-ITAB when charging. Do NOT attempt to connect a charger to the USB port. The USB port is used for data Note: To automatically start the Napco RCM Applica- transfer only, NOT for charging.

  • Page 7: Using The Touch Screen (And Back / Power Button)

    U S I N G T H E T O U C H S C R E E N ( AN D B AC K / P O W E R B U T T O N ) Navigation through the IBR-ITAB When the IBR-ITAB is first powered, the Home Screen is the first screen displayed. You can navigate through various sub- menus by simply using your finger to touch through the icons and menus as needed.

  • Page 8: Home Screen Icons

    BROWSER: Tap to open the Tap to access the Z-Wave door ing icon appears (reconnect to IBR-ITAB web browser, allowing locking devices in your system. charging station immediately). access to the Internet. TROUBLES: Appears if a prob-...

  • Page 9: Enter Your Security System

    E N T E R Y O U R S E C U R I T Y S Y S T E M Tap to arm "Away" when leaving (page 14) Tap to arm Tap to arm "Night" "Stay" to protect when sleeping yourself at home (page 19)

  • Page 10: " K S E R I E S " K E Y P Ad M O D E : C O N T R O L S & I N D I C At O R S

    " K S E R I E S " K E Y P AD M O D E : C O N T R O L S & I N D I C AT O R S SYSTEM READY 1 10/16/18 09:40AM...
  • Page 11 " K S E R I E S " K E Y P AD M O D E : C O N T R O L S & I N D I C AT O R S 1. Banner: Displays system status 7.

  • Page 12: " C L As S I C " K E Y P Ad M O D E : C O N T R O L S & I N D I C At O R S

    " C L AS S I C " K E Y P AD M O D E : C O N T R O L S & I N D I C AT O R S...
  • Page 13 " C L AS S I C " K E Y P AD M O D E : C O N T R O L S & I N D I C AT O R S to signal a Fire, Police or entry delay on Exit/Entry Zones, 1.

  • Page 14: Arming Away: Setting The Alarm When Leaving

    A R M I N G " AW A Y " : S E T T I N G T H E AL AR M W H E N L E A V I N G If the feature "EZ-ARM" is programmed, the arming steps will change. Ask your alarm installer if EZ-ARM is enabled. (Optional - Is EZ-ARM programmed? Close all perimeter windows and doors before arming.
  • Page 15 A R M I N G " AW A Y " : S E T T I N G T H E AL AR M W H E N L E A V I N G Arming with a System Trouble If you attempt to arm with a "SYSTEM TROUBLE"...

  • Page 16: Arming Stay: Protecting Yourself At Home

    A R M I N G " S T A Y " : P R O T E C T I N G Y O U R S E L F AT H O M E I nterior Zones, when bypassed, allow free movement within the home while the protection of armed perimeter zones is maintained. If the feature "EZ-ARM"...

  • Page 17: Easy Exit / Emergency Buttons

    E AS Y E X I T / E M E R G E N C Y B U T T O N S Easy Exit (Optional - Easy Exit programmed? Your system may have been programmed for Easy Exit, which allows a user to exit the premises while the system is armed STAY. By activating Easy Exit while the system is armed STAY, the Exit Delay countdown will take place, during which time you are permitted to leave through the exit door.

  • Page 18: Disarming (Turning Off The Alarm) When Returning

    D I S AR M I N G ( T U R N I N G O F F T H E AL AR M ) W H E N R E T U R N I N G Disarming the System Enter your premises through the Entry/Exit door.

  • Page 19: Arming "Night": Protecting Yourself When Sleeping

    A R M I N G " N I G H T " : P R O T E C T I N G Y O U R S E L F W H E N S L E E P I N G Night Mode: Instant Protection When retiring for the evening, after all family members are home, you can cancel the entry delay on the Entry Zone(s) and arm the system in "Night Mode"...

  • Page 20: Bypassing Zones

    B Y P AS S I N G Z O N E S If you attempt to arm with a faulted Zone, a 3-second tone will sound at the tablet. The audible message "There is a Zone open, please secure and try again" and the text "ZONES FAULTED"...
  • Page 21 O T H E R O P T I O N S Your IBR-ITAB includes a wide variety of features. Tap Other Options to access the fol- lowing: • Keypad Mode : Tap to open the keypad screen, allowing your IBR-ITAB to behave just like a standard wired keypad, but with the added benefit of the Banner at the top of the screen, providing additional guidance to control system conditions.

  • Page 22: Fire Protection

    F I R E P R O T E C T I O N (Applicable only where local ordinance permits use of this alarm control panel for fire protection.) Fire-Zone Alarm* F I R E A L A R M FIRE If a fire is detected, "FIRE ALARM"...
  • Page 23 F I R E P R O T E C T I O N Preparing a Fire Escape Plan closed. alternate route through the window. If Even with the most advanced fire alarm 2. One person sounds the alarm. the door is cool, brace your shoulder system, adequate protection requires an 3.
  • Page 24 F I R E P R O T E C T I O N Floorplan Draw a plan of your premises in the space provided below. Floorplan...
  • Page 25 F I R E P R O T E C T I O N LIMITATIONS OF FIRE ALARM WARNING SYSTEM Although a fire alarm system may be of effective in reducing fire deaths, may not less likely to alert those on a different level. a reliable and state-of- the-art design, activate or provide early-enough warning Even those who are awake may not hear...

  • Page 26: Function Menu

    F U N C T I O N M E N U The keypad can provide access to a wide assortment of utility functions. The functions are displayed in a prompting "YES/NO" format. From the Home Screen, tap Security, Other Options, Keypad Mode, then proceed as follows: 1 To enter the Function Menu, tap •...
  • Page 27 F U N C T I O N M E N U Activate Siren Test? Activates the alarm (while disarmed) for about 2 seconds and A C T I V A T E performs a battery test. If the alarm does not sound, call for service. S I R E N T E S T Y / N •...
  • Page 28 F U N C T I O N M E N U Reset System Trouble? System troubles display and sound at the keypad. Correcting R E S E T the trouble will clear most indications, however the following error codes will require S Y S T R B L Y / N manual reset: E13;...
  • Page 29 F U N C T I O N M E N U Activate Telephone Test? Sends a (Telephone Test programmed? NO). A C T I V A T E communicator test to the central station. A communication failure will be indicated D I A L E R T E S T Y / N at the keypad by a system trouble "E03-FAIL TO COMM"...
  • Page 30 F U N C T I O N M E N U Activate Program? Activates the Program Mode from Keypad No. 1. Note: This A C T I V A T E feature is disabled while armed. (See PROGRAMMING USER CODES) P R O G R A M Y / N Activate Download? For installer's use only.

  • Page 31: Central-Station Monitoring

    C E N T R AL S T A T I O N M O N I T O R I N G Your alarm specialist have Opening and/or Closing Reporting. arming (Closing Report), the central programmed your system Your system can notify the central station will acknowledge arming.

  • Page 32: Advanced Features

    A D V AN C E D F E AT U R E S Security Bypass/Unbypass (Security Bypass programmed? NO). In high-security applications, zones may be bypassed (or unbypassed) only if a valid code is entered first, as follows: 1. Enter a User Code valid for bypass, then tap 2.

  • Page 33: Programming User Codes

    P R O G R AM M I N G ( O P T I O N A L ) User Program Mode Your Installer has programmed into your system a special User Program Code which can be used to not only Arm and Disarm the system, but also to enter the User Program Mode, where you can program other User Codes, Zone Descriptions and also set the system Time and Date.
  • Page 34 P R O G R AM M I N G ( O P T I O N A L ) Reviewing a Programmed User Code To review an existing User Code, enter the user number and the corresponding User Code will display. (For the GEM-X255 panel, always enter all three digits of the user number).
  • Page 35 P R O G R AM M I N G ( O P T I O N A L ) Programming Zone Descriptions The zone descriptions which appear on the keypad display may be programmed using the standard wired keypad in the User Program Mode.

  • Page 36: Enter Zone Descriptions -- "Cell Phone Style

    E N T E R Z O N E D E S C R I P T I O N S - - " C E L L P H O N E S T Y L E " EXAMPLE: Repeatedly tap to display "G H I 3"...
  • Page 37 P R O G R AM M I N G ( O P T I O N A L ) Programming the system Date and Time. The User Program Mode may also be used to set the system Date and Time which display on the keypad. Enter the User Program Mode A C T I V A T E Enter your User Code, then tap...

  • Page 38: Keypad Messages

    K E Y P AD M E S S AG E S The keypad can display the following functional messages. Other diagnostic messages are available for the installer or servicer. Should any unfamiliar messages appear, call your dealer for service. All zones operating;...
  • Page 39 K E Y P AD M E S S AG E S Alarm condition, followed by zone description(s). “ALARM” and zones will display after * * * * A L A R M * * * * system is disarmed. Note zones, then tap to clear keypad.
  • Page 40 K E Y P AD M E S S AG E S The system is in the process of reporting a cancel signal to central station which will A T T E M P T I N G T O cancel the alarm which it has just reported.

  • Page 41: Using The Onscreen Keyboard

    U S I N G T H E O N S C R E E N K E Y B O AR D Standard Keyboard The "Standard" onscreen keyboard allows you to type text, numbers and other characters. With some applications, the onscreen keyboard opens automatically; most other applications (such as in the Caption popup shown at right) require you to tap a text field to open the keyboard.
  • Page 42 U S I N G T H E O N S C R E E N K E Y B O AR D ( C O N T ' D ) Numbers and Symbols On the "Standard" keyboard shown on the previous page, tap the "?123" key and switch to the "Numbers and Symbols"...
  • Page 43 U S I N G T H E O N S C R E E N K E Y B O AR D ( C O N T ' D ) Additional Symbols On the "Numbers and Symbols" keyboard shown on the previous page, tap the unlit "ALT" key and switch to the "Additional Symbols"...

  • Page 44: User Settings Menu

    U S E R S E T T I N G S M E N U Tablet Date and Time Display Screensaver Options Sound Touch Screen Calibration Video Camera List Discover All Cameras Home Time Enable Weather Options Z-wave Remote Login IBR-ITAB Napco Security Application "User Settings" Wi-Fi Option Button Voice App Version Reconnect...
  • Page 45 S E T T I N G S M E N U I C O N S "TOP OF SCREEN" ICONS When in the Settings menu, several active (touchable) icons appear at the top of IBR-ITAB screen: 3:48 Go Back to Previous Screen:...
  • Page 46 Set date: Tap to open a dialog that allows the month, Display - Allows changes to the IBR-ITAB display screen. day and year to be manually set in the IBR-ITAB. Brightness: Tap to open a sliding status bar control. Note: The "Automatic" menu selection (above) must be unchecked to enable this menu item.
  • Page 47 (unavailable with some mod- select "Never Timeout". Note: When this feature is en- els). abled and the screen dims, the IBR-ITAB also enters "sleep mode", an inactive state to save power. To re- Touch Screen Calibration - Tap to start the IBR-ITAB's awaken, touch the screen.
  • Page 48 Note: The Touch Screen Calibration screen can be entered at any time by pressing and holding the "Home" button at the top edge of the IBR-ITAB (the far right button of the 4 buttons along the top of the hous-...
  • Page 49 Camera List - Displays a list of all active video cameras in your system. Discover All Cameras - Initiates the network scanning process that discovers all cameras attached to the iBridge net- work. Upon discovery, the video for the discovered cameras will be available for display from the IBR-ITAB Home Screen (Video button).
  • Page 50 U S E R S E T T I N G S > H O M E Time Enable - Check to enable the IBR-ITAB to display Zip code entry: Check to associate the weather the time on the Home Screen. Also automatically report feed to the area of the United States speci- corrects for Daylight Saving Time.
  • Page 51 U S E R S E T T I N G S > Z - W AV E Tap the User Settings button, then tap Z-Wave* to open the Automation Management screen. Tap to add, remove, Tap for Z-Wave Help and configure your Z- Menus Wave system devices...
  • Page 52 App Version - Displays the version of the Napco Security is permitted. Application currently installed within the IBR-ITAB. Thus if the IBR-ITAB is lost or misplaced, access to your home system via an external network will be restricted. Reconnect - Tap to break the wireless connection be-...
  • Page 53 I B R - I T AB " V I D E O " B U T T O N If your system has video cam- Home - Tap to go to the IBR-ITAB Home Screen. eras, tap the Video button to view real-time video feed for up to four (4) cameras.
  • Page 54 Some pro- Gallery: Tap to open a GUI that allows you to view image grams are pre-installed at files stored on your IBR-ITAB. Tap the "Set as" icon to crop the factory, including: your image file, tap Share (requires appropriate file-sharing...
  • Page 55 No- tification to assign the audio file to play for incoming messages or other IBR-ITAB alerts. Edit Title: Tap to rename the audio file name. Delete: Tap to remove the file from your IBR-ITAB.

  • Page 56: Glossary

    G L O S S AR Y Following are brief descriptions of terms and features used herein that may be unfamiliar to you. Some of the features are programmable options that may or may not apply to your particular system. Abort Delay - A delay period that a keypad of a different Area through programmed zone has been opened.
  • Page 57 G L O S S AR Y ( C O N T ' D ) Exit/Entry Delays - Separate sounder alert of an impending alarm. at each keypad to alert that (a) entry delays that let you exit and enter your This option is programmable by zone delay has started;...
  • Page 58 G L O S S AR Y ( C O N T ' D ) delay only occurs if re-entry Zones - Independent circuits that takes place through the Selective-Bypassed Zone: A protect specific areas of the normal exit/entry door first. zone that can be individually premises: bypassed using the...

  • Page 59: System Trouble Error Codes

    S Y S T E M T R O U B L E E R R O R C O D E S Your control panel is capable of detecting a variety of troubles that may affect system performance. In the unlikely event that a problem should occur, the SYS TBL (system trouble) icon will display on the left side of keypad window along with one or more of the following error codes.
  • Page 60 S Y S T E M T R O U B L E E R R O R C O D E S ( C O N T ' D ) Trouble System Trouble Action Indication Condition Wireless Transmitter E04-NN A problem has been detected with a wireless transmitter.
  • Page 61 S Y S T E M T R O U B L E E R R O R C O D E S ( C O N T ' D ) Trouble System Trouble Action Indication Condition Keypad Response Failure Call installing company for service.
  • Page 62 S Y S T E M T R O U B L E E R R O R C O D E S ( C O N T ' D ) Trouble System Trouble Action Indication Condition User Program Memory E19-00 Call installing company for service.
  • Page 63 S Y S T E M T R O U B L E E R R O R C O D E S ( C O N T ' D ) Trouble System Trouble Action Indication Condition A wireless motion sensor on the zone indicated has failed its automatic self test routine. E40-00 RF Self Test Failure Call installing company for service.

  • Page 64: Troubleshooting

    T R O U B L E S H O O T I N G What do I do if... For more info... I try to arm my system but the keypad just displays “ZONES FAULTED” and “CAN’T ARM SYSTEM” and beeps at me. A zone is open.
  • Page 65 N O T E S...
  • Page 66 N O T E S...
  • Page 67 C O P Y R I G H T & T R AD E M AR K S Napco Security Technologies, Inc. 333 Bayview Avenue Amityville, New York 11701 For Sales and Repairs, (800) 645-9445 For Technical Service, (800) 645-9440 or visit us at http://tech.napcosecurity.com/ (Note: Technical Service is for security professionals only) Publicly traded on NASDAQ...
  • Page 68 N AP C O L I M I T E D W AR R AN T Y NAPCO SECURITY SYSTEMS, INC. (NAPCO) warrants its products to be free from manufacturing representations, whether oral or written, are either merged herein or are expressly canceled. NAPCO defects in materials and workmanship for thirty-six months following the date of manufacture.
