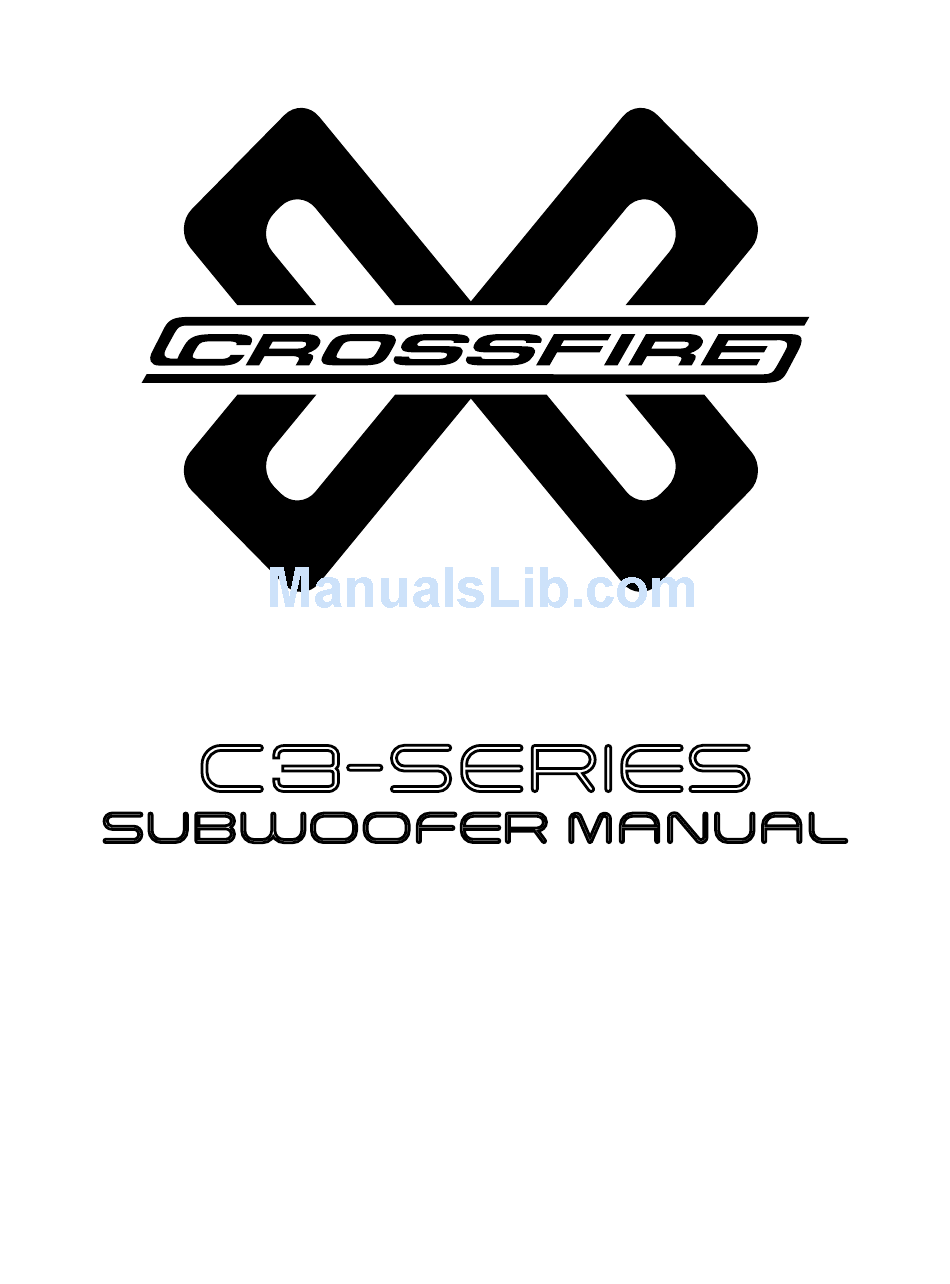

- Page 1 C3-sERIES SUBWOOFER MANUAL...
- Page 2 Notes On Subwoofer Limits: Subs have two limitations: mechanical and thermal. Crossfire combines these into the ratings explained at the top. Thermal power handling of the woofer is basically how many watts you can pump into it before it burns or melts: -Amps’...
- Page 3 SPECS AND DIMENSIONS Model: C3 10S C3 10D C3 12S C3 12D Nominal Size 10" 10" 12" 12" Outer Diameter (OD) 10.8" / 275mm 10.8" / 275mm 12.6" / 320mm 12.6" / 320mm Inner Diameter (ID) 9.2" / 234mm 9.2" / 234mm 11"...
- Page 4 Port Radius: Rounding the port ends reduces distortion at lower volumes. At high SPL, the air just “jets” in and out and the radiusing has little effect. (For slot ports, the shape is different, so do radius the inside end if you can). Crossfire recommends the use of Precision Ports for all round port applications. Precision...
- Page 5 These recomended enclosures are general enclosure recomendations and can be varied to suit each customers application. For SPL type applications, enclosure volumes and tuning frequencies will vary for each application. For custom enclosure applications please contact Crossfire Technical Service Dept.
- Page 6 DUAL VOICE COIL WIRING OPTIONS Speaker Wiring Comments: For each individual subwoofer, it doesn’t matter if you wire the coils in series or parallel. However, don’t wire in series with another subwoofer - that results in less than optimum power sharing and sound. Likewise, don’t wire just one coil of a dual coil setup.
- Page 7 All returns must be sent with an RA # on the outside of the box. Any and all products sent without an RA# will be refused. An RA # can be obtained by calling or faxing Crossfire and requesting the number.
- Page 8 756 Port America Place. Suite 100 Grapevine, TX. 76051 Ph: (972) 570-0800 | (800) 332-2771 www.crossfirecaraudio.com...
