CIK HG-A800 Connection Guide (安装指导)

Wi-Fi External Antenna

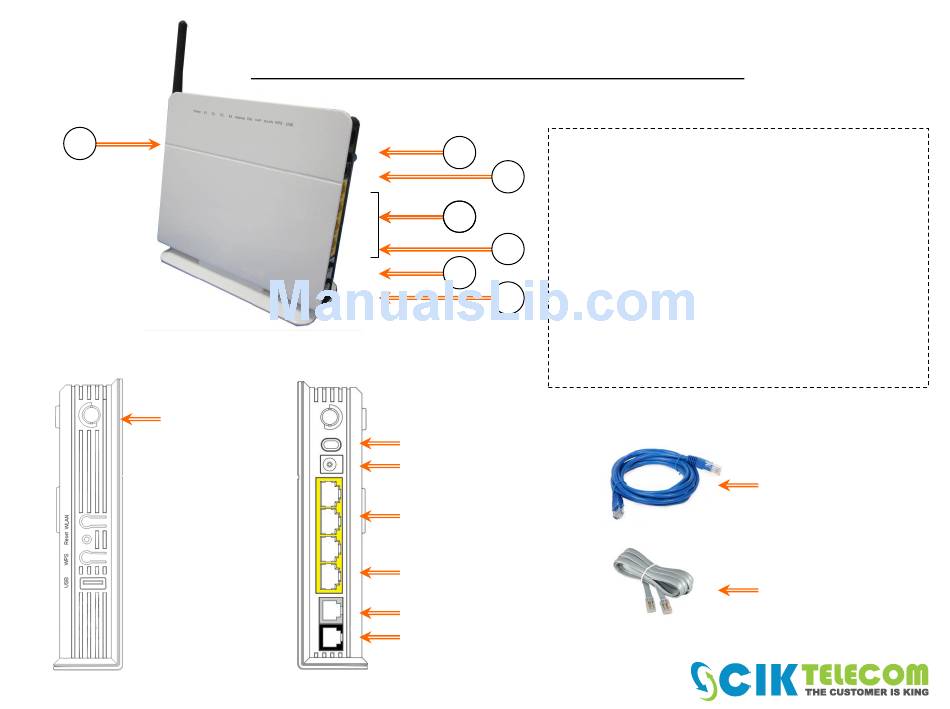

(1) POWER on/off Switch

(2) Power Supply (12V;1.0A)

(3) LAN Ports #1~#3 (RJ-45 10/100Mbps)

(4) LAN Ports #4 (Diagnosis Use)

(5) Phone (RJ-11 port)

(6) ADSL/FTTN (RJ-11 port)

(7) Wi-Fi External Antenna

POWER on/off Switch

Power Supply (12V;1.0A)

LAN Ports #1~#3

LAN Port #4 (Diagnosis Use)

Phone (RJ-11 port)

ADSL/FTTN (RJ-11 port)

802.11n, 802.11g, 802.11b )

Network Cable (RJ45 jack)

( 网络线 )

Telephone Cable (RJ11 Jack)

电话线 )

(

Need help?

Do you have a question about the HG-A800 and is the answer not in the manual?

Page 1 CIK HG-A800 Connection Guide (安装指导) (1) POWER on/off Switch (2) Power Supply (12V;1.0A) (3) LAN Ports #1~#3 (RJ-45 10/100Mbps) (4) LAN Ports #4 (Diagnosis Use) (5) Phone (RJ-11 port) (6) ADSL/FTTN (RJ-11 port) (7) Wi-Fi External Antenna 802.11n, 802.11g, 802.11b )
Page 2 Notes : a) HG-A800 Modem 1 times initialization (or after RESET) might take 10~15 minutes. HG-A800 调制解调器初始化(复位)过程, 可能需要10 ~ 15分钟 b) Wi-Fi default SSID: CIKxxxx, Key: lower case of HG-A800 MAC address (showing at BACK) 默认密码: 小写的 HG-A800 MAC 地址(背面显示) Wi-Fi的默认 SSID: CIKxxxx c) Router access: http://192.168.12.1, username: user, password: cikvoip...
Page 3 Indicator Lights of HG-A800 (指示灯) Indicator Status/Description Indicates Power. ON when ATA power on; OFF when ATA power off Power 电源指示. ON,ATA电源开启; OFF,ATA电源关闭 OFF 代表以太网断开 OFF when Ethernet is disconnected E1 ~ E4 ON 代表以太网连接 ON when Ethernet is connected (LAN) 闪烁...
Page 4 (Toronto) 416-8481517 (Vancouver) 604-6283877 (Montreal) 514-3128877 Email: care.cs@ciktel.com (Customer Service) support.cik@ciktel.com (Technical Support:) Default Wi-Fi Key is printed on packaging box of HG-A800, or SVG6000RW, or Wi-Fi cable modem 中文安装视频指导: http://www.ciktel.com/portal/Chn/video_installation_guide.asp Office Address: Toronto Office (Headquarter) : 282 Consumers Road, Toronto, ON M2J 1P8...
