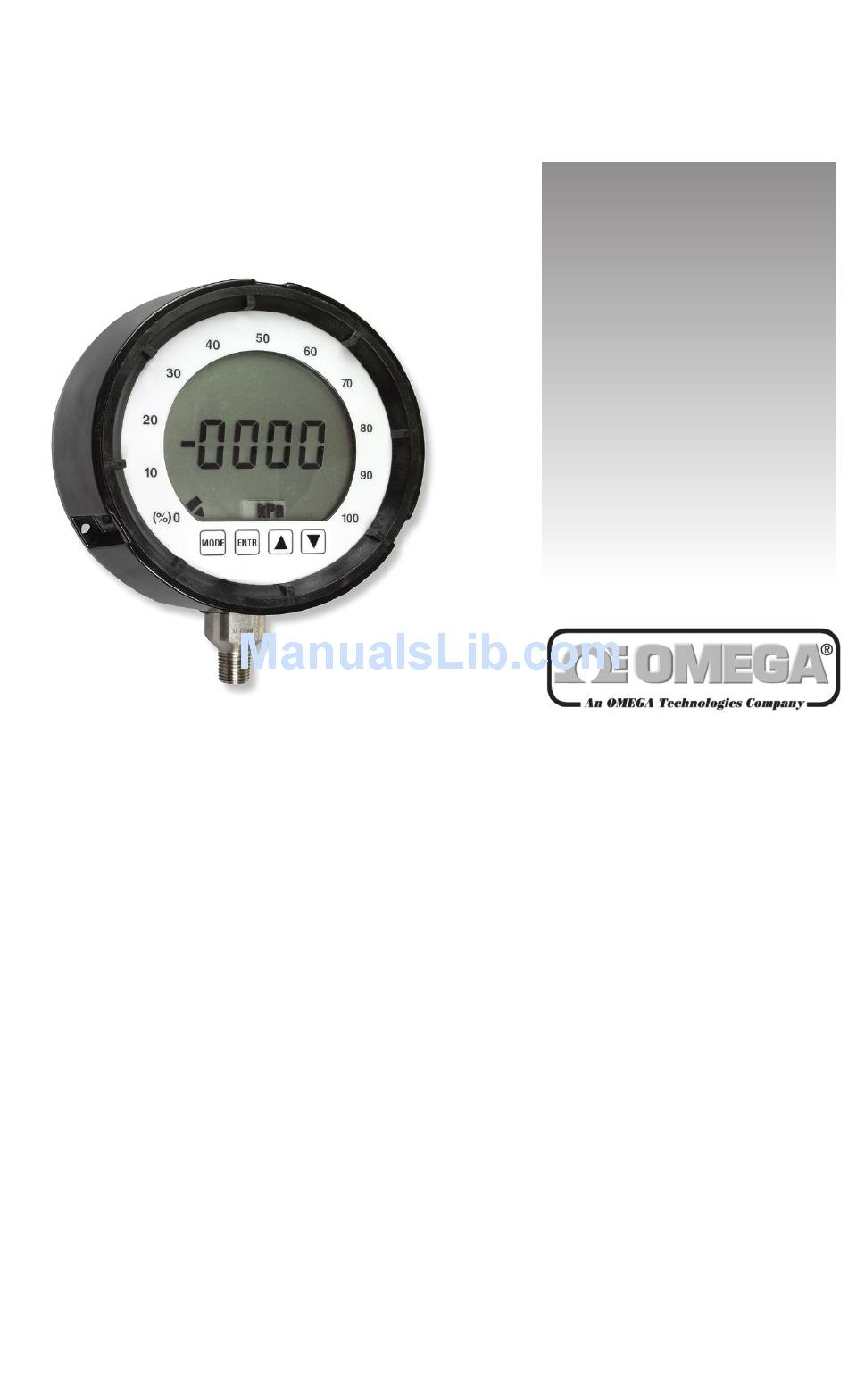

- Page 1 User’s Guide http://www.omega.com e-mail: info@omega.com DPG10L LARGE DISPLAY PRESSURE GAUGE M3367/0606...
- Page 2 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA...Of Course! TEMPERATURE ✓ Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies ✓ Wire: Thermocouple, RTD & Thermistor ✓ Calibrators & Ice Point References ✓ Recorders, Controllers & Process Monitors ✓ Infrared Pyrometers PRESSURE, STRAIN AND FORCE ✓ Transducers & Strain Gages ✓ Load Cells & Pressure Gages ✓ Displacement Transducers ✓ Instrumentation & Accessories FLOW/LEVEL ✓ Rotameters, Gas Mass Flowmeters & Flow Computers...
-
Page 3: Table Of Contents
M3367/0606 DPG10L Table of Contents Warranty/Disclaimer..2 Return.Requests/Inquiries..3 Instructions...4. . To.Zero.or.“TARE.OUT”.an.existing.offset...4 . To.select.PEAK.HI.or.PEAK.LO.hold.functions..4 . To.set.Alarms..5 . Zero.Trimming..6 . Re-calibration...6 . Battery.Replacement...6 Output.Options..7 . 0-2.V.Analog.Output.Signal.Option...7 . Alarm(s).Option...7 Wiring..8... -
Page 4: Warranty/Disclaimer
DPG10L • Warranty/Disclaimer OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s Warranty adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product. If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components which wear are not warranted, including but not limited contact points, fuses, and triacs. OMEGA is please to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. -
Page 5: Return.requests/Inquiries
M3367/0606 • Return Requests/Inquiries Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence. The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit. Warranty Returns For WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA: 1. Purchase Order number under which the product was PURCHASED, 2. Model and serial number of the product under warranty, and 3. Repair instructions and/or specific problem relative to the product. Non-Warranty Repairs For NON-WARRANTY REPAIRS, consult OMEGA for current repair charges. Have the following information available BEFORE contact OMEGA: 1. Purchase Order number to cover the COST of the repair, 2. Model and serial number of the product, and 3. Repair instructions and/or specific problem relative to the product. DPG10L... -
Page 6: Instructions
DPG10L • Instructions The model DPG10L Digital Pressure Gauge has several features not normally found as standard in Digital Pressure Gauges. These include the Analog Scale, Tare, and Peak Holds. The Analog Scale is a 40 segment display that appears around the edge of the liquid crystal display. This scale represents the pressure reading as a percentage of full scale, and each individual segment equals 2.5%. The Tare feature provides a method of zeroing out an existing offset such as the weight of the platform on a hydraulic scale. The Hold feature allows the user to select Hi or Lo. When the Hold is enabled the reading displayed is the highest or lowest pressure experienced in the system since Hold was enabled, and this information will continue to be updated at the rate of six times a second until Hold is disabled. 1.0 To Zero or “TARE OUT” an existing offset 1.1 Press and hold the “MODE” key until the reading starts flashing. Release “MODE” key. 1.2 Press “ENTR” key until the reading becomes 0000. NOTE:.Tare.range.is.100%.of.Full.Scale. 1.3 To return to the Gross reading press and hold “ENTR”, then with “ENTR” still depressed press “MODE” until the reading returns to the gross, then release both keys. 2.0 To select PEAK HI or PEAK LO hold functions 2.1... -
Page 7: To.set.alarms
3.0 To Set Alarms 3.1 Press and hold the “MODE” key until the reading starts flashing, then Press the “MODE” key twice more. The display will read “AL 1”. Press the “ENTR” key to display the alarm setting. Pressing the “ENTR” key again will set the alarm and return the display to the normal mode. If the alarm setting is to be changed, the “up” and “down” keys can be used to increase or decrease the setting one count at a time, Pressing the “MODE” key and holding it down while Pressing “up” or “down” momentarily will change 10 counts for each key operation. If the “MODE” key and “up” or “down” are held down simultaneously, the setting will ‘FREE RUN’ until the key is released. NOTE:.While.setting.the.alarm,.only.one.segment.of.the.analog.scale.is. displayed.and.it.corresponds.to.the.%.full.scale.of.the.alarm.setting. 3.2 When the desired alarm setting is displayed, Press “ENTR” to set and return to normal mode. 3.3 To set alarm 2: Press and hold the “MODE” key until the reading starts flashing, then Press the “MODE” key three more times. The display will read “AL 2”. Press “ENTR” key to display the alarm setting. Pressing the “ENTR” key again will set the alarm and return the display to the normal mode. If the alarm setting is to be changed, the “up” and “down” keys can be used to increase or decrease the setting one count at a time, Pressing the “MODE” key and holding it down while Pressing “up” or “down” momentarily will change 10 counts for each key operation. If the “MODE” key and “up” or “down” are held down simultaneously, the setting will ‘FREE RUN’ until the key is released. NOTE:.While.setting.the.alarm,.only.one.segment.of.the.analog.scale.is. displayed.and.it.corresponds.to.the.%.full.scale.of.the.alarm.setting. 3.4 When the desired alarm setting is displayed, Press “ENTR” to set and return to normal mode. DPG10L... -
Page 8: Zero.trimming
DPG10L 3.5 The alarm set point indicator segment of the bar graph will “blink” when that set point is activated. The hookup of optional outputs is covered later in this manual 4.0 Zero Trimming 4.1 Should it be necessary to readjust the Zero setting, an adjustment has been provided. Prior to adjusting the zero, verify that you are displaying the “gross” zero reading by performing step 1.3. On the back of the case, in the upper left, there are two cover screws labeled “Z” and “S”. Remove the screw covering the “Z” and utilizing a jewelers screwdriver, turn the small screw to re-zero the unit. The ideal zero is indicated by a reading of 0000 with an intermittently flashing “-” sign. NOTE:.Do.not.readjust.the.“S”.as.this.will.invalidate.the.factory. calibration. 5.0 Re-calibration This procedure requires a known pressure source of at least ± 0.1% accuracy in order to fully utilize the potential of the DPG10L (If not available, the gauge may be returned to OMEGA for re-certification) 5.1 With 0 psig applied (port vented) adjust zero per instructions of 4.0. 5.2 Apply full scale pressure to the pressure port and adjust the “S” until the display reads the correct pressure. 5.3 Re-check zero and re-adjust the zero if required. 5.4 Repeat steps 5.2 and 5.3 until no further adjustment is required. 6.0 Battery Replacement 6.1 To access the battery, the unit must be partially disassembled. Remove the thread ring surrounding the lens by turning counter clockwise. Carefully turn the unit face down with one hand prepared to “catch” the lens and display board as they fall from the housing. Do not allow the display board to fall more than an inch or two as there are wires connecting it to the main housing. -
Page 9: Output.options
M3367/0606 • DPG10L Output Options Several output signals are available on the circular 6 pin connector located on the rear of the unit. Depending on the option selected the signals are present on pins as follows. DPG10L Pin Out Table PG-10000 Pin Out Table 4-20 mA with Alarm 4-20 mA + Excitation + Excitation + Excitation – Excitation – Excitation Dig Gnd Alarm 2 – Excitation Alarm 1 N/C indicates no connection. -
Page 10: Wiring
DPG10L • Wiring Typical 4-20 mA Circuit Gauge Connector + EXCITATION – EXCITATION 4-20 mA CURRENT LOOP Typical 0-5 VDC Circuit Gauge Connector + EXCITATION + OUTPUT – OUTPUT – EXCITATION Typical 4-20 mA Circuit with Open Collector Alarms Process... - Page 11 Thank You for Purchasing OMEGA Products OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering. It is the policy of OMEGA to comply with all worldwide safety and EMC/ EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice. WARNING: These products are not designed for use in, and should not be used for, patient-connected applications. Again, thank you for your interest in OMEGA. We welcome the opportunity to help you achieve your application goals.
