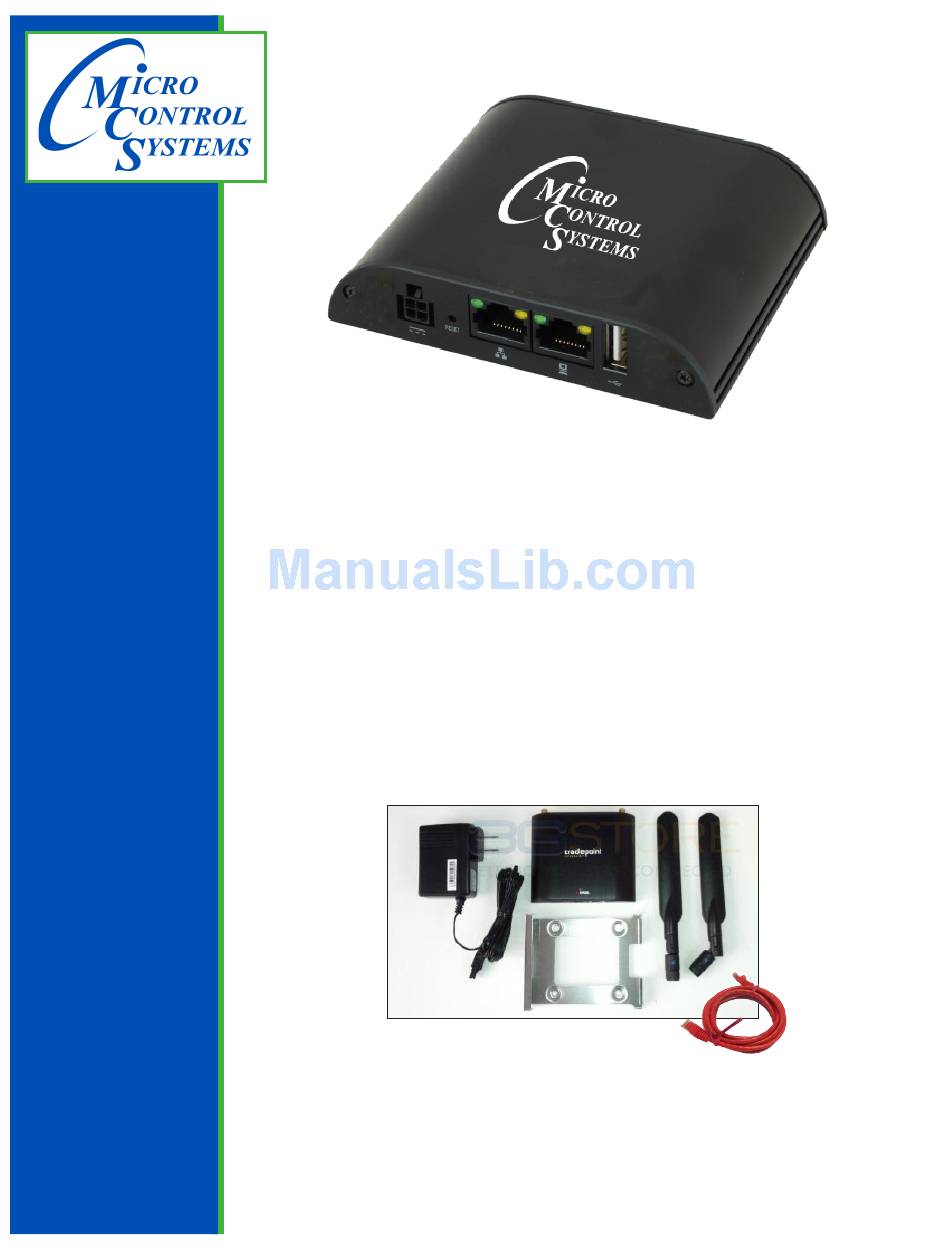

- Page 1 5580 Enterprise Pkwy. Fort Myers, FL 33905 Office: 239-694-0089 Fax: 239-694-0031 www.mcscontrols.com Installation and Reference Guide Package contains the parts shown below: MCS Total Solution Ethernet Cross Over for all your Cable supplied Control Needs Energy Efficient and RoHS Compliant...
-
Page 2: Disclaminer And Revison Page
Micro Control Systems, Inc. This document and the information contained herein shall be treated as proprietary. Reasonable provisions shall be provided to ensure that this information remains proprietary by your employees, agents, and other personnel that may have access to this document. -
Page 3: Table Of Contents
Table of Contents ..........................3 1. MCS- WIRELESS-3G INTERFACE ..................4 2. INSTALLATION 2.1 Location ............................5 2.2 Attaching MCS-WIRELESS-3G to mounting bracket ..............5 3. REMOVING FROM THE MOUNTING BRACKET ............6 4. BASIC SETUP 4.1 Quick Start ............................7 4.2 Connect to Mcs-Magnum ......................7 4.3 Network Address on MCS-Magnum .....................7... -
Page 4: Mcs-Wireless-3G Interface
MODEM POWER CONNECTOR LEDS CONNECTOR MODEM ON/OFF Modem Antennas: The MCS-WIRELESS-3G comes with two modem antennas to enhance reception for the embedded modem. These antennas are simple to attach and adjust. ETHERNET CONNECTIONS ETHERNET COMPUTERS DATA SOURCE OR LOCSAL DEVICES... -
Page 5: Location
NOTE: Screws are not provided because the type of screw required depends on the mounting surface. 2) Place the router’s edge 2.2. ATTACHING THE MCS-WIRELESS-3G TO against the bottom of the THE MOUNTING BRACKET bracket. 2) Place the router’s edge against the bottom of the 3) Press the router down bracket. -
Page 6: Removing From The Mounting Bracket
3. REMOVING FROM MOUNTING BRACKET COR | USER MANUAL Firmware ver. 5.0.0 CRADLEPOINT 3.1 Removing the MCS-WIRELESS-3G from the Mounting Bracket From the top of the bracket, press down firmly on the router using your thumb(s) 2.2.2 Removing the COR from the Mounting Bracket and pull the device out. -
Page 7: Basic Setup
Connect the end of the supplied CROSSOVER ETHERNET CABLE to the ETHERNET DATA SOURCE connector on the rear of the Ethernet Cross Over MCS-WIRELESS-3G and the other end to the IO port on the Cable supplied MCS-MAGNUM CONTROLLER. 4.5 POWER SUPPLY Plug the power supply into an electrical outlet and connect it to the router. -
Page 8: Connections To Multiple Mcs Magnums
MCS-WIRELESS-3G Modem using an Ethernet Switch (not supplied) that will enable you to communicate with each MCS-MAGNUM anywhere in the Continental United States as long as your MCS-WIRELESS-3G is hard wired to an existing ethernet network. (see wiring diagram on page 9). -
Page 9: Wiring For Multiple Mcs-Magnums
MCS-WIRELESS-3G REVISION 1 6. WIRING FOR MULTIPLE MCS-MAGNUMS WIRING DIAGRAM... -
Page 10: High-Gain External Antenna
MCS-WIRELESS-3G REVISION 1 7. OPTIONAL EXTERNAL ANTENNA HIGH-GAIN EXTERNAL ANTENNA External Antennas are available where better reception is needed. Email: support@mcscontrols.com for additional information WIDE-BAND OMMI-DIRECTIONAL Dual-Band Omni- Directional Antenna MUTI-BAND OMMI-DIRECTIONAL... - Page 11 MCS-WIRELESS-3G REVISION 1 NOTES...
