Cubix HostEngine 4U User Manual

Host computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

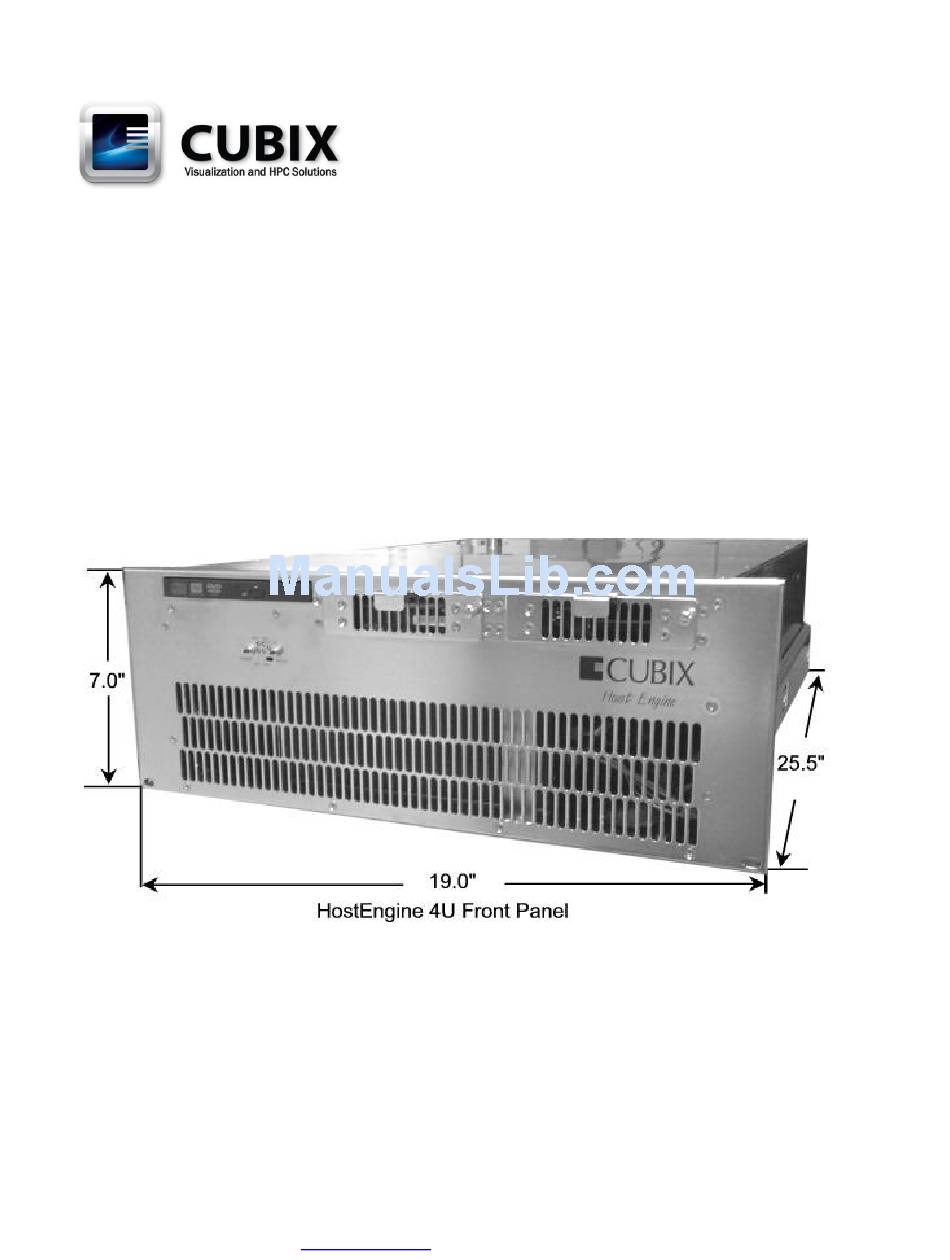

HostEngine 4U computer features Intel® Xeon
with the Intel C612 chipset. HostEngine 4U provides four PCI Express (PCIe) Gen 3.0 x16
expansion slots. Each slot accommodates a full-height, full-length, double-wide GPU or a half-
height, half-length controller such as the Cubix Host Interface Controller (HIC) that connects to
Cubix Xpander products. Each HIC connects to multiple slots within an Xpander Rackmount 8
or other Xpander products.
By connecting HostEngine to GPU-Xpander Rackmount 8, you can add eight double-wide
GPUs such as NVIDIA® Quadro M5000 or M6000 to the HostEngine 4U computer for running
Autodesk® 3ds Max or Bunkspeed® Shot with NVIDIA iray running on Linux or Microsoft®
Windows®. You can also run BlackMagic Design® DaVinci Resolve® for Linux on HostEngine
4U computer. Connecting to Xpander Rackmount 8 also enables you to connect to GPU
Compute Engines such as NVIDIA or AMD GPUs for HPC applications, virtual desktop projects
or multiple Intel Xeon Phi coprocessors for parallel processing.
Cubix Corporation  2800 Lockheed Way  Carson City, NV 89706-0719  Page 1
Sales 800.829.0550 
HostEngine 4U Host
Computer User Guide
E5-2600v3 Series (Haswell) dual-processors
®
 sales@cubix.com  host-engine-4u-x10drg-q-20151211
http://www.cubix.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HostEngine 4U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cubix HostEngine 4U

Summary of Contents for Cubix HostEngine 4U

  • Page 1 E5-2600v3 Series (Haswell) dual-processors ® with the Intel C612 chipset. HostEngine 4U provides four PCI Express (PCIe) Gen 3.0 x16 expansion slots. Each slot accommodates a full-height, full-length, double-wide GPU or a half- height, half-length controller such as the Cubix Host Interface Controller (HIC) that connects to Cubix Xpander products.
  • Page 2 Warranty / Period Parts & labor return to manufacturer / 2 year Ext. Warranty Period Optional 3 year Cubix Corporation  2800 Lockheed Way  Carson City, NV 89706-0719  Page 2 Sales 800.829.0550   sales@cubix.com  host-engine-4u- x10drg-q-20151211 http://www.cubix.com...
  • Page 3 K4200 for connecting one or more 4K / UHD displays, and the PCIe Gen 3 x16 slots are occupied, use CPU1 Slot 10. HostEngine 4U supports one to four 2.5-inch SATA 3 solid-state drives (SSDs) to boot the operating system (OS). HostEngine 4U also accommodates PCIe flash / SSDs. Install PCIe flash or SSD cards in CPU1 Slot 10 and / or CPU2 Slot 11, if available.
  • Page 4  Slide HostEngine into the cabinet.  Replace and tighten the retention screws.  Power up HostEngine. Cubix Corporation  2800 Lockheed Way  Carson City, NV 89706-0719  Page 4 Sales 800.829.0550   sales@cubix.com  host-engine-4u- x10drg-q-20151211 http://www.cubix.com...
  • Page 5 Xpander enclosures using external PCIe x16 cables, if needed. With these connections, you can mount HostEngine immediately above or below GPU-Xpander Rackmount 8. You can also install PCIe cards inside HostEngine 4U. For example, install 4 x full-length, full-height, double-wide GPUs inside HostEngine 4U.
  • Page 6 Philips #2 screwdriver, a flat- blade screwdriver and a 3/8” wrench or socket and drive. Cubix Corporation  2800 Lockheed Way  Carson City, NV 89706-0719  Page 6 Sales 800.829.0550   sales@cubix.com  host-engine-4u- x10drg-q-20151211...
  • Page 7 For this procedure, use a Philips #2 screwdriver. For accessing HostEngine to add, move or replace memory, HICs, GPUs or other adapters, use the following procedure. 1. Shut down gracefully HostEngine. Cubix Corporation  2800 Lockheed Way  Carson City, NV 89706-0719  Page 7 Sales 800.829.0550   sales@cubix.com  host-engine-4u- x10drg-q-20151211...
  • Page 8 7. Gently slide HostEngine back in place. 8. Connect the AC power cord into the HostEngine rear receptacle. 9. Power up HostEngine. Cubix Corporation  2800 Lockheed Way  Carson City, NV 89706-0719  Page 8 Sales 800.829.0550   sales@cubix.com  host-engine-4u- x10drg-q-20151211...
