O
'
WNER
S MANUAL

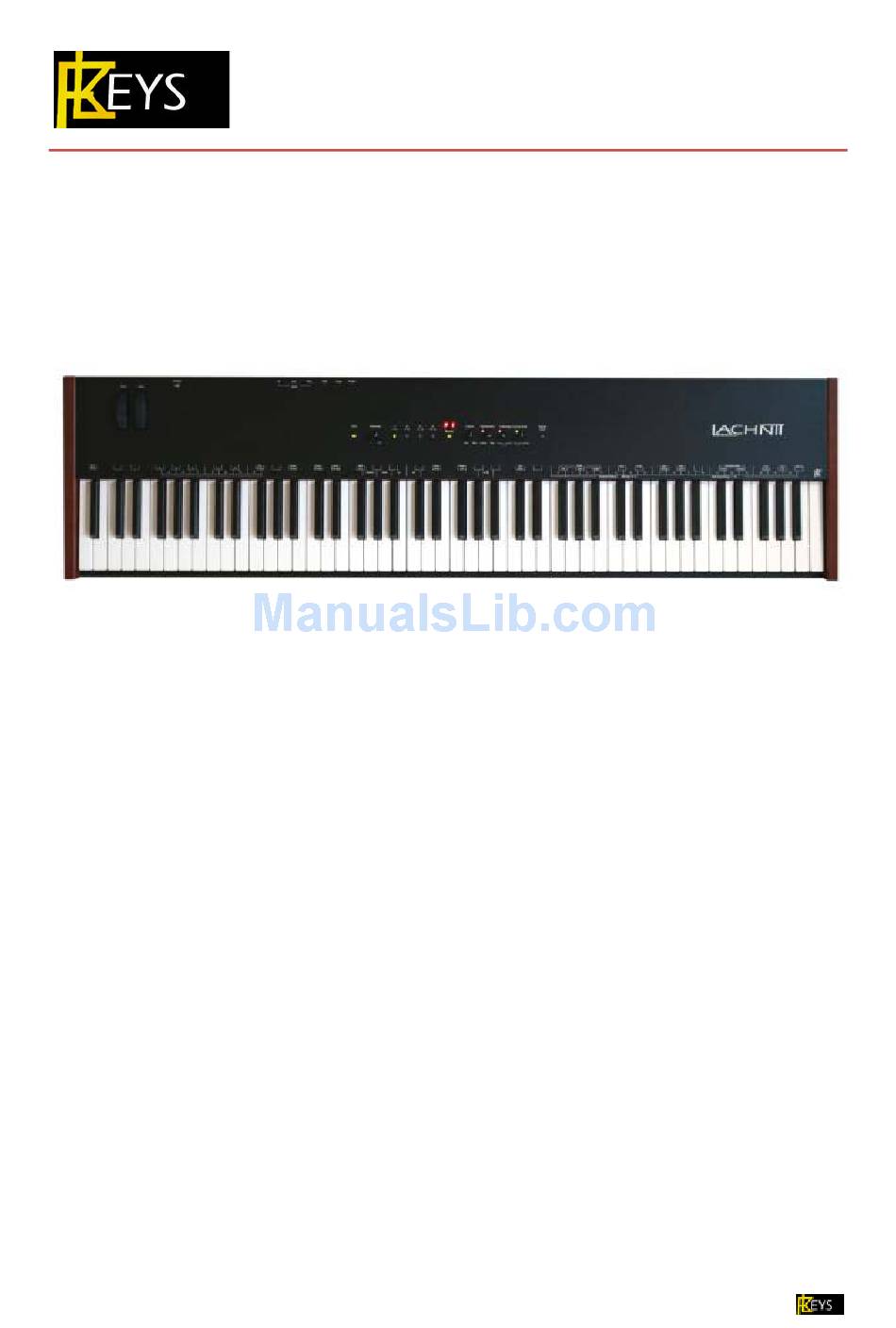

MK Standard 88, MK Studio 88 and
MK Imperial 97
LACHNIT
LACHNIT
Thank you very much for choosing a
product.
FLKeys
180 years of Viennese piano building experience, as well as 30 years of research and knowledge in
piano electronics are packed into each LACHNIT FLK MIDI keyboard.
Our customers are mainly professional musicians and artists but our products are also suitable for
students, especially as they give you the freedom to practice anytime anywhere.
Many thoughts were spent to make operating the keyboard as easy as possible. If you are familiar
with MIDI basics, you will be able to play your MK22 instantly without having to look into the manual
for first steps instructions.
Nevertheless, we advise you to read your owner's manual thoroughly as it will give you valuable
information to get the best results out of your LACHNIT MK22 -keyboard.
Friedrich Lachnit
page 1
Manual MK22 V 1_05 Z31
Contents
Advertisement
Table of Contents
Related Manuals for FLKeys LACHNIT MK Standard 88
Summary of Contents for FLKeys LACHNIT MK Standard 88
- Page 1 LACHNIT Thank you very much for choosing a product. FLKeys 180 years of Viennese piano building experience, as well as 30 years of research and knowledge in piano electronics are packed into each LACHNIT FLK MIDI keyboard. Our customers are mainly professional musicians and artists but our products are also suitable for students, especially as they give you the freedom to practice anytime anywhere.
-
Page 2: Table Of Contents
ONTENTS CONTENTS ........................2 FIRST STEPS ........................4 AT A GLANCE ........................5 Control panel ..........................5 Piano Key functions ........................5 Sockets at the back of the keyboard ....................5 OPERATION ........................6 Dynamics ............................. 6 Velocity curve edit ........................6 Keys 1 2 3 4 program selection .................... - Page 3 Knob ............................14 Mod Wheel ..........................14 Aftertouch ..........................14 Pedal Invers ..........................15 Ped Cal ............................15 MIDI Channel Selection 1 – 16 ..................... 15 Display Brightness ........................15 Examples secondary key functions ....................16 TECHNICAL DETAILS ...................... 17 Pedals ............................
-
Page 4: First Steps
IRST TEPS SPECIAL MESSAGE SECTION Read enclosed safety instructions carefully. Page 22 Place the instrument in a stable position. The surface has to be as even as possible to ensure a stable position for all legs to touch the ground. We recommend using a high quality keyboard stand. Find a position where all legs or the bottom of the keyboard rest in a secure stable position. -
Page 5: Control Panel
LANCE ONTROL PANEL Contr. on/off key with turn off delay to prevent accidental switch off user defined controller min-max while in use (0 – 127) Volume Dynamics volume control knob Knob with detent to regulate key dynamics 1 2 3 4 Keys program selection for 16 programs organised in 4 banks Velocity Curve Edit... -
Page 6: Operation
OPERATION YNAMICS The Dynamics controller changes the velocities of the MK22 keys to suit your keystroke. It customizes the output to meet the dynamic needs of the attached sound module. Controller in neutral position: LED is green, display shows Turn left up to or right up to : the LED changes to red. -
Page 7: Display
Example: both controllers set to maximum: Controller setting: Display: Resulting Velocity Curve: Your personal dynamic settings can be assigned by using „Dyn Store“ to the current program number. (For further details see secondary key functions page 10) When recalling a previously stored dynamic setting all stored parameters (dynamic and both velocitiy curves) are automatically set. -
Page 8: Display
1 2 3 4 PROGRAM SELECTION Push to see the active bank number. Mode Hold and push keys 1 – 4 to select a bank. After selecting a bank the first program of a bank is Mode always selected. Example: Display: key 2: green LED on program 2: is active ... -
Page 9: Display
CONTR. with FTERTOUCH SENSIBILITY ADJUSTABLE The aftertouch sensitivity is automatically adjusted by the current position of the dynamics knob. If you want to adjust the aftertouch sensitivity manually whilst playing, assign the controller number 0 using secondary function keys. In this state, the display will show when turning the CONTR ... -
Page 10: Secondary Piano Key Functions
ECONDARY IANO KEY FUNCTIONS Please read following instructions carefully before using the secondary key functions! The keys don’t generate sound if you switch to secondary piano key function mode. If you press a key you will change the settings. Therefore make sure you exit secondary piano key function mode before playing. -
Page 11: User Recall
ECALL Reset to last stored user defined setting You can use USER RECALL whilst playing. You don’t have to change to secondary piano key function mode. To activate U push the keys at the same time for one second till ECALL Mode Panic Reset... -
Page 12: Midi Settings
MIDI S ETTINGS Push and ON. Display shows Mode Push and hold the correspondent black key ROGRAM HANGE ONTROL HANGE MIDI A CTIVITY Change settings with the respective white keys. Receive (g) Shows received data Send (a) Shows sent data on: receive/send (h) Received AND sent data / acoustic signal on off (c1) -
Page 13: Dyn Store
TORE Push and ON. Display shows Mode Push and hold the black key “Dyn Store” (…) for three seconds. Acoustic signal confirms successful input. Display shows first: then Confirmation: Exit secondary piano key function mode with the key Mode. Dynamic und Velocity Curve Edit settings are stored on the currently program number location. -
Page 14: Expression
XPRESSION Please note: Factory setting Expression OFF ! Push . Display shows Mode Push and hold the correspondent black key. Change settings by using the white keys. Use the black key “Expr.” (c#3) to define the used controller number. Default: Expression (controller number 11) Exit secondary piano key function mode with the key Mode. -
Page 15: Midi C Hannel
EDAL NVERS Push and ON. Display shows Mode Select a controller using black keys and push the black key „Ped Invers“ to invert the controller (relative to the current state). The display will show or for an inverted controller and for a non-inverted controller. -
Page 16: Examples Secondary Key Functions
XAMPLES SECONDARY KEY FUNCTIONS You want to activate the Piano Mode: Push and ON. The 4 program selection keys turn red and the mode key starts blinking. The MODE secondary piano key function mode is activated; display shows Hold down the black key for “Piano Mode”... -
Page 17: Ped Cal"
TECHNICAL DETAILS EDALS Stereo Jack: Pedal (prepared to work with FLK pedals stereo jacks) Pedal Right / damper / sustain Pedal Left / soft pedal Stereo Jack: Expr. / 2 (prepared to work with the FLK triple pedal mono jack) Pedal Mid / sostenuto Expression (Wiper) Original FLK pedals feature a continuous damper pedal. -
Page 18: Sympathetic Resonance
Win XP ™ shows it as „USB Audio Device“. If so you can install the FLK USB driver for Win XP. Then it will be listed by name. FLK drivers can be downloaded from our website www.flkeys.at page 18 Manual MK22 V 1_05 Z31... -
Page 19: Power Supply
Always use the original FLK power supply. It is suitable for AC voltage 100 V to 240 V at 47 Hz to 63 Damages caused by using any other form of power supply are not covered by the FLKeys warranty. - Page 20 MK22 ACTORY SETTINGS MIDI Controller Restored on Function value / setting Notes power Up Midi Program Omni Program Change Control Change MIDI activity receive /transmit Piano Mode Waterfall Off / MIDI 100 Pedal right damper switch On sustain pedal Pedal mid sostenuto switch On Pedal left soft switch...
- Page 21 Model: MK22 Studio 11.01.2012, Version 1.00 MIDI I MPLEMENTATION HART Function Transmitted Recognized Remarks Basic Default 1 – 16 1 – 16 Memorized Channel: Changed 1 – 16 1 – 16 Default 1, 3 1, 3 Memorized Mode Messages Altered ****************** 4 =>...
-
Page 22: Special Message Section
1-12 Edition / ICES-003 Issue 5 August 2012. Modifications not expressly approved by However, FLKeys reserves the right to change FLKeys may void your authority to use the or modify any of the specifications without product. notice or obligation to update existing units. - Page 23 If any liquid such Then have the device inspected by FLKeys as water seeps into the instrument, turn off service personnel.
- Page 24 Never insert or drop paper, metallic, or other instrument to set the desired listening level. This product in combination with sound objects into the gaps on the panel or software, an amplifier and headphones or keyboard. This could cause physical injury to speaker/s, may be capable of producing sound you or others, damage to the instrument or levels that could cause permanent hearing...
