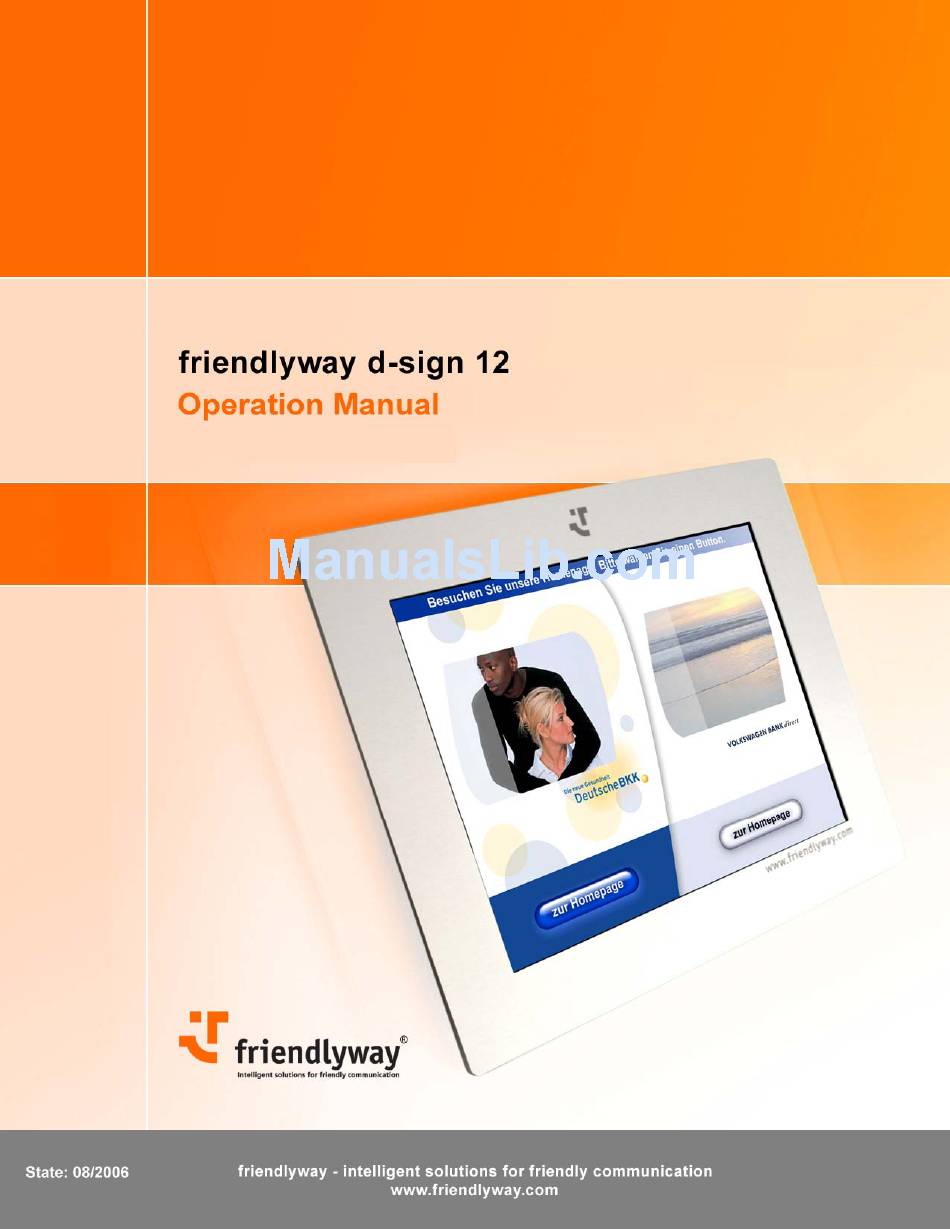

Summary of Contents for friendlyway D-Sing 12
-
Page 3: Table Of Contents
1. Introduction ......................4 1.1. Description of the product ................... 4 1.2. On the structure and content of this manual ............. 4 2. Important information..................5 2.1. Warnings, safety measures and ergonomics............. 5 2.2. Information on care and upkeep................6 2.3. Transportation....................... 6 3. -
Page 4: Introduction
1.1. Description of the product The friendlyway d-sign 12‘’ is a digital signage system for use in enclosed areas. Please read this manual carefully before placing your terminal in service to avoid improper operation. It is highly recommended to read chapter ”Warnings, safety measures and ergonomics”. -
Page 5: Important Information
2. Important information 2.1. Warnings, safety measures and ergonomics When setting up the unit and before placing it in service, please make note of the information in chapter ”Mounting and requirements for the surrounding area”. • Transport the unit only in its original packaging or in a suitable packaging that ensures it is protected against bumps and impact. -
Page 6: Information On Care And Upkeep
• Clean with standard window cleansers. To prevent exposure to moisture, do not directly spray cleanser onto the device. Instead of this, wipe off the screen with a moist cloth. 2.3. Transportation Transport your friendlyway d-sign 12" in the original package only. -
Page 7: Mounting And Requirements For The Surrounding Area
3. Mounting and requirements for the surrounding area 3.1. Requirements for the surrounding area Your friendlyway d-sign 12" was specially developed for use in enclosed areas and has specific requirements for the surrounding area: • Permissible ambient temperature: 15 - 30°C •... -
Page 8: Connecting The Unit And Placing It In Service
4. Connecting the unit and placing it in service On the rear side of the device there is a PC cap screwed to the cover with bolts. By unscrewing the both bolts and replacing the cap you can get free access to PC ports/interfaces (LAN, ISDN, etc.). Cables are lead through a gap between the cap and the cover. -
Page 9: Variants And Accessories
5. Variants and accessories Your friendlyway d-sign terminal is offered as a basic model and in several variants. These variants differ in basic configuration of hardware and software aimed at specific application purpose. Additionally you can obtain extra accessories and combine within the constructional possibilities. Configuration of the device is performed at the factory after the order, and no later terminal upgrade can be performed as a rule. -
Page 10: Technical Specifications
7. Technical specifications Dimensions: 328 x 264 x 56 mm (H x W x D) Weight: ca. 5 kg. Housing: anodized aluminum Ambient temperature: permissible in the range 15 °C - 30 °C Standard equipment: 12“ LCD display PC: Pentium M 1,1 GHz, 512 MB RAM, Windows XP Professional REAR VIEW SIDE VIEW FRONT VIEW... -
Page 11: Warranty
8. Warranty We offer a guarantee on all systems for a period of 12 months. During this time, friendlyway customer support is available to you daily from 9 a.m. till 5 p.m. We will be happy to assist you with any questions and problems. - Page 12 NOTES...
-
Page 13: Declaration Of Conformity
(89/336/EEC) as modified by 91/263/EEC, 92/31/EEC, 93/68/EEC as well as 93/97/EEC and the low voltage regulation 73/23/EEC as modified by 93/68/EEC. This declaration is submitted by friendlyway AG Feringastr. 9 85774 München-Unterföhring The relevant tests were performed at accredited testing laboratories.
