12-Volt
Navigation Lights
All-Round Lights: 5940, 5980
Sidelights: 5040, 5045, 5080
Installation Instructions
SAVE THESE INSTRUCTIONS
Form Number 69379 Rev. B
03-10
FEATURES
The Attwood Pulsar Navigation Lights are designed for boats upto 39.6 ft.
(12 meters). They feature impact resistant, UV-stable polycarbonate
housings. The lens completely encloses the bulb and socket for a splash
resistant seal. Lights meet USCG CFR 183.810, ABYC A-16 requirements,
and all applicable standards as tested by Imanna Labs, March 1997.
5040, 5045, and 5080 are Sidelights with 1 Nautical Mile visibility. 5940
and 5980 are All-Round Lights with 2 Nautical Mile visibility. All use Lamp
9235, #906, 13V, 6 Candle Power.
REQUIRED FOR INSTALLATION
• Cordless drill with 1/8", 3/8", and 3/4" (3, 10, and 19mm) bits.
• Screwdriver.
• Two #8 or #10 stainless pan head screws per light.
• Non-silicone sealant.
WARNING:
To prevent personal injury, disconnect the power source when installing
or servicing this product. Always remove the boat from the water before
using 120V AC power tools.
LOCATION (All-Round Lights)
All-Round Lights must be mounted a minimum of 1 meter above the
sidelights, on a smooth surface where the 360° beam will not be obstructed.
Light must not shine on operator or on anything in operator’s field of view.
(Figure 1)
Important: Before drilling mounting holes, be sure that light shines within
5° of horizontal when the boat is floating.

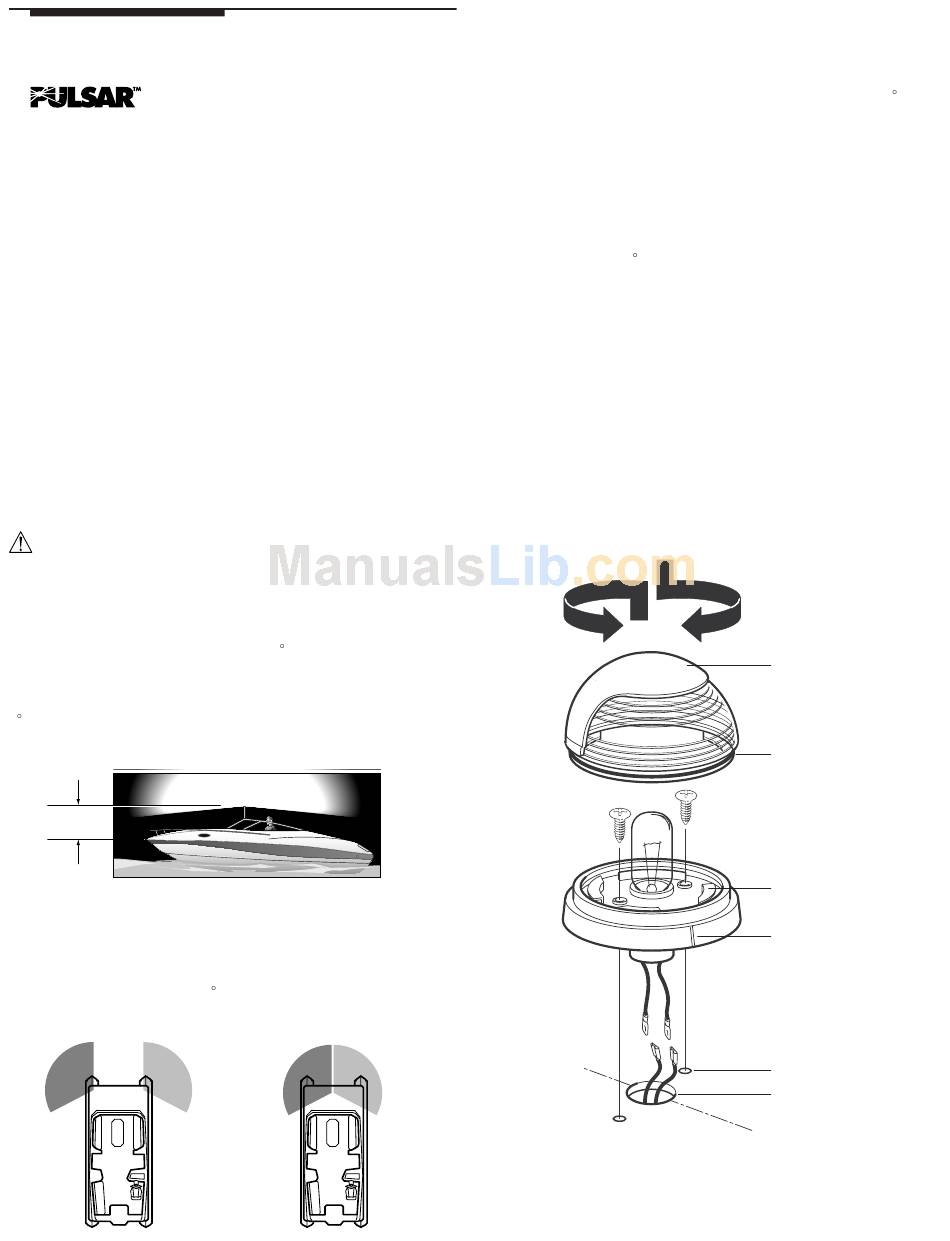

Figure 1
One meter
or 39-3/8"
LOCATION (Sidelights)
Mount sidelights to a smooth surface on the gunwale, deck or
superstructure where the light beam will not be obstructed. Position Bi-
Color combination light as far forward as possible. (Figure 2)
Important: Before drilling mounting holes, be sure sidelights shine straight
ahead and that they shine within 5° of horizontal when the boat is floating.
Figure 2
Red
Green
Red
Green
(Port)
(Starboard)
(Port)
(Starboard)
