Summary of Contents for ME DESIGN AVC-64

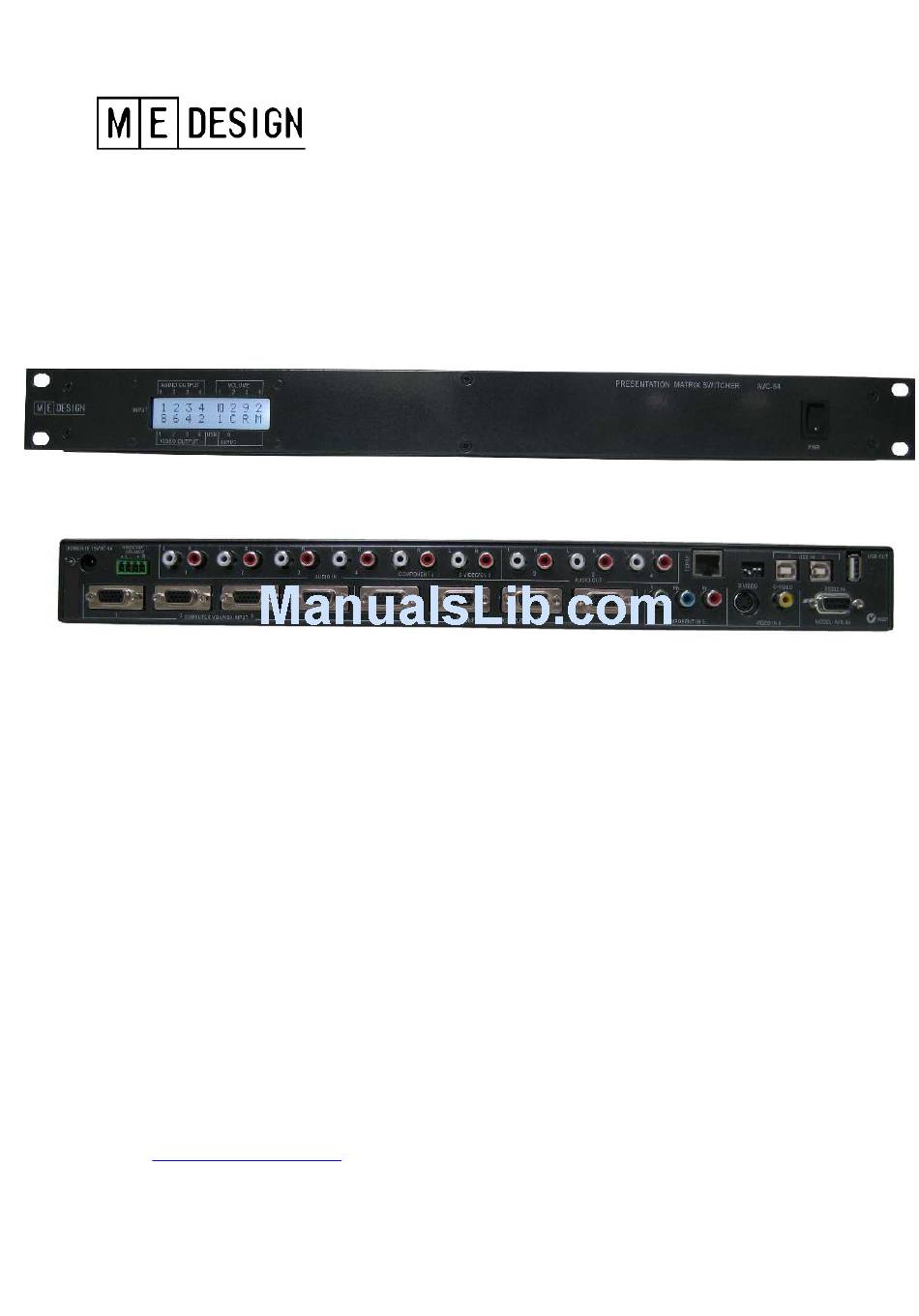

- Page 1 AVC-64 Presentation Matrix Switcher USER MANUAL Designed and Manufactured in Australia by M.E. Design (Aust) Pty Ltd Email: info@medesign.com.au www.medesign.com.au ABN 19 321 212 948...
- Page 2 M.E. Design (Aust) Pty Ltd TO PREVENT THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). USER SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Information to User Alteration or modification carried out without appropriate authorisation may invalidate the user’s right to operate the equipment.
-
Page 3: Table Of Contents
M.E. Design (Aust) Pty Ltd TABLE OF CONTENTS INTRODUCTION COMPONENT LIST FEATURES FRONT PANEL DESCRIPTION REAR PANEL DESCRIPTION PROTOCOL SET UP AND INSTRUCTION SET TCP/IP COMMUNICATION HEXADECIMAL-DB ATTENUATION CHART BLOCK DIAGRAM TYPICAL CONNECTION DIAGRAM SPECIFICATIONS... -
Page 4: Introduction
4 pin detachable connector for the amplified output (so that it may be connected straight to a set of front speakers), the AVC-64 unit is very capable at managing your audio needs. The USB switcher is software selectable and is suitable for classroom whiteboards and other peripheral devices. -
Page 5: Component List
M.E. Design (Aust) Pty Ltd COMPONENTS INCLUDED 1 x AVC-64 Switcher 1 x 15VDC 4.0Amp Power supply 1 x Figure 8 Power lead 1 x Support Manual (this document) Use included power supply only. Power supplies should only be replaced or repaired... -
Page 6: Features
M.E. Design (Aust) Pty Ltd FEATURES 3-in-1 switcher with inbuilt audio speaker amplifier: VGA switcher, transcodes composite and s-video signals to either component video or RGsB video for video projection, and a 2 x 1 USB switcher Video Inputs and Outputs: 6 x 4 video matrix switcher comprised of 4 VGA (or derivatives such as SVGA, UXGA, RGBS, RGsB, and RGBHV) inputs and 4 outputs via 15-pin HD female connectors (VGA/XGA, RGB 50Hz or Component), 1 component video (Y Pb Pr) input, and 1 S-Video (PAL, NTSC, or SECAM) input/1 Composite video (PAL, NTSC, or... -
Page 7: Front Panel Description
M.E. Design (Aust) Pty Ltd FRONT PANEL This controls the units power. POWER ON SEQUENCE At power on, the DIP Switch settings are loaded into the microprocessor. These settings, along with the Software version, are displayed momentarily on the LCD display for confirmation and ease of programming. After this, the standard display is shown. -
Page 8: Rear Panel Description
USB IN & OUT 4-PIN DIP SWITCH RS232 INPUT The AVC-64 features a 2 x 1 USB switcher. The inputs are available via female USB type (UP/DOWN) RS232 Input is to be connected to B connectors. The output is via a USB type A connector. -
Page 9: Protocol Set Up And Instruction Set
End byte in ASCII character } Instructions relating to audio and video switching, USB switching, and query on VGA input 4 cause the AVC-64 to return an acknowledgement ACK string. For volume adjustment instruction the AVC-64 returns the new volume level as a string. - Page 10 M.E. Design (Aust) Pty Ltd EXAMPLES Example, Audio Video switching {001243} Audio output 1 from audio input 2 Video output 4 from video input 3 Example, USB Switching {00U2} USB output from input 2 Example, Query VGA input 4 for signal present {00I} Returns {0} for no signal or {1} for signal present Example, Volume level change...
-
Page 11: Tcp/Ip Communication
Locate your SBL2e in the "Select a Unit" pane by matching its MAC address. The MAC address is located on the side of the AVC-64. If the SBL2e adapter does not appear in the list box, verify the power, speed, and link LEDs are illuminated, and click the Search Again button. If you are still unable to see the SBL2e adapter, remove power, correct any cabling errors, reapply power, and click the Search Again button. - Page 12 M.E. Design (Aust) Pty Ltd OPERATIONAL SETUP Once the network parameters are configured, you can use the web server interface or serial AT commands to modify the settings of the adapter. To access the web page, click on the Launch Webpage button in IP Setup, or open your web browser and enter the numeric IP Address in the address field (e.g.
-
Page 13: Hexadecimal-Db Attenuation Chart
M.E. Design (Aust) Pty Ltd Gain in dB vs. Input Code in Hexadecimal format -32.0 -64.0 31.5 -0.5 -32.5 -64.5 31.0 -1.0 -33.0 -65.0 30.5 -1.5 -33.5 -65.5 30.0 -2.0 -34.0 -66.0 29.5 -2.5 -34.5 -66.5 29.0 -3.0 -35.0 -67.0 28.5 -3.5 -35.5... -
Page 14: Block Diagram
M.E. Design (Aust) Pty Ltd... -
Page 15: Typical Connection Diagram
M.E. Design (Aust) Pty Ltd... -
Page 16: Specifications
M.E. Design (Aust) Pty Ltd SPECIFICATIONS VIDEO Gain Unity Bandwidth (VGA/XGA) 400MHz (-3dB) Bandwidth (Composite S-Video) 10Mhz Switching time <1ms Component video connections (VGA/XGA) 4 inputs via DB15 / 1 input via 3 x RCA / 4 outputs via DB15 Composite video connections 1 input via 1 x RCA S video connections...
