Summary of Contents for Wintal WDH11

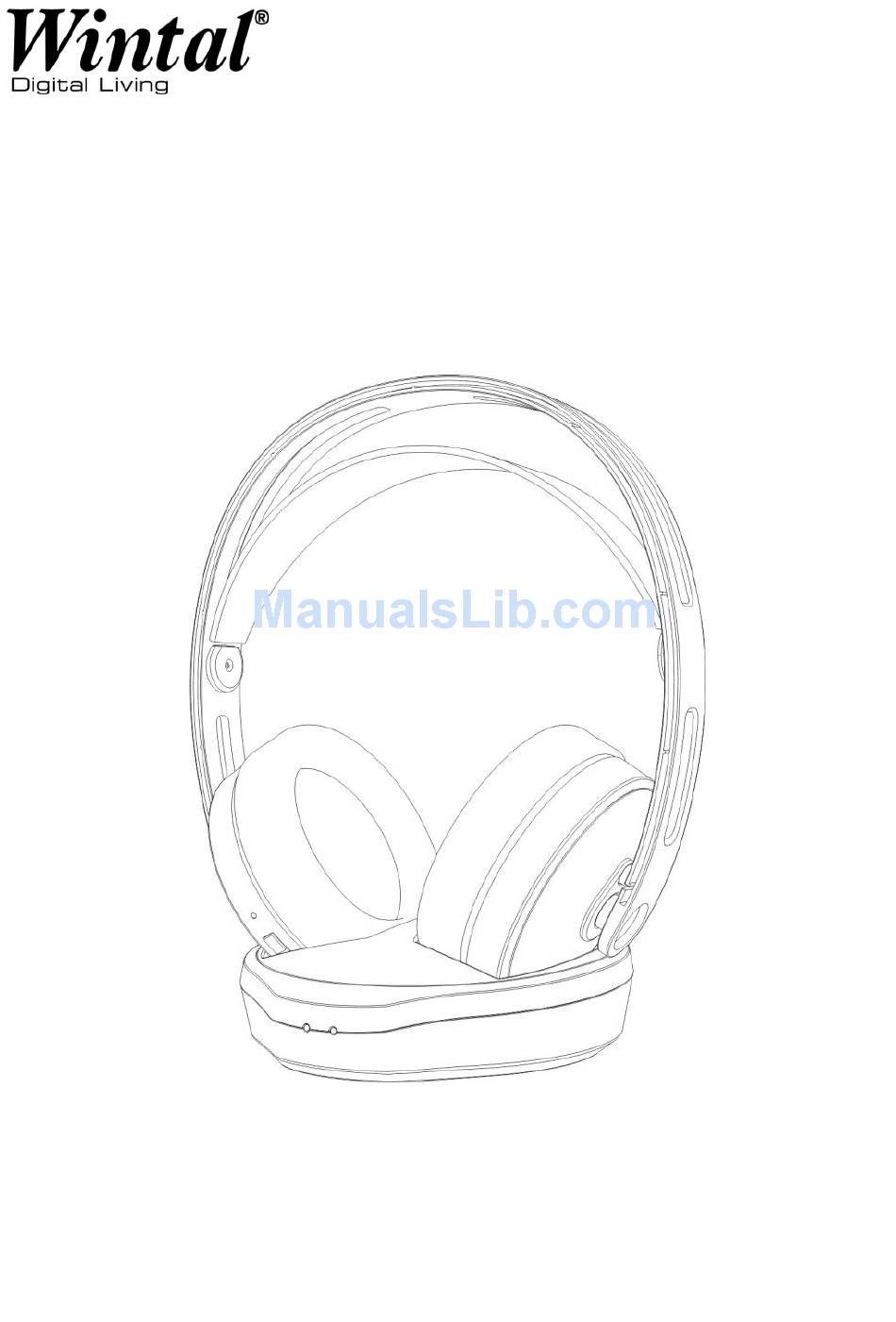

- Page 1 WDH11 2.4GHz Digital Wireless Headphone User Manual Please read before using this headphone.
- Page 2 INTRODUCTION This 2.4GHz Digital Wireless Headphone uses latest digital wireless technology that enables you to enjoy crystal sound stereo music and TV sound anywhere inside your home. Simply connect the transmitter to a desired audio source: DVD player, CD player, TV set, VCR, Hi-Fi system, or iPod. Without complicated wiring and installation, the system enables you to enjoy thrilling, lifelike sound in minutes.
-
Page 3: Component Part List
COMPONENT PART LIST Headphone Receiver 1. Signal link LED indicator 2. Volume Up(+) and Down(-) Control 3. Power LED indicator 4. ON/OFF Control 5. Charging contacts Transmitter 6. Power/Signal LED indicator 7. Charge LED indicator 8. Charging pins 9. Attenuation ( ATT) select switch (0dB and –8dB) 10. -
Page 4: Installation
12. RCA cable 13. NiMH AAA size batteries for Headphone (2 pieces) 14. AC/DC adaptor INSTALLATION TRANSMITTER Connect the supplied AC/DC power adaptor to an electrical wall outlet. Plug the AC/DC power adaptor in the DC jack located on the rear of the transmitter. The red Power/Audio Signal LED starts to flash for around 6 seconds. -
Page 5: Operation
Insert 2 pieces of AAA size rechargeable batteries (supplied in the package) into the battery compartment of headphone cabinet with correct polarity. Restore Ear Pad to the earphone cabinet, according to the indication of arrow marking ( ), after the batteries are inserted. OPERATION TRANSMITTER Turn on the audio source (TV or audio component) to which the transmitter is connected with. - Page 6 If interference or poor signal reception occurs when out of the operating distance range, the headphone will be muted with the green LED turned off. Move closer to the transmitter. When the batteries of headphone are at low level, the Power Red LED blinks. There will be a beeping sound in each minute for the last 5 minutes.
- Page 7 IMPORTANT Switching Off For protection of the transmitter and power saving, the transmitter will be switched off automatically if there is no audio source signal for approximately 3 minutes. If the audio source signal returns, the transmitter will be automatically switched on. Then, power on the headphone again.
-
Page 8: Troubleshooting
time. Ensure the charging socket located on the right earphone cabinet connects securely with the charge prongs on the transmitter cradle. According to the capacity of the rechargeable battery included, the battery charging process will take approximately 5 to 7 hours. This device must be used with the AC/DC adaptor supplied in the package. -
Page 9: Technical Specifications
Distortion Ensure the volume level of headphone is set to an approximate level. The headphone is too far from the transmitter, move it closer. The audio signal input level is too low. Increase the volume of the audio source. TECHNICAL SPECIFICATIONS Transmission Mode UHF Stereo Carrier Frequency...
