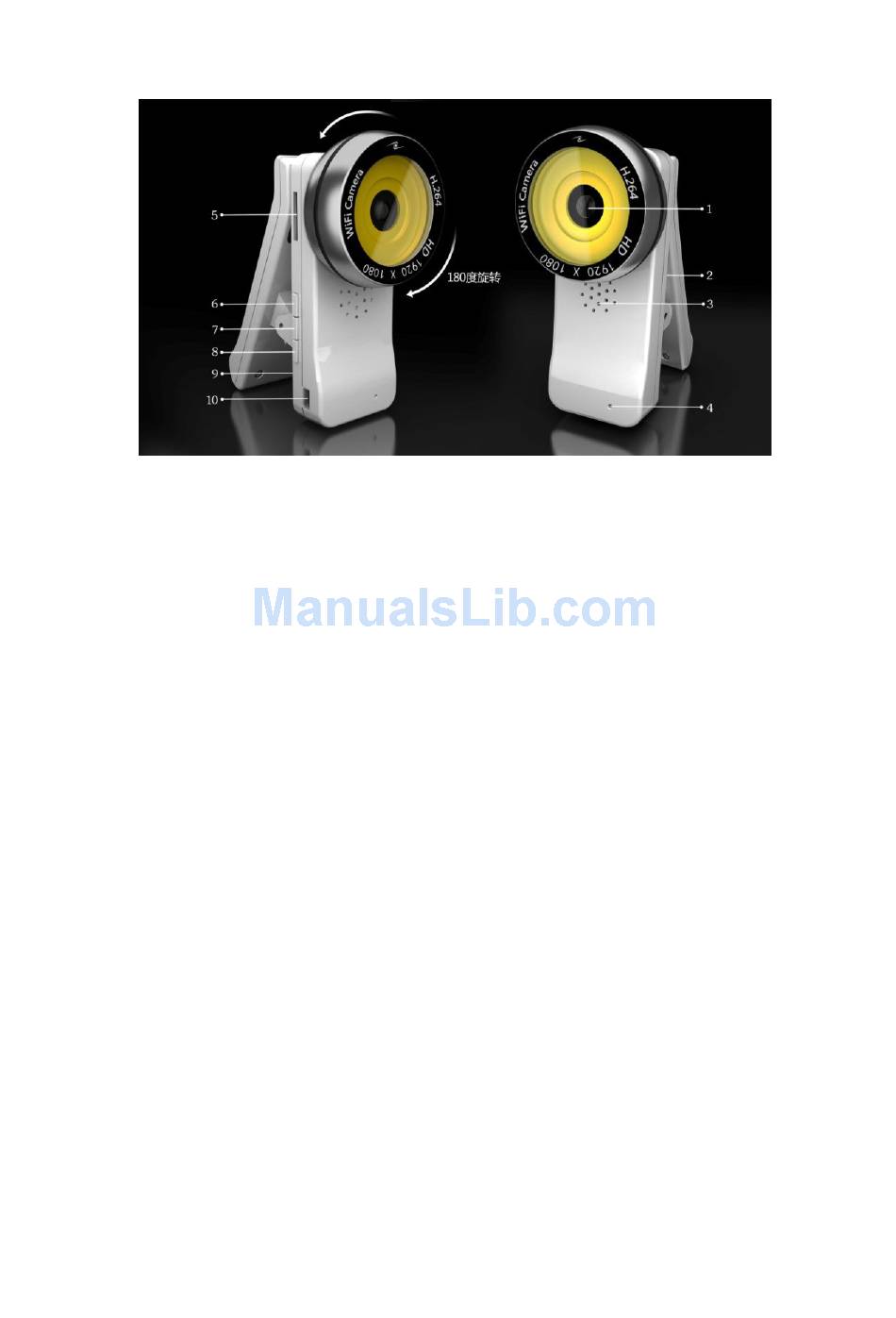

Video Camera Operation Manual
1. Camera
2. Indicator
Power switch 7. Recording 8. Reset
Indicators:
Red light on---Power switch on
Blue light on---Recording standby
Green light on---Mobile phone connection mode (AP mode)
Router connection mode (STA mode)
Green light flash--- (STA mode) Camera unconnected to the router
Camera Operation:
Press NO\OF button, the machine starts up when the red light is on, and the red, blue
and green light are all on after the system runs for 20 seconds (automatic recording will
begin while the blue light flashes at starting up when IF card is loaded). Press the
Recording key for 2 seconds to stop and save the recorded file when recording is going
on and blue light is always on. Press the recording key again for 2 seconds when
required. Red light is off when long pressing the power switch after starting up, and the
machine is off.
Long press Reset button until the green light keeps flashing, then release the button,
when the machine is abnormal due to inappropriate operation or other unknown reasons.
The machine is restored to factory settings and restarts. The camera enters mobilephone
connection mode (AP mode)
3. Ventilation hole
9. Ventilation hole
Red light off---Power switch off
Blue light flash---Recording on
4. Microphone 5. IF card
10. USB
Green
6.
light
off---
1
Advertisement
Table of Contents
Related Manuals for Sunsky S-NC-0054
Summary of Contents for Sunsky S-NC-0054
-
Page 1: Camera Operation
Video Camera Operation Manual 1. Camera 2. Indicator 3. Ventilation hole 4. Microphone 5. IF card Power switch 7. Recording 8. Reset 9. Ventilation hole 10. USB Indicators: Red light on---Power switch on Red light off---Power switch off Blue light on---Recording standby Blue light flash---Recording on Green light on---Mobile phone connection mode (AP mode) Green... - Page 2 For software downloading and troubleshooting, please visit WWW.QR-CAM.COM. Ⅰ. Installation of Mobilephone APP Software Android Client Apple Client As the software scanned and downloaded is a compressed file in rar format, and the mobilephone must be installed with Winrar. The QR code scanning and downloading is not available for Tencent-related browser.
- Page 3 Fig. 2 Fig. 3 Click the search icon on the top left corner, a black and blue item column appears and WLAN dialogue box popup as shown in Fig. 3, click “Cancel” to view the camera and enter the page in Fig. 4. Select “Yes” to enter “WIFI setting” page. Fig.
- Page 4 Fig. 6 Fig. 7 Fig. 8 The camera restarts. The green light is always off (indicating STA Mode) after 20 seconds, the camera has been connected with the router successfully. The user's mobilephone is also connected with the above wireless router. Return to the “Equipment List"...
- Page 5 own AV format player . The file recorded by the camera will require this AV player for playback. 3. View Camera in the LAN: Connect the camera with the router (STA Mode). Click the search icon at the lower right corner of the window, equipment IP address will appear in the unused equipment list.
- Page 6 Fig.10 2. Name of Camera: Click the icon on the rigth in Fig. 4 to enter Fig. 10. “Name" can be revised by the user. The revised name is the one shown in Fig. 4. The name will not be refreshed or replaced after is is revised. The user can not revise by himself “User Name”...
