Empire CIB3-3 Installation Instructions

LEAVE THIS MANUAL WITH THE OWNER FOR FUTURE REFERENCE.
CAUTION: Sharp edges, use protective gloves when
installing.

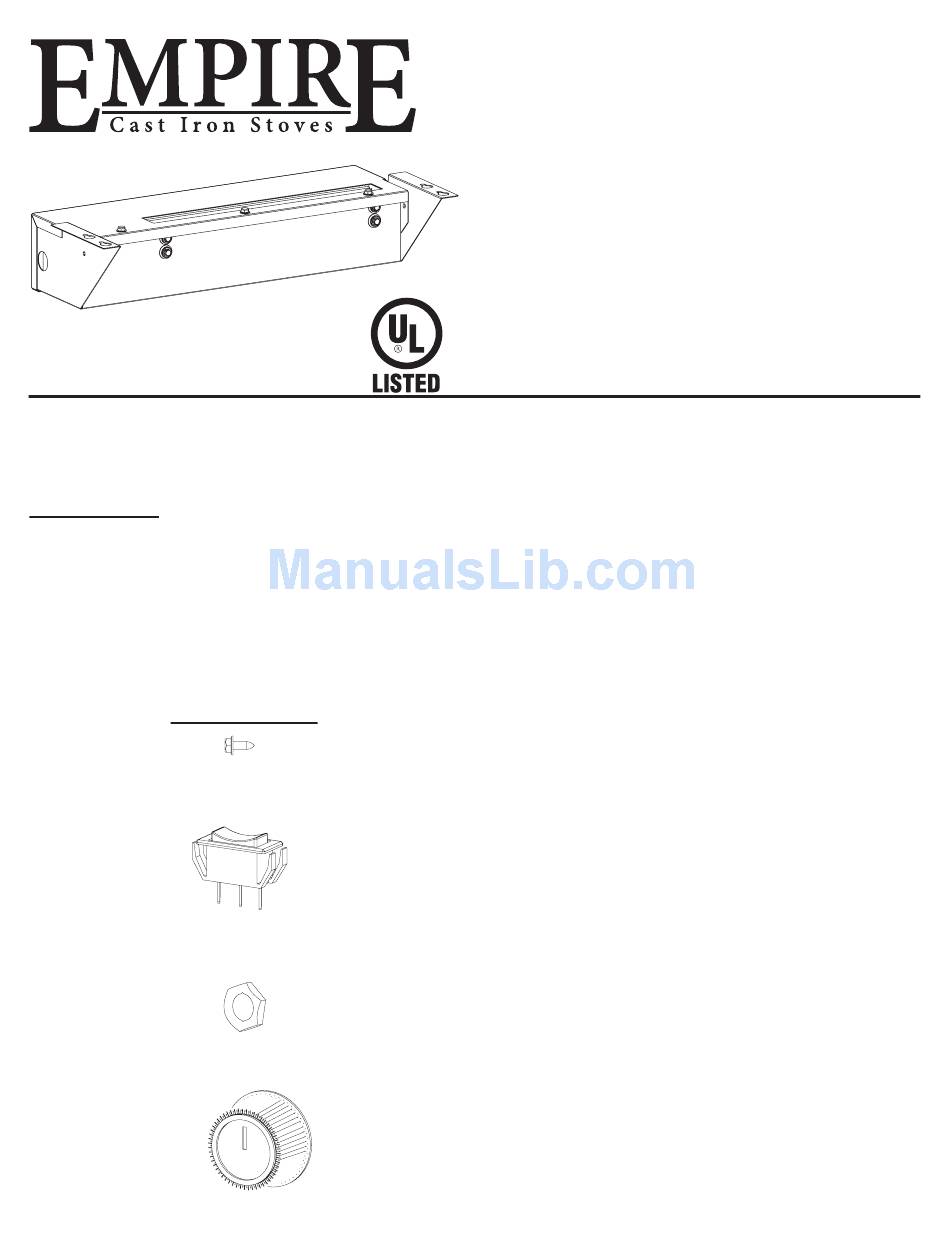

Carton Contents
Blower Assembly
Auto/On/Off Switch
Fan Control Bracket Assembly
Hardware Package
(2) 10 x 1/2" Screw
(1) On/Off/Auto Switch
(1) Rheostat Nut
(1) Knob, Rheostat
Hardware Package
#10 x 1/2" SCREW
AUTO/ON/OFF SWITCH
GAS-FIRED
NUT
KNOB
INSTALLATION
INSTRUCTIONS
CAST IRON BLOWER
CIB3-3
FOR USE ON:
EMPIRE CAST IRON STOVES
MODELS:
DVP30CA30(B,F,M,S,W)(N,P)
DVP30CC(30,70)(B,F,M,S,W)(N,P)
VFP30CA30(B,F,M,S,W)(N,P)
VFD30CC(30,70)(B,F,M,S,W)(N,P)
Installing Optional CIB3 Blower
1. Loosen, but do not remove, four hex-head screws located on
the exterior, bottom of the appliance.
2. Position the blower assembly at the rear of the appliance.
The blower assembly has four keyholes for attachment to the
exterior, bottom of the appliance.
3. Place the large diameter holes in the keyholes over and behind
the four hex-head screws that were loosened in Step 1. Push
inward on the blower assembly to lock the keyholes into position
behind the screws. Tighten four hex-head screws to secure
blower assembly to exterior, bottom of the appliance.
4. Remove wire channel-left from appliance by removing two
10 x 1/2" screws on left side of the appliance.
5. Route fan control wires through rectangular notch on wire
channel - left.
6. Attach 1/4" push-on terminal from blue wire on the fan control
to the AUTO (top) tab on the switch.
7. Attach 1/4" push-on terminal from black wire to the OFF (middle)
tab on the switch.
8. Attach 1/4" push-on terminal from white wire on the fan control
to the ON (bottom) tab on the switch.
9. Insert AUTO/OFF/ON switch into rectangular notch on wire
channel - left.
10. Install rheostat through hole in wire channel and align small
tab with small hole.
11. Use an 11/16" wrench to tighten rheostat nut on stationary
12. Push rheostat knob onto knob stem until fully seated.
13. Bend the fan control tab, located on the left side of the back
of the unit, inward toward the unit. See Figure 1. Be sure tab
is bent at least 90 degrees to allow fan control bracket to slide
into slot.
14. Attach fan control with bracket onto rear cover with
two (2) 10 x 1/2" screws provided in hardware package.
15. Route wires from fan control and ON/OFF/REMOTE switch
within wire channel.
16. Attach wire channel with two 10 x 1/2" screws from Step 4.
17. Installation of optional CIB3 blower is completed.
