Summary of Contents for Magic Frontier V4

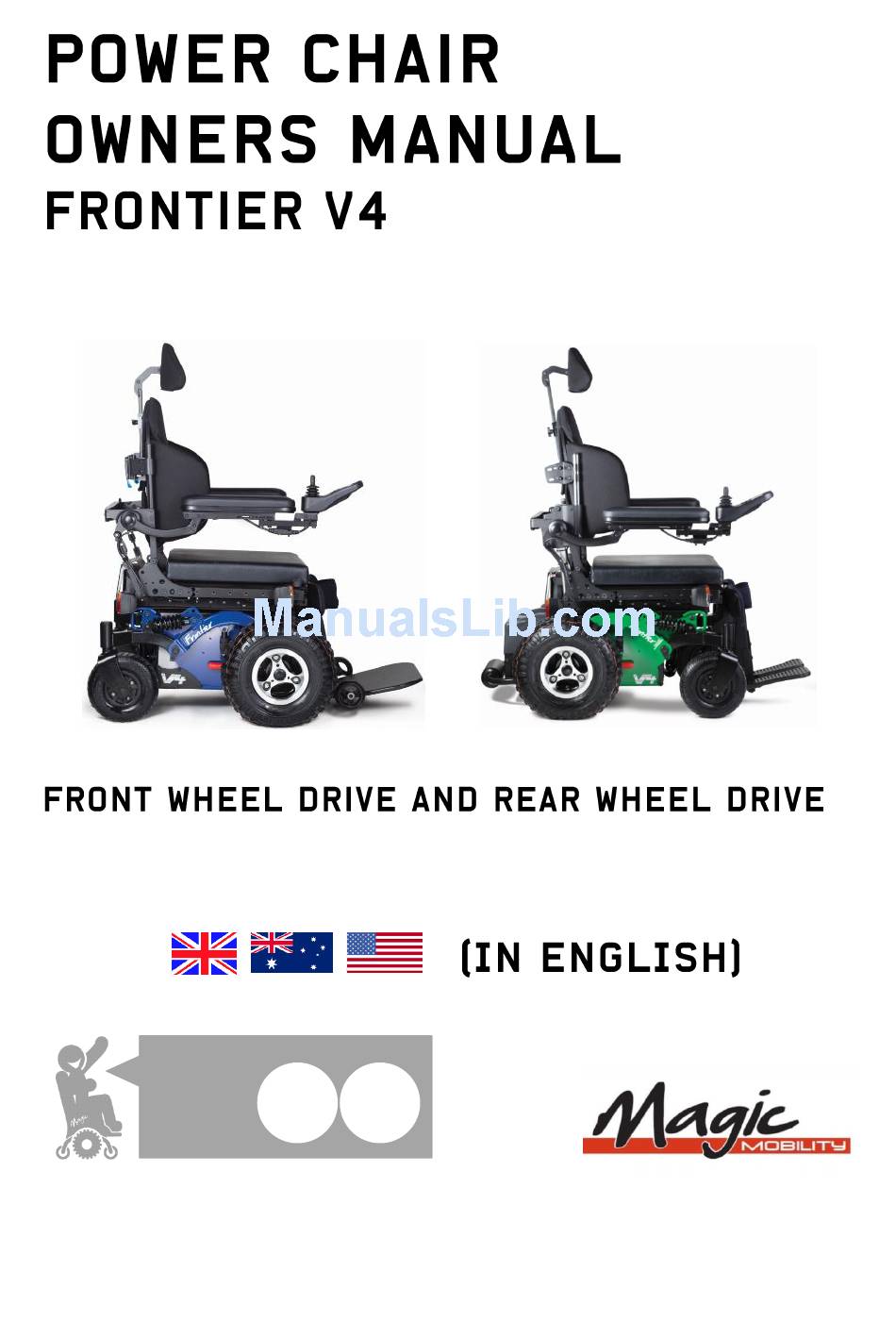

- Page 1 Join the Magic Mobility Facebook You Tube communities...
-
Page 2: Table Of Contents
3.16 Prescription Drugs/Physical Limitations ..................... 12 3.17 Alcohol/Smoking ............................12 3.18 Trapping Hazards ............................12 Specifications............................... 13 The Frontier V4 Front Wheel Drive ...................... 13 The Frontier V4 Rear Wheel Drive ...................... 14 Operating Instructions ..........................15 Performance adjustments ........................15 Positioning..............................15 Freewheel Mode –... - Page 3 43 Head Office and Operations ....................... 44 Appendix A – Vehicle Anchor Points ......................45 Appendix B – Electromagnetic Interference (EMI) ..................47 Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility Page 3 of 48...
-
Page 4: Important Warranty Information
Motors and brakes ONE YEAR WARRANTY The Magic Mobility wheelchair is under full warranty for the first twelve (12) months from the commencement date. This warranty does not detract from, but is in additional to your legal rights. WARRANTY EXCLUSIONS General wear and tear (tyres, batteries, upholstery, scratches, damage etc) Upon acceptance of goods at delivery the purchaser accepts the “Terms &... -
Page 5: Power Wheelchair Owner's Manual
155 kgs /340lbs and 182kgs/400lbs respectively. Magic Mobility is not liable for damage to property or personal injury arising out of unsafe use of a power chair. Magic Mobility is also not liable for any property damage or personal injury arising out of the failure of any person and/or user to following the instructions and recommendations set forth in this manual. -
Page 6: Safety And Damage Warnings
Magic Mobility Dealer before operating the wheelchair. Buying a Magic Mobility wheelchair opens up a whole new World and we are keen for you to explore new possibilities. However, we strongly recommend that when learning your driving capabilities, the capabilities of your wheelchairs and learning where potential hazards may be;... -
Page 7: Motor Vehicle Transport
The Department of Transportation has not approved any tie-down system for transportation of a user while in a wheelchair in a moving vehicle of any type. It is Magic Mobility’s position that users of wheelchairs should be transferred into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry. -
Page 8: Stairs And Escalators
STOP! Trying to negotiate stairs or escalators may result in damage to your power chair. Transportation Products for your wheelchair If it is necessary to use a transportation product such as a vehicle hoist or lift, Magic Mobility recommends that the manufacturer’s instructions and specifications are closely reviewed before using that product. - Page 9 Figure 2 - Frontier V4 FWD Correct and Incorrect Approaches to Obstacles Figure 3 – Frontier V4 RWD Correct and Incorrect Approaches to Obstacles Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility Page 9 of 48...
-
Page 10: Climbing Or Descending An Incline
Maximum Recommended Incline Most public access ramps have a maximum gradient 1 in 14 (AS1428.1). Therefore, Magic Mobility recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power chair does not exceed a 1 in 14 gradient. -
Page 11: Removable Parts
WARNING! Ensure your positioning belt is fastened securely and correctly. Serious personal injury may result if you fall from the power chair. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility... -
Page 12: Weather Precautions
Your power chair has numerous areas which may be trapping/pinching hazards. Always exercise caution when using your power functions and avoid putting body parts or objects into the mechanisms during operation. Serious personal injury will occur. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility... -
Page 13: Specifications
4 Specifications The Frontier V4 Front Wheel Drive A Frontier V4 Front Wheel Drive (FWD) power chair is depicted. This will help you identify some of the features referred to throughout this manual. Headrest Backrest Joystick Armrest Seat Seat Tilt /... -
Page 14: The Frontier V4 Rear Wheel Drive
The Frontier V4 Rear Wheel Drive A Frontier V4 Rear Wheel Drive (RWD) power chair is depicted. This will help you identify some of the features referred to throughout this manual. Headrest Backrest Joystick Armrest Seat Seat Tilt / Elevator... -
Page 15: Operating Instructions
Positioning If your power chair was configured at your Magic Mobility Dealer, please consult your health care professional before changing the seat position or making any other adjustment. Some adjustments may degrade your power chair’s performance and safety by changing its centre of gravity. -
Page 16: Electrical Safety Protection
Your wheelchair has a fuse fitted into the battery circuit to protect the motors and electronics from an accidental current overload. In the case of a blown fuse, the chair will not drive and you will need to contact your Magic Mobility dealer for repair / replacement Seat Tilt Option – if fitted To operate the seat tilt: ... -
Page 17: Slope Sensor (Inclinometer) - If Fitted
Drive the recline function forwards until it stops in the home position; If your chair is still inhibited, refer to the Common Troubleshooting section and follow instructions for your particular Joystick Module. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility Page 17 of 48... -
Page 18: Joystick Controls
Controller program The controller program affects speed, acceleration, deceleration, and braking. The drive mode settings are pre-set at the factory. If your Magic Mobility Dealer changes these settings, please make note of these changes. WARNING! Do not attempt to reprogram your chair. Only the power chair manufacturer, an authorised representative of the manufacturer, or a trained service technician should program the controller. -
Page 19: Precautions For Use
For contact information please visit www.pgdt.com Magic Mobility accepts no liability for losses of any kind arising from unexpected stopping of the wheelchair or improper programming of the control system, improper use of the wheelchair, improper use of the control system or if any of the criteria detailed in this document are not met. -
Page 20: Lcd Joystick Module
This controls the speed and direction of the wheelchair. Push the joystick in the direction you wish to go. The further you push it, the faster the speed. Releasing the joystick stops the wheelchair and automatically applies the brakes. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility... -
Page 21: Control Panel
Buddy Button. The Joystick Module is supplied with rubber bungs which must be inserted into the Jack Sockets when no external device is connected. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility... -
Page 22: Lcd Screen Control System Indication
If the wheelchair is being inhibited from driving (for example, by using transfer tilt), this red symbol will be flashing. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility... - Page 23 Joystick or with a physical Key. Refer to 6.9.5 Locking the Control System for a detailed description of the Locking and Unlocking procedures. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility...
-
Page 24: Diagnostics And Trouble Shooting
Diagnostics should only be conducted by authorised service agents with in-depth knowledge of PGDT electronic control systems. An incorrect or badly effected repair could result in an unsafe set-up of a wheelchair. Magic Mobility accepts no liability for losses of any kind arising from an incorrect or badly effected repair. -
Page 25: Common Troubleshooting
Check all cables and connections for continuity and any possible pinch points If there is any visible damage to cables, replace and cycle power. Contact your service agent to replace. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility Page 25 of 48... -
Page 26: Basic Programming And Set-Up
Profiles. Choose ‘Auto’ for a background which is blue for slower indoor profiles and white for faster outdoor profiles. Exit Exits the Settings Menu back to normal operation. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility Page 26 of 48... -
Page 27: Led Joystick Module
This controls the speed and direction of the wheelchair. Push the joystick in the direction you wish to go. The further you push it, the faster the speed. Releasing the joystick stops the wheelchair and automatically applies the brakes. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility... -
Page 28: Control Panel
Speeds 2 and 4 Flash When the control system requires a reboot; for example, after a module re-configuration, the second and fourth speed indicator LEDs will flash. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility Page 28 of 48... -
Page 29: Common Troubleshooting
Check the actuator wiring. *If Motor Swap has been enabled, then left and right hand references will need transposing. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility Page 29 of 48... -
Page 30: Locking The Control System
With the control system switched off, check that the joystick is not bent or damaged and that it returns to centre when you release it. If there is a problem do not use your wheelchair and contact your service agent. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility... -
Page 31: Weekly Checks
Check visually only, do not handle the gaiter. Mounting: Make sure the controller is securely fixed to your wheelchair. Do not over tighten any screws. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility Page 31 of 48... -
Page 32: Batteries & Charging
Battery Charging We recommend using only a high quality intelligent battery charger that is compatible with your power chair’s batteries. Only use the supplied off-board charger unless otherwise approved by Magic Mobility. Do not use an automotive-type battery charge. The charger will not operate after the batteries have been discharged to an extremely low voltage. If this happens, call your Magic Mobility Dealer for assistance. -
Page 33: Charging Procedure
Do not operate the control system if the battery is nearly discharged. Failure to comply with this condition may leave the user stranded in an unsafe position, such as in the middle of a road. Magic Mobility accepts no liability for losses of any kind arising from failure to comply with this condition. -
Page 34: Public Transportation
If your battery gauge reading seems to fall more quickly than usual, your batteries may be worn out. When you replace worn out batteries, fit the type recommended by Magic Mobility. If you use another type, the battery gauge may be inaccurate. -
Page 35: Care & Maintenance
(see 9 Servicing). With appropriate care, your power chair should give you many years of operation. STOP! Do not use parts, accessories, or adapters other than those authorised by Magic Mobility. This may void your warranty and cause damage to your power chair. General Guidelines Avoid exposing your power chair to any type of moisture where possible (rain, snow, mist, salt water, or wash). -
Page 36: Frontier Tyre Inflation
2.50-4 Castors 36 psi 36 psi Pneumatic (248kPa) (All terrain and Hybrid) 248 kPa User Weight (kg) Advisory Tyre Pressures for user weight (Metric) Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility Page 36 of 48... -
Page 37: Tyre Puncture Repair
If you have the Magic Mobility knobby wheel Puncture Resistant Kit (tyre liner + slime), you are less likely to experience a puncture. If you do not yet have this kit, you can contact your Magic Mobility Dealer to have the kit fitted to your current wheels. When the time comes, the kit can be switched into your new tyres. -
Page 38: Tyre Wear
If is it not practical to perform the above steps, products that neutralise rust and prevent it from spreading can be used such as the many commercially available ‘rust converter’ products. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 ©... -
Page 39: Beach, Salt Water And Coastal Areas
Storage Store your Magic Mobility power chair in a warm dry environment. If you do not use your power chair regularly, it is recommended that the batteries be charged at least once per week. -
Page 40: Transportation
Dealer for repair. 8.11 Annual Checks It is highly recommended to service your power chair annually. Take your power chair to your Magic Mobility Dealer to ensure it is functioning correctly (see Servicing 9) Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2... -
Page 41: Servicing
STOP! If non-certified individuals perform any work on these units, the warranty is void and damage to the equipment could occur. Do not modify, or have your power chair modified in any way not authorised by Magic Mobility. Unauthorised changes constitute remanufacturing of the wheelchair. The person or group who make the changes will have full liability of the wheelchair under the Therapeutic Goods Act (TGA). -
Page 42: Technical Specifications
Freewheel Mode Tyres Varies by model – see website Magic Mobility is not able to provide technical specifications for non-Magic Mobility parts, nor can we guarantee performance according to the table above. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 ©... -
Page 43: Non Oem Parts
Magic Mobility cannot guarantee their compatibility. In the instance where non Magic parts are fitted, then they are fitted at your own risk/risk of the final person who assembles the wheelchair. In the instance where parts are assembled by a third party agent, they take the responsibility of being the manufacturer. -
Page 44: Head Office And Operations
Noble Park, Vic. 3174 Australia Phone: +61 3 8791 5600 Fax: +61 3 9701 0144 Email Address: admin@magicmobility.com.au Website: http://www.magicmobility.com.au © Copyright Magic Mobility 2014 Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility Page 44 of 48... -
Page 45: Appendix A - Vehicle Anchor Points
Appendix A – Vehicle Anchor Points The wheelchair is not provided with a wheelchair anchored belt restraint as standard. It must be requested at the time of ordering the wheelchair or it can be retrofitted later on by a Magic Mobility Representative. - Page 46 Front Tie Down Figure 9 - V4 RWD tie down locations There are four wheelchair securement points; two at the front and two at the rear. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility Page 46 of 48...
-
Page 47: Appendix B - Electromagnetic Interference (Emi)
(HAM) transmitters, two way radios and cellular phones can affect powered wheelchairs. Following the warnings listed below should reduce the chance of unintended brake release or powered wheelchair movement which could result in serious injury. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility... -
Page 48: Magic Mobility
United States of America (ONLY) Caution: Federal law restricts this device to sale by or on the order of a practitioner licensed by the law of the State in which he/she practices. Form 07D –Frontier V4 Owner’s Manual ENGLISH.docx Revision No.2 © Magic Mobility...
