Summary of Contents for Aircalo ARMAGNAC

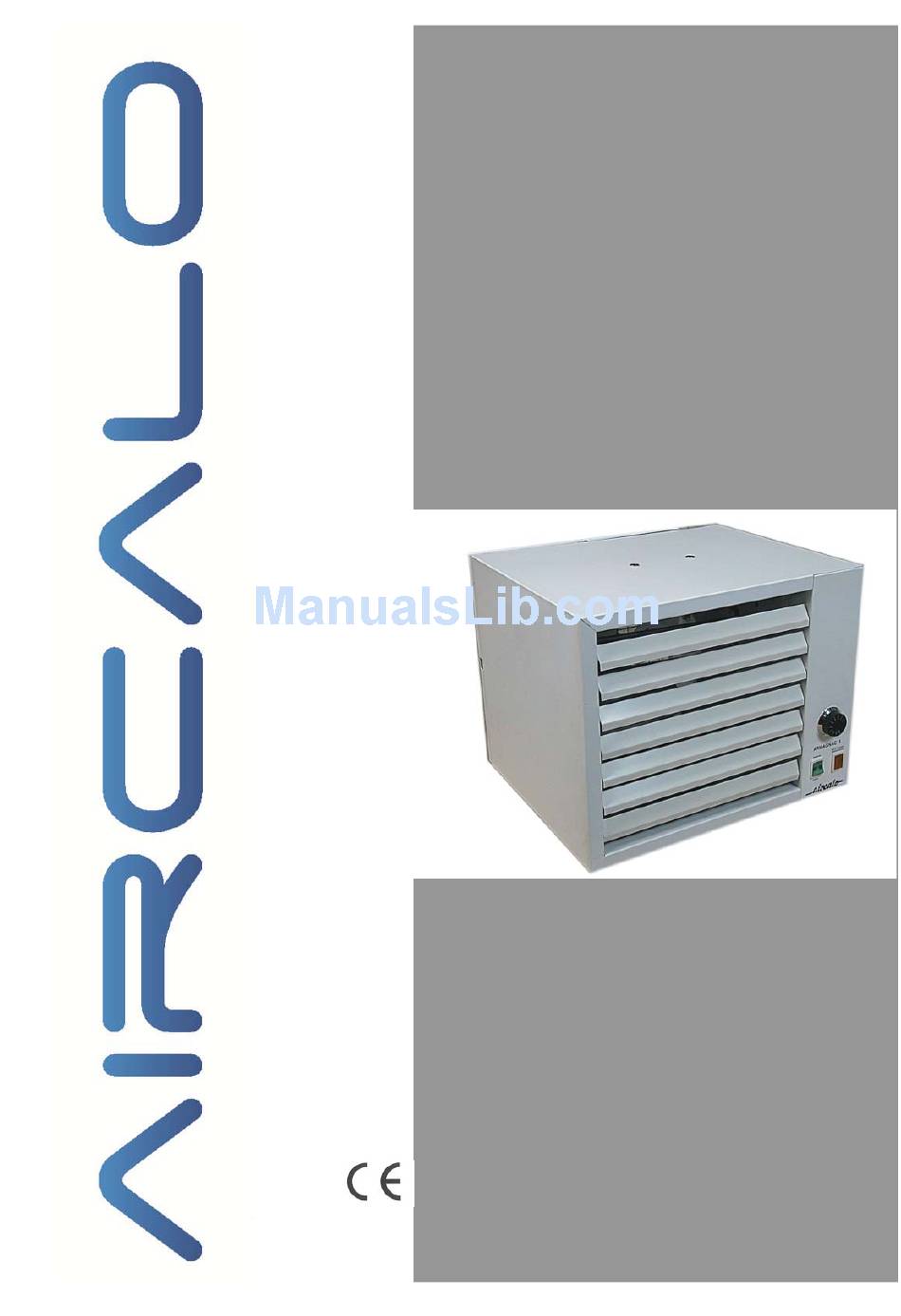

- Page 1 INSTRUCTION OPERATING MANUAL ELECTRICAL HEATER « ARMAGNAC »...
-
Page 2: Table Of Contents
SUMMARY Section Page GENERAL RECOMMENDATIONS INSTALLATION PRESENTATION SPARE PARTS ELECTRICAL CONNECTION OPERATION WALL BRACKET WARRANTY SPARE LIST DIMENSIONS PERFORMANCES... -
Page 3: Installation
• Do not set the unit near source of heat able to damage it. the device that would have not be specified in the order. • Regarding Armagnac electrical heaters facilities located in buildings with a fire sprinkler network, it is up to the installer ... -
Page 4: Presentation
Electrical heaters « ARMAGNAC » are delivered ready for installation with a 3 phases 400V power supply (For single phase 230V power supply an order for special unit must be placed). As standard supply, these units are delivered with : Single phase fan motor 230V –... -
Page 5: Operation
Switch « ON » and then fit the temperature with the button on the front board. The electrical heater will then self-operate. ARMAGNAC 1 - 2 paces and ARMAGNAC 2 : Switch « ON » and then fit the temperature with the button on the front board. The electrical heater will then self-operate;... - Page 6 WIRING DIAGRAMS ARMAGNAC 1...
- Page 7 ARMAGNAC 2 On / Off switch + light Automatic thermostat On / Off 2 paces switch + light Timer thermostat...
-
Page 8: Spare List
SPARES LIST Taille 1 Taille 2 Power relay CON116 CON116 CON116 CON116 CON116 CON116 CON116 Fan motor MOV801 MOV801 MOV801 MNC30 + fan 330 Fan motor MOV802 MOV802 MOV802 MOV802 MAC30 + fan 350 ON/OFF switch INT002 INT002 INT002 INT002 INT002 INT002 INT002...
