Summary of Contents for ME-Geithain rl906

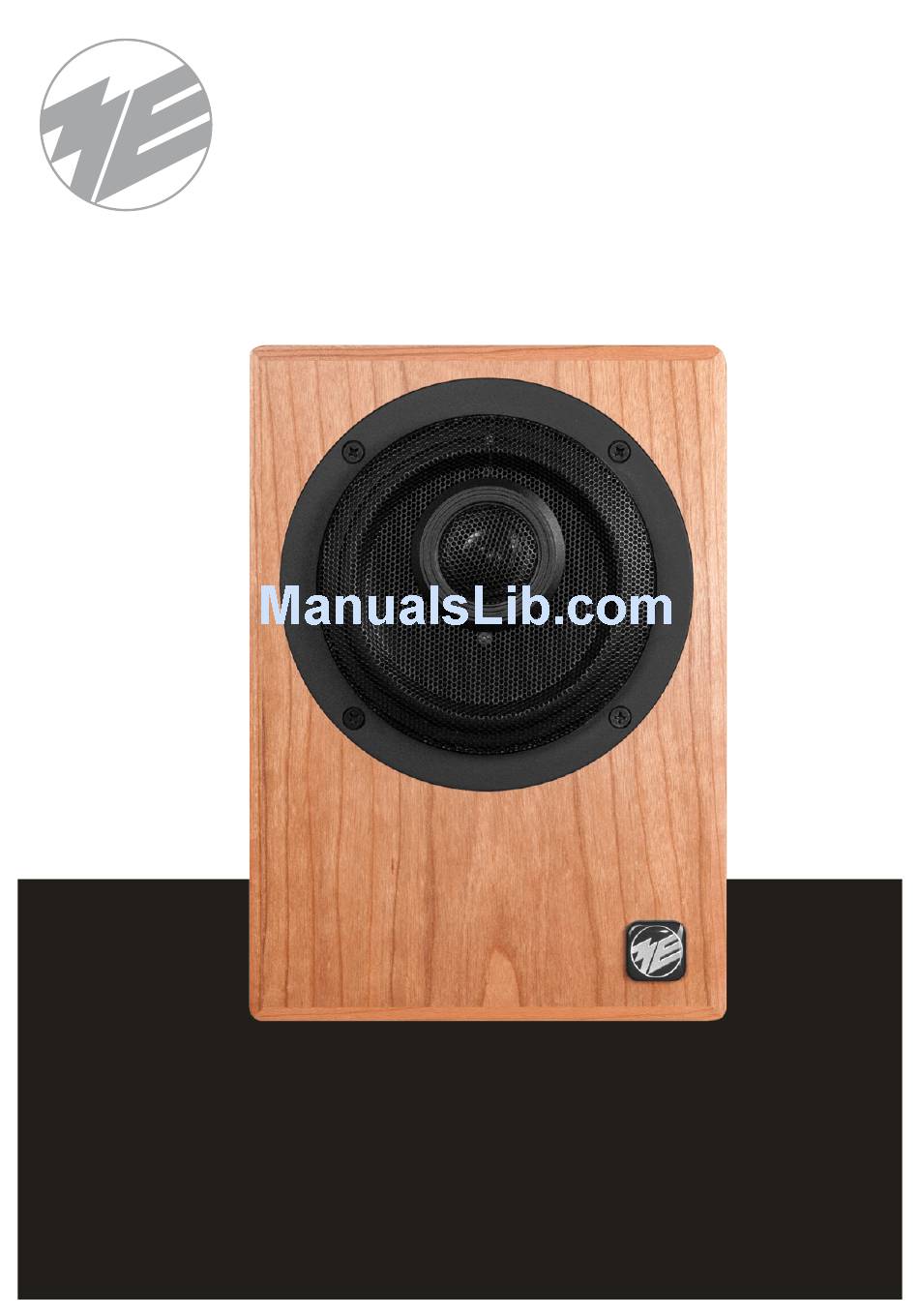

- Page 1 musikelectronic geithain RL 906 Instructions for installation and use...
-
Page 2: Table Of Contents
Basic information Guidelines Safety instructions Unboxing Delivery contents Cleaning Environmental conditions Guarantee acknowledgements Positioning Positioning near walls Stereo operation Surround operation Connecting the speakers Mains connection Cable connection Status indication Adjustment controller Specifications Acoustic measurements Notes musikelectronic geithain GmbH RL906... -
Page 3: Introduction
Thank you for your trust you have put in us by buying these speakers. You decided upon a quality product that in regard to tonal and technical characteristics complies to the utmost expectations. The usual burn-in period is not required, because the speakers are artificially aged in-house. Please read the technical description and manual to take advantage of the capabilities of these speakers and ensure safe operation. musikelectronic geithain GmbH RL906... -
Page 4: System Description
XLR-type input with an adjustable input level. To compensate their placement, the speaker features three controllers to continuously adjust the high- and low-frequency response and also the frequencies around 300 Hz. These controllers are attached to the cabinet’s backside. A two-coloured LED indicates the state of the amplifier and warns of clipping. A variety of special stands and racks is available as accessories. According fixing elements have been integrated into the loudspeaker cabinet. musikelectronic geithain GmbH RL906... -
Page 5: Basic Information
Ensure sufficient air ventilation when installing the device in a shelf or wall. Do not try to insert anything into device openings. The device shall not be exposed to dripping or splashing and no objects filled with liquids shall be placed on the device. There is risk of electric shock when the device is open. Refer all servicing to qualified service personnel. Clean only with dry or slightly moistened cloth. musikelectronic geithain GmbH RL906... -
Page 6: Unboxing
+ 15°C ... + 35°C Storage temperature range - 25°C ... + 45°C Relative humidity 45 % ... 75 % Guarantee acknowledgements Opening the device by unauthorised personnel leads to all claims under guarantee expire. In case of destruction by overload, misuse or outside influences there are no claims under guarantee. musikelectronic geithain GmbH RL906... -
Page 7: Positioning
For optimum listening experience a minimum distance of 50 cm (20’’) to walls and furniture should be ensured. Avoid corner installations because unwanted bass accentuation could arise. Minimum distance to wall b ≥ 50 cm (20”) musikelectronic geithain GmbH RL906... -
Page 8: Stereo Operation
For precise, spacial reproduction turn the speakers inside, directed to the hearing zone. 60° hearing zone Distance between speakers and your listening position a = 1 … 2.6 m (3.3 … 8.6 ft) Adjust the speaker horizontally to the height of the ear at the listening position musikelectronic geithain GmbH RL906... -
Page 9: Surround Operation
The angle between center and rear speakers should be about 110° - 120°. 110° ... 120° 60° hearing zone Distance between speakers and your listening position a = 1 … 2.6 m (3.3 … 8.6 ft) musikelectronic geithain GmbH RL906... -
Page 10: Connecting The Speakers
When using a signal source with unbalanced outputs (RCA) you need to balance the connecting cables. This avoids hum and other noise interferences. The table and the following figure show the wiring. Unbalanced RCA to balanced XLR Connections Loudspeaker (XLR-3M) Cable Source (RCA) To carry the signal connect the XLR socket of the speaker to your signal source. musikelectronic geithain GmbH RL906... -
Page 11: Status Indication
LED red indicates the operation of the overload protection circuit; Output power limitation to protect the components from overloading Adjustment controller The “Level” controller is used for level adjustment over the full frequency range. musikelectronic geithain GmbH RL906... -
Page 12: Specifications
255 x 180 x 200 mm (10 x 7.1 x 7.9 inch) Weight 5.5 kg (12.1 lbs) Design of the cabinet MDF wood in ash black veneered; optional other veneers or colours with holding device; optional without holding device musikelectronic geithain GmbH RL906... -
Page 13: Acoustic Measurements
ACOUSTIC MEASUREMENTS Acoustic measurements All acoustic measurements are carried out under anechoic conditions with 1 m (3.3 ft) distance. [dB] [Hz] FREE FIELD FREQUENCY RESPONSE 0° 45°h [Hz] TOTAL HARMONIC DISTORTIONS P = 83 dB musikelectronic geithain GmbH RL906... -
Page 14: Notes
NOTES Notes musikelectronic geithain GmbH RL906... - Page 15 NOTES musikelectronic geithain GmbH RL906...
- Page 16 BDARL906V2150701EN musikelectronic geithain gmbh STUDIOTECHNIK - HIGHENDTECHNIK - BESCHALLUNGSTECHNIK Nikolaistraße 7 04643 Geithain / Germany Tel: +49 (0) 34341 3110 Fax: +49 (0) 34341 31144 E-Mail: info@me-geithain.de www.me-geithain.de...
