Summary of Contents for MATOTOYS MA-1010

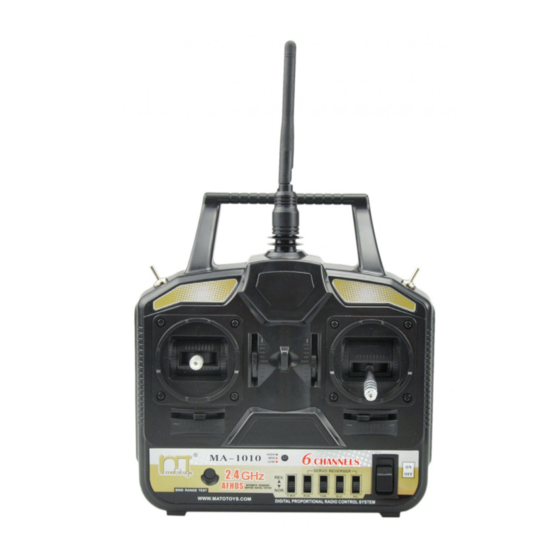

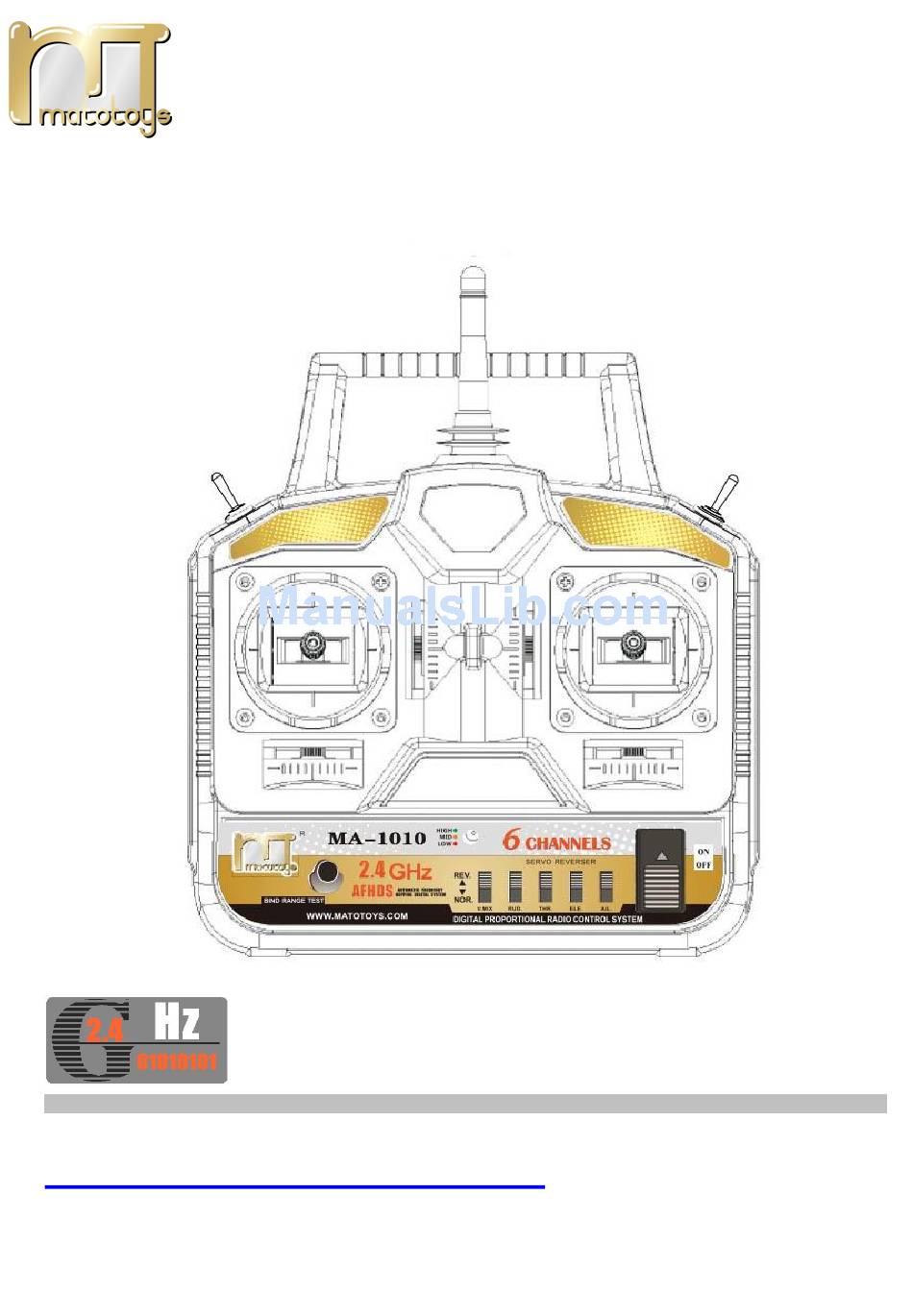

- Page 1 INSTRUCTION MANUAL MODEL: MA-1010 Digital proportional radio control system HTTP://WWW.MATOTOYS.COM...
-
Page 2: Table Of Contents
Menu 1. Introduction ........................- 2 - 2. Services ........................... - 2 - 3. The special symbols ....................... - 3 - 4. Safty guides ........................- 3 - 5. Battery charging notes ....................- 4 - 6. Transmitter parameters....................- 5 - 7. -
Page 3: Introduction
1. Introduction Thank you for choosing 2.4G ratio remote control digital products, if you are the first time to use this type of products, please read this statement carefully and strictly in accordance with the requirements of operation. You could refer to the manual if you meet any problems during the operation. -
Page 4: The Special Symbols
3. The special symbols Please pay attention to the following symbols when they appear on the manual, and read carefully. Danger: If the operator does not operate by following the instructions, the operator may lead to serious injuries, even mortal danger. Warning: If the operator does not operate by following the instructions, the operator may lead to serious injuries, even mortal danger. -
Page 5: Battery Charging Notes
5. Battery charging notes If your transmitter, receiver using the nickel-cadmium or nickel-metal hydride rechargeable battery, you must well-check before starting. If power shortage, it may cause inadequate control, out of control, accident or others. So please charge your battery immediately. If you are using the nickel-cadmium or nickel-metal hydride battery for recharging, please use our company dedicated charger. -
Page 6: Transmitter Parameters
6. Transmitter parameters Channels：6 channels Model type：tank/ helicopter / glider/ airplane RF range：2.40-2.48GHz Bandwidth：500Hz Band：160 RF power：less than 20DBm 2.4G system：AFHDS Code type：GFSK Senditivity：1024 Low voltage warning：yes (less than 9V) DSC port：yes(PS2；output：PPM) Charger port：yes Power：12V DC(1.5V AA battery * 8pcs) Weight：510g ANT length：26mm Size：180*220*70mm... -
Page 7: Each Part Of The Transmitter
8. Each part of the transmitter - 6 -... -
Page 8: Receiver And Server Connectivity
9. Receiver and server connectivity - 7 -... -
Page 9: Operation Notes
10. 2.4G operation notes This is 2.4G frequency model product make of automatic address code. It uses digital transmission mode and this prevents outside interference effective active and passive. 10.01 Matching code Our products are well-matched in the factory, you do not need to match by yourself. But if you are going to match the receiver with other transmitter, please follow the following steps: 1. -
Page 10: Shut Down
10.03 Shut down 1. Cut off the receiver power supply. 2. Cut off the transmitter power supply. - 9 -... -
Page 11: Functional Description
11. Functional description 11.01 1 Channel control This channel is for aileron control. Left Right If you move the transmitter stick to the left, the airplane will inclined to the left and the airplane move left.（Figure 1） If you move the transmitter stick to the right, the airplane will inclined to the right and the airplane move right.（Figure 2）... -
Page 12: Channel Control
11.03 2 Channel control This channel is use for forward and backward control. Down If you move the transmitter stick upward, the airplane will move forward.（Figure 1） If you move the transmitter stick downward, the airplane will move backward.（Figure 2） 11.04 4 Channel control This channel is use for left and right turning control. - Page 13 HTTP://WWW.MATOTOYS.COM - 12 -...
